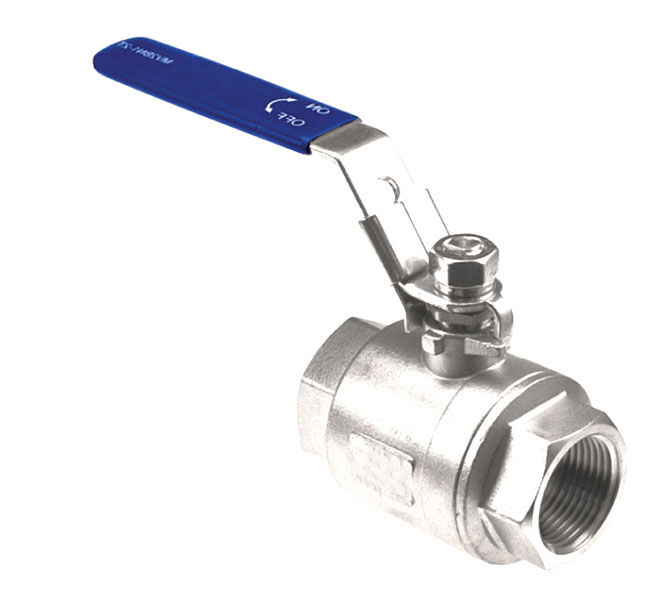

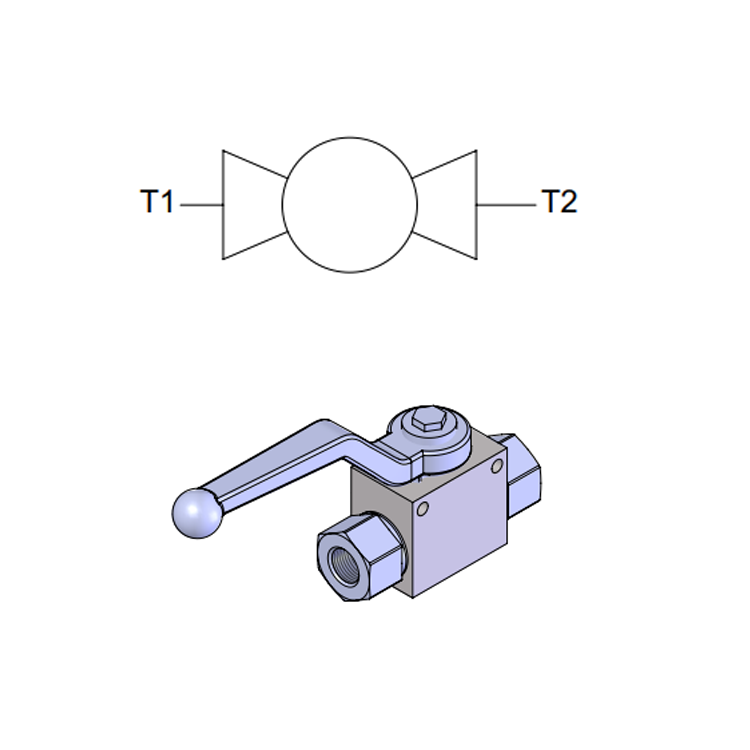

2-Way BSPP Ball Valve
A robust, straight-through ball valve built for reliable on/off control in hydraulic lines. Zinc-plated steel construction with NBR seals as standard, and is available in seven BSPP port sizes from ¼" through to 1½".
Key Specifications:
- Fluid temperature range: -20°C to +90°C
- Ambient temperature range: -20°C to +50°C
- Standard seals: NBR
- External finish: Zinc-plated steel
- Fluid viscosity standard: ISO 3448
- Filtration standard: ISO 4406
Available Port Sizes & Pressure Ratings
- 1/4" BSPP (DN6) — 500 bar max. | 0.4 kg
- 3/8" BSPP (DN10) — 500 bar max. | 0.5 kg
- 1/2" BSPP (DN13) — 500 bar max. | 0.6 kg
- 3/4" BSPP (DN20) — 420 bar max. | 1.4 kg
- 1" BSPP (DN25) — 420 bar max. | 2.2 kg
- 1"1/4 BSPP (DN25) — 420 bar max. | 2.3 kg
- 1"1/2 BSPP (DN25) — 420 bar max. | 2.4 kg
