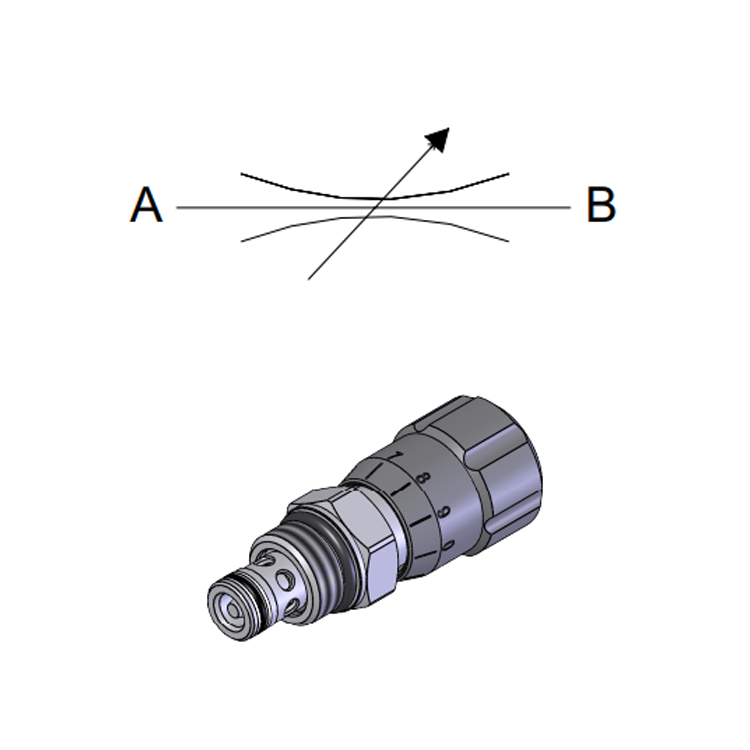

Adjustable Needle Bidirectional Valve
Compact cartridge-style bidirectional throttle valve designed for manifold or valve-block integration. It provides stepless flow adjustment in both directions — useful for fine speed control of small actuators and pilot circuits where a direct-mounted valve body is not practical.
Available with either knob or screw adjustment, and a locking screw to secure the selected setting. The cartridge cavity code is DO-590.001.51.2S.
Key Specifications
- Type: Cartridge-mount adjustable bidirectional throttle
- Thread: 3/4-16 UNF-2A (cartridge mounting)
- Max. pressure: 300 bar
- Max. flow: 20 l/min
- Adjustment: Knob (O) or screw (M) — specify at time of order
- Cavity code: DO-590.001.51.2S
- Seal options: NBR 70 Shore A (standard) | Viton (on request)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
- Filtration standard: ISO 4406
| Thread | Max. Pressure (bar) | Max. Flow (l/min) |
| 3/4-16 UNF-2A | 300 | 20 |
