Argo-Hytos CETOP 2 Solenoid Operated Directional Control Valves
Precise, compact, and built to handle demanding hydraulic circuits, the Argo-Hytos RPE2-04 and RPE3-04 are direct-acting, solenoid-operated directional control valves in the CETOP 2 (D02) size range. Available in 4/2 and 4/3 configurations. Both models mount via a standard CETOP 2 subplate interface (ISO 4401, DIN 24340), making them a straightforward drop-in choice for new builds or system upgrades.

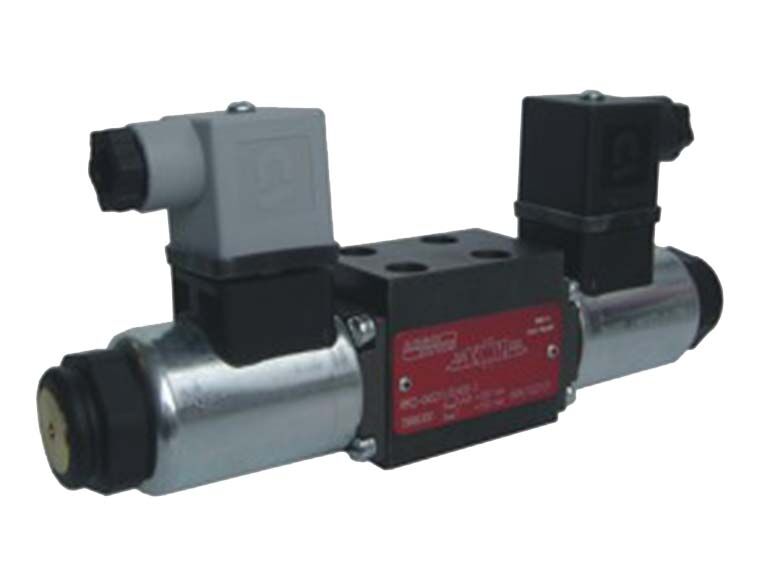

- RPE2-04 — for lower-flow applications up to 20 l/min, with operating pressures to 320 bar.

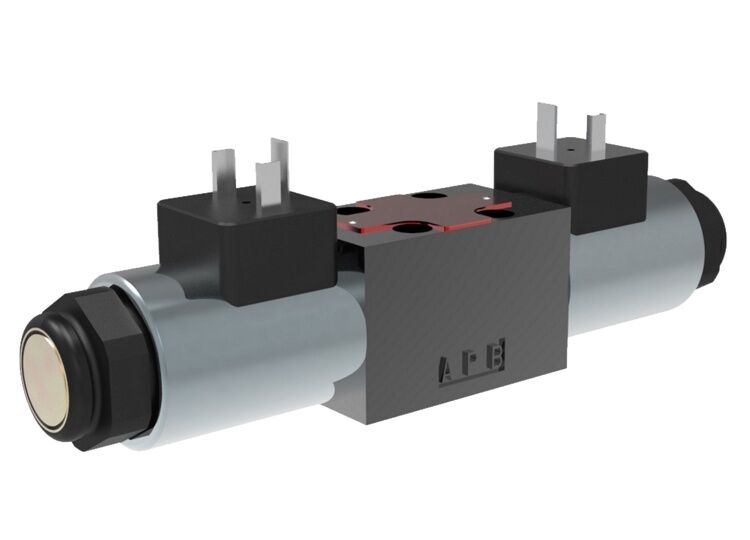

- RPE3-04 — for higher-flow applications up to 30 l/min, with the same 320 bar pressure rating.
Key features across both models:
- Max operating pressure: 320 bar
- CETOP 2 subplate mounting (ISO 4401 / DIN 24340)
- 4/2 and 4/3 spool configurations available
- DC solenoids as standard; AC supply available via built-in rectifier
- 360° rotatable coil for flexible installation in tight spaces
- Wide spool selection to suit your circuit requirements
- Enhanced surface protection option for mobile and outdoor environments (520-hour salt spray rating to ISO 9227)
