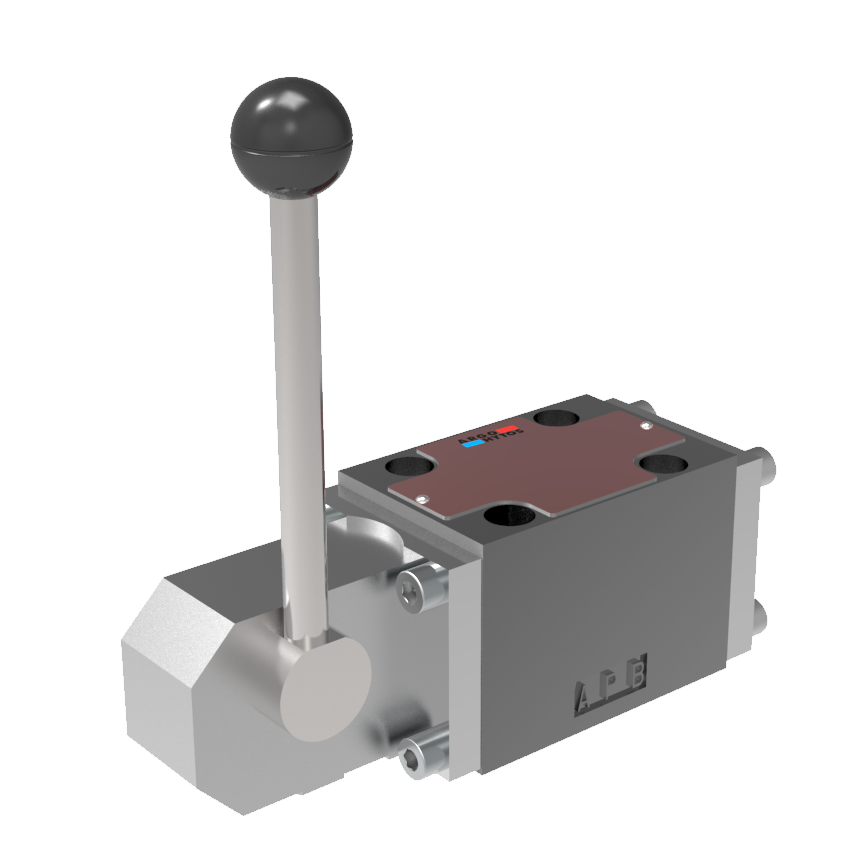

Argo-Hytos CETOP 3 Manually Operated Directional Control Valve
The RPR3-06 is a robust 4/2 and 4/3 directional control valve built for demanding hydraulic applications. Rated to 350 bar and 80 l/min, it handles high transmitted power while maintaining a low pressure drop — giving you reliable, precise flow control without unnecessary system losses. The CETOP 3 (D03) subplate mounting interface makes installation and integration straightforward, and the lever actuator can be rotated in 90° increments to suit your installation requirements.
A wide range of interchangeable spool configurations is available, including springless detented options that hold the last selected position — useful for applications where sustained directional control is needed without continuous operator input. Standard units are phosphated and zinc-coated for 240-hour salt spray resistance; enhanced surface protection rated to 520 hours is available for mobile and outdoor environments.
Key Specifications:
- Max. flow: 80 l/min
- Max. pressure: 350 bar
- Connection: DN06 (CETOP 3 / D03), ISO 4401 / DIN 24340
- Configurations: 4/2 and 4/3
- Actuation: Manual lever, rotatable in 90° increments
- Spool options: Wide range, including springless detented
- Corrosion protection: Standard 240 h / Enhanced 520 h salt spray (ISO 9227)
