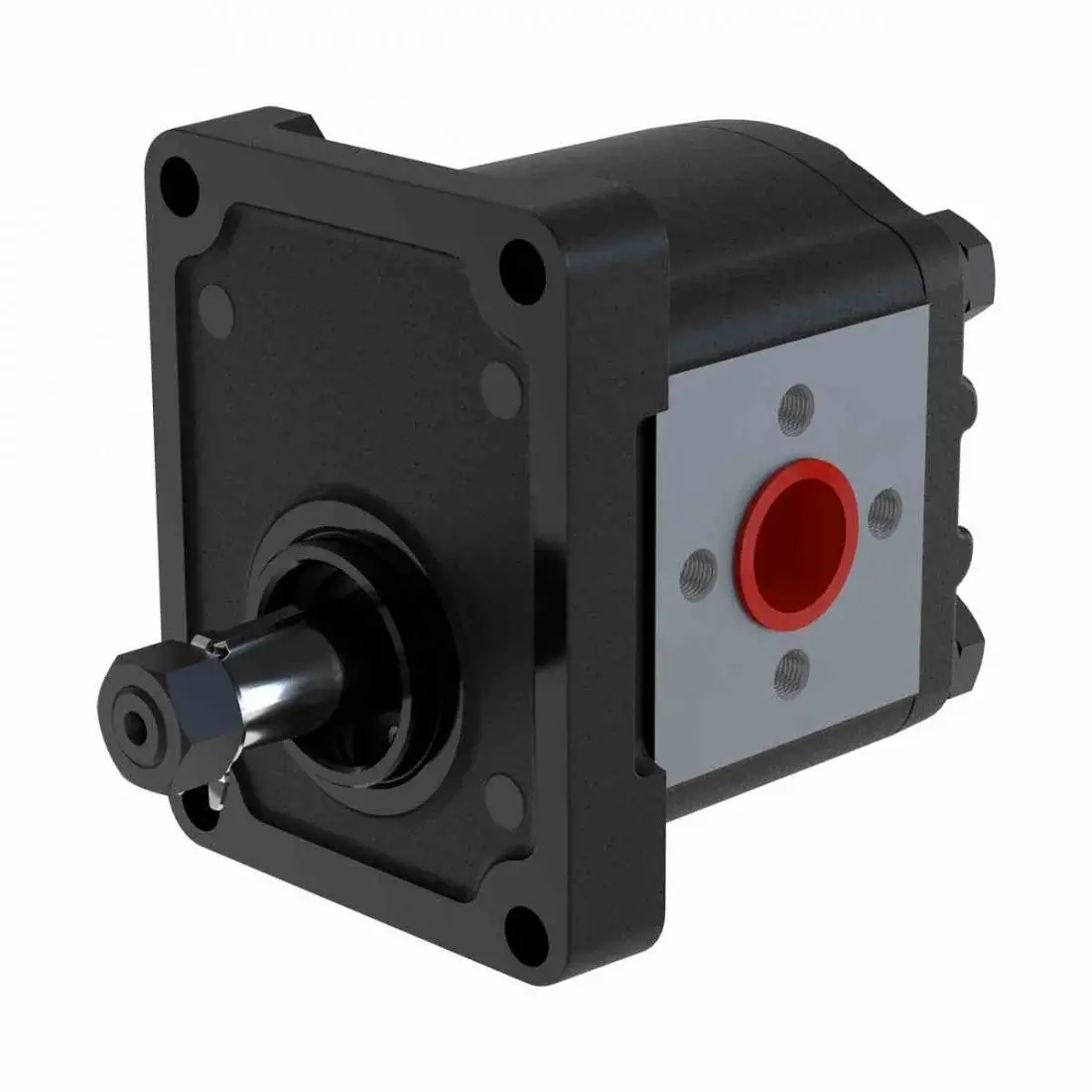

Blue Ascend Cast Iron Body Gear Pump - Group 20 (DKP20)
Built tough for demanding hydraulic applications, the Blue Ascend DKP20 is a cast iron body external gear pump suited to systems operating under sustained high pressure. The spheroidal cast iron body delivers the structural integrity needed for heavy-duty mobile and industrial plant. Available across 11 displacement sizes from 3.9 cc/rev to 27.9 cc/rev, the Group 20 range gives designers genuine flexibility without compromising durability.
Key Specifications:
- Displacement range: 3.9 – 27.9 cc/rev
- Maximum pressure: up to 320 bar (smaller displacements); 210 bar at largest
- Maximum speed: up to 3,500 rpm
- Minimum speed: 600 – 650 rpm
- Body material: Spheroidal cast iron
- Gear type: Normal gear
| Pump Type | Displacement (cc/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| DKP20.040 | 3.9 | 320 | 3500 | 650 |
| DKP20.060 | 5.9 | 320 | 3500 | 650 |
| DKP20.080 | 8.0 | 320 | 3500 | 650 |
| DKP20.095 | 9.4 | 320 | 3500 | 600 |
| DKP20.115 | 11.4 | 320 | 3000 | 600 |
| DKP20.140 | 13.9 | 300 | 3000 | 600 |
| DKP20.160 | 16.0 | 300 | 3000 | 600 |
| DKP20.190 | 19.2 | 280 | 3000 | 600 |
| DKP20.220 | 21.9 | 250 | 2500 | 600 |
| DKP20.250 | 24.8 | 230 | 2500 | 600 |
| DKP20.280 | 27.9 | 210 | 2200 | 600 |
