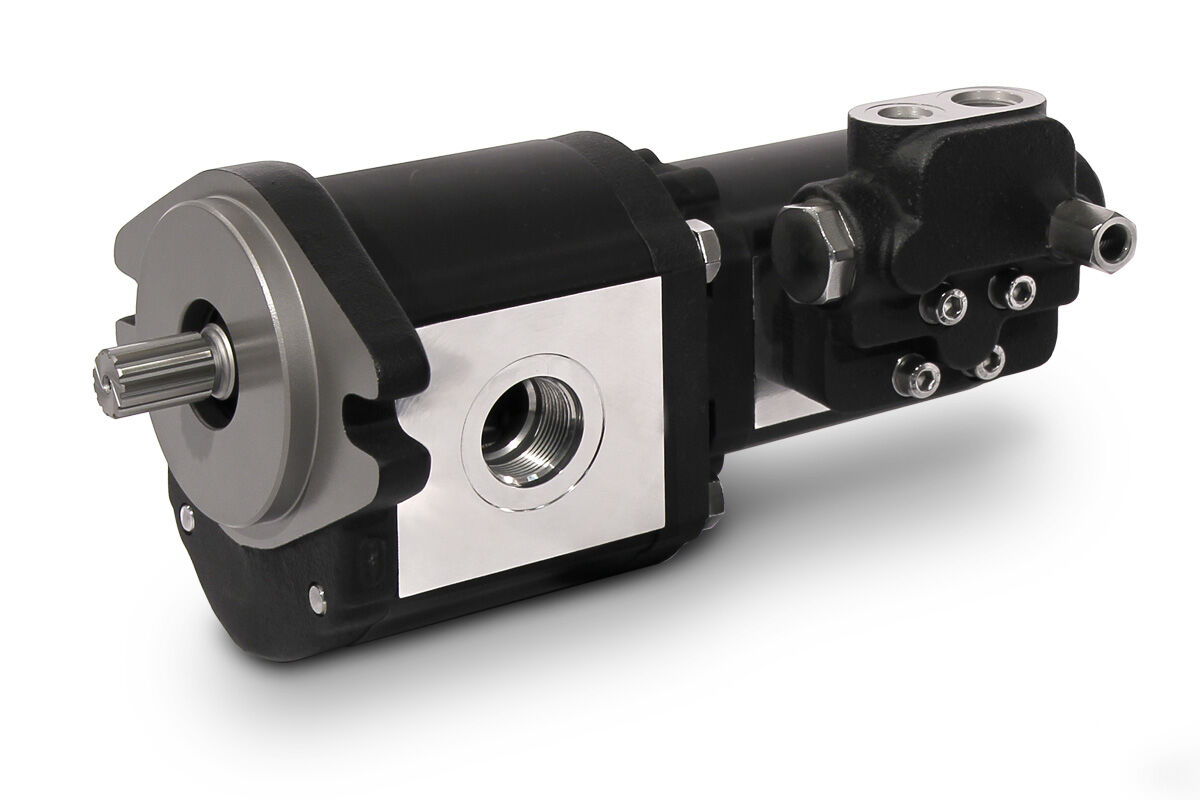

Casappa PL Series Aluminium Gear Pump
Casappa's Polaris range delivers proven gear pump performance backed by over fifty years of Italian fluid power design. Lightweight aluminium construction, consistent efficiency, and low noise make it a reliable choice for mobile and industrial hydraulics. FPD stocks the Polaris range locally, so you spend less time waiting on freight and more time running.
Why Polaris
- Three-piece external gear design with aluminium alloy housing — strong, light, durable
- Consistent volumetric efficiency and low noise across the product life
- Drive shafts, mounting flanges, and ports all to international standards (European, SAE, German)
- Available in three frame sizes (Groups 10, 20, 30) to match your displacement and pressure needs
- Wide range of built-in valve options and multiple-pump combinations
Key Specifications
- Displacement: 1.07 to 91.10 cm³/rev
- Max continuous operating pressure: 260 bar (3770 psi)
- Max system pressure (relief setting): 280 bar (4060 psi)
- Max pressure peak: 300 bar (4350 psi)
- Max speed: 4000 rpm
- Mounting: European, SAE and German standard flanges
- Ports: Threaded or flanged
- Rotation: Clockwise, anti-clockwise, or reversible
- Fluid: Mineral-oil-based hydraulic fluids to ISO/DIN
Note: maximum pressure and speed taper on larger displacements — continuous ratings differ per model. Contact us with your displacement and we'll confirm the figures for your unit.
Typical Applications
Suited to building and construction, material handling, agriculture, forestry, turf care and mowers, and fan-drive systems.
Why Source From FPD
With nearly 40 years in the New Zealand hydraulic industry and the Polaris range carried locally, we get you the right pump fast — with the technical know-how to make sure it's the right spec for the job.
