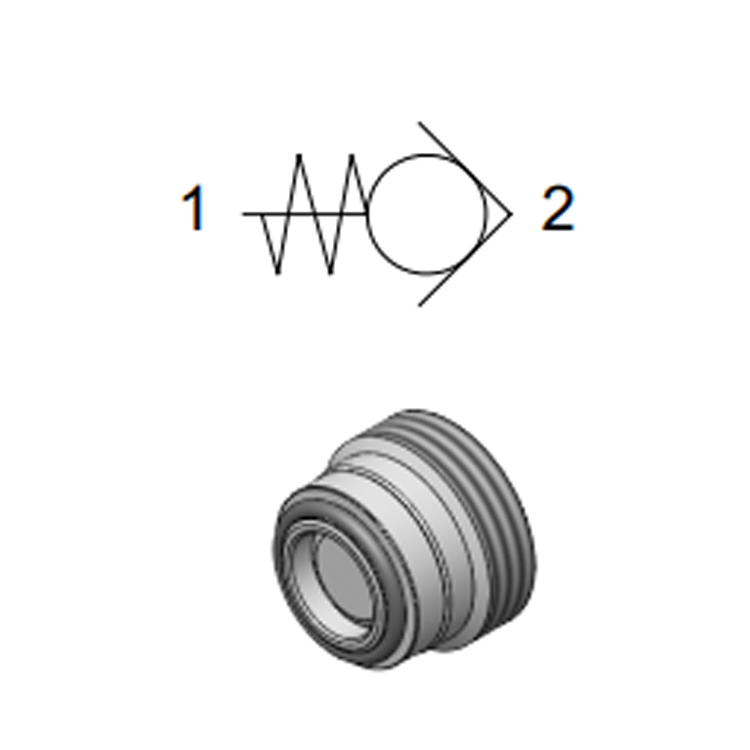

Check Valve Insert, Poppet Type
A thread-in poppet check valve insert that screws directly into a standard BSPP port in a manifold or valve block. No separate cavity machining is required — the insert seats against the existing port face, providing an integrated check function with a very low installation profile.
The poppet design delivers reliable sealing and consistent cracking performance. Available in four BSPP sizes, all rated to 350 bar.
Key Specifications
- Type: Thread-in poppet check valve insert
- Port sizes: 1/4", 3/8", 1/2", 3/4" BSPP
- Max. pressure: 350 bar (all sizes)
- Max. flow: 20 l/min (1/4") up to 100 l/min (3/4")
- Cracking pressure: 0.5 bar (all sizes)
- No separate cavity required — installs directly into BSPP port
- Fluid temperature: -20°C to +90°C
- Filtration standard: ISO 4406
| Thread | Max. Pressure (bar) | Max. Flow (l/min) |
| 1/4 BSPP | 350 | 20 |
| 3/8 BSPP | 350 | 50 |
| 1/2 BSPP | 350 | 80 |
| 3/4 BSPP | 350 | 100 |
