Cross Line Relief Valves — DCF & DCM Series
Italian-made precision relief valves for MP, MR, and MSY series orbital motors. The DCF and DCM series from Oleoweb provide cross line circuit protection, venting excessive pressure from either working port to prevent motor damage and circuit failure under shock loading. Direct motor mount design keeps your installation clean and compact. Available in both DCF and DCM configurations to suit different motor housings.
Key Specifications
- Series: DCF and DCM
- Compatible motors: MP, MR, MSY series orbital motors
- Direct motor mount design
- Manufactured in Italy by Oleoweb
| Part # | Max Flow Rate | Pressure Range | Series | A+B Ports | Bolts |

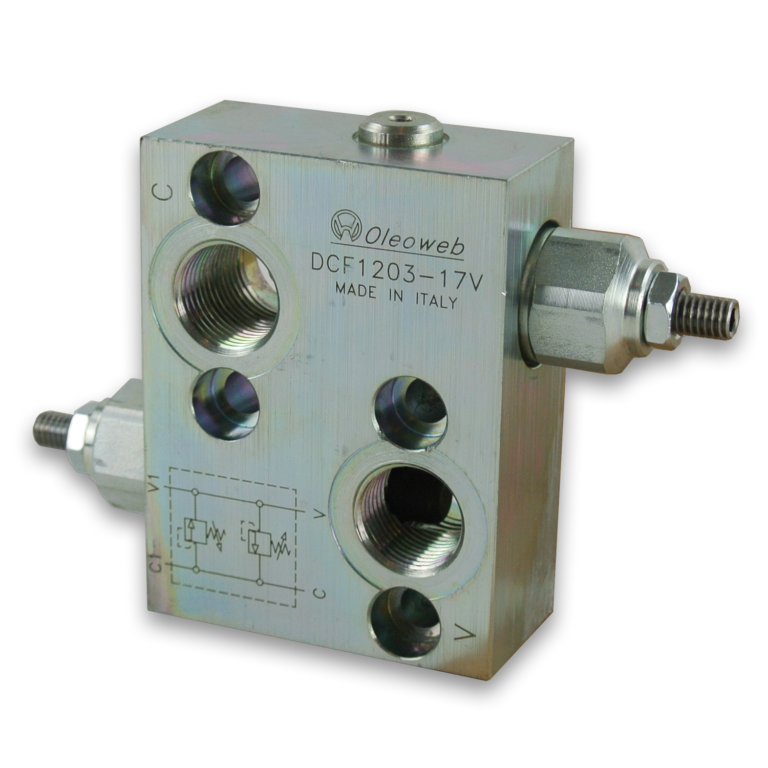

| DCF1201 | 40 lpm | 10-40 bar | MP/MR/MPYN/MRYN | 1/2” BSPP | M8x40 cap screw |
| DCF1202 | 40 lpm | 20-210 bar | MP/MR/MPYN/MRYN | 1/2” BSPP | M8x40 cap screw |
| DCF1203 | 40 lpm | 70-350 bar | MP/MR/MPYN/MRYN | 1/2” BSPP | M8x40 cap screw |

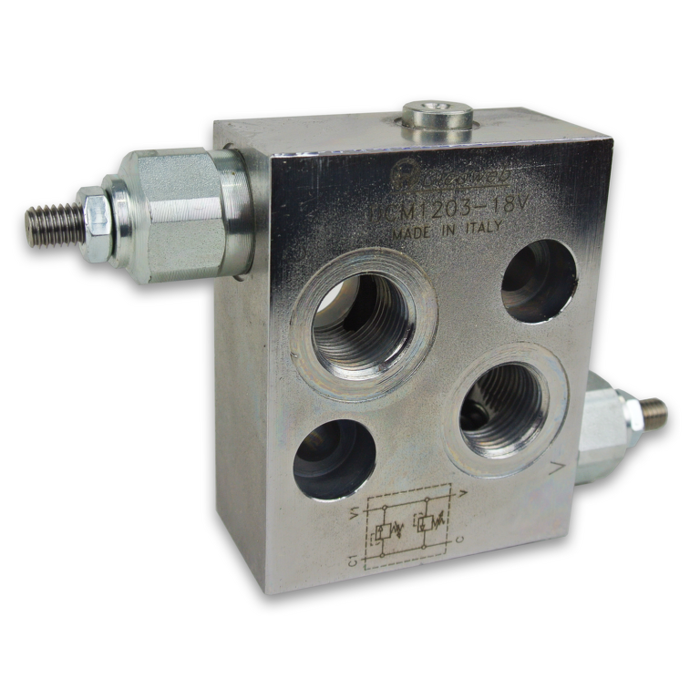

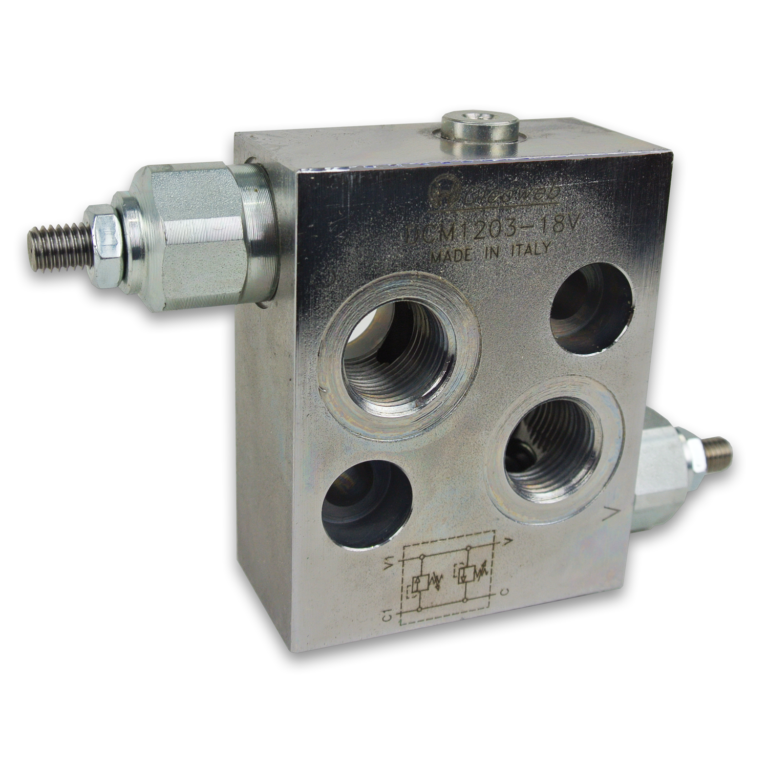

| DCM1201 | 40 lpm | 10-40 bar | MSY | 1/2” BSPP | M10x40 cap screw |
| DCM1202 | 40 lpm | 20-210 bar | MSY | 1/2” BSPP | M10x40 cap screw |
| DCM1203 | 40 lpm | 70-350 bar | MSY | 1/2” BSPP | M10x40 cap screw |
