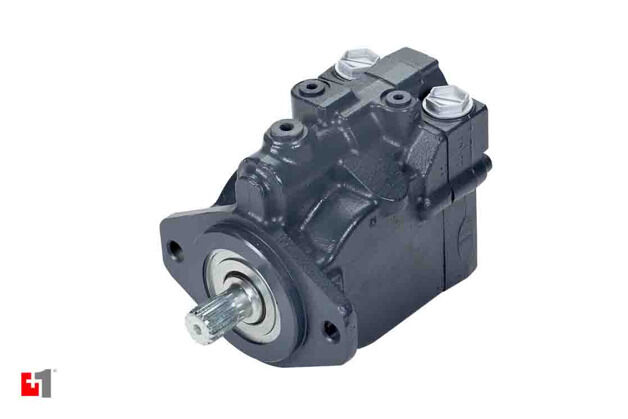

Danfoss L/K medium-power variable axial piston motor
Boasting high-capacity bearings, a special dust seal, three clean sides for easy integration, and a wide range of displacements, Danfoss L and K motors are perfect for aerial lifts and so much more – rollers, pavers, specialty harvesters, fan drives, and other hydrostatics solutions. These motors have been optimized with regard to options, life, package size, and installed cost.
Features:
- The clean design approach of L&K Motors ensures ease of adaptation for diverse applications where space is a limitation.
- A comprehensive control portfolio helps you achieve cutting-edge machine performance.
- Unique features such as the clean and ridged design enable you to create powerful drive solutions even is rough environmental operating machines.
- Flexibility due to modular design
- Broadest range of control options
- PAL (Propel Application Library) for software
- PLUS+1 compliant
- Fast to market due to the best portfolio package of hardware and software
- Available with SAE or cartridge flange
- Medium Power Variable Axial Piston Motor
- Displacement ranges from 25cc to 45cc
- Pressure ranges from 300bar to 400bar*
- SAE-B, two-bolt, and cartridge mounting configurations available
| Model | Displacement (cm³) | Weight (Kg) | Torque (Nm/bar) | Max Pressure (Bar) | Speed Limit (rpm) |
| L25 | 25 | 15.4 | 0.4 | 400 | 3400 |
| L30 | 30 | 15.4 | 0.48 | 350 | 3500 |
| L35 | 35 | 15.4 | 0.56 | 300 | 3600 |
| K38 | 38 | 15.4 | 0.6 | 350 | 3600 |
| K45 | 45 | 15.4 | 0.72 | 300 | 3500 |
