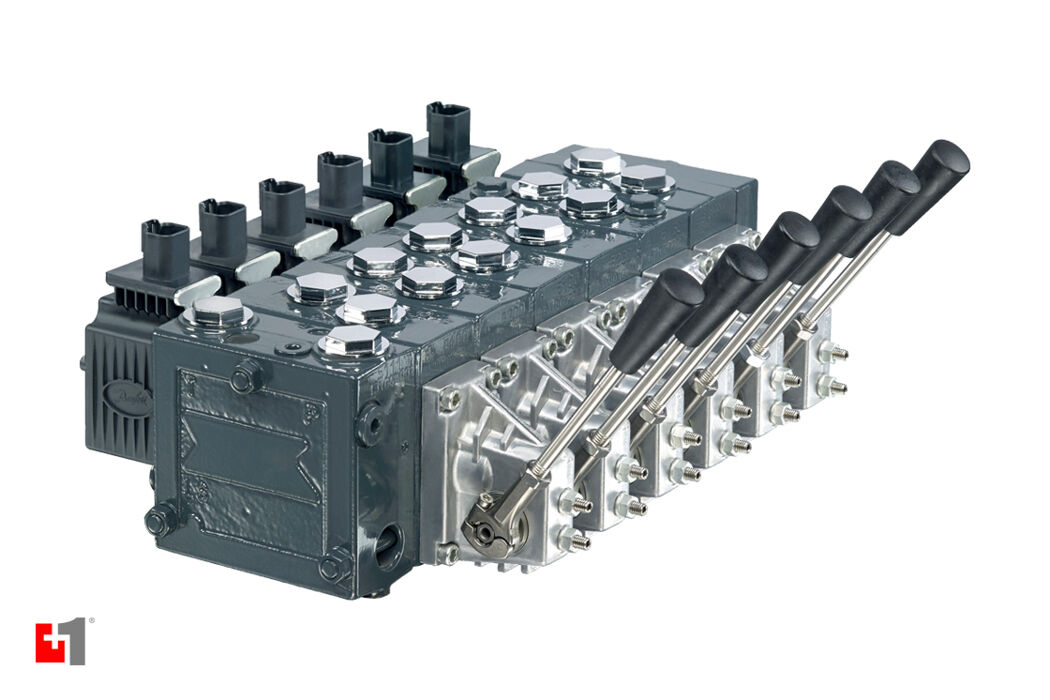

Danfoss PVG 32 Load Sense Sectional Valve
The Danfoss PVG 32 is a load-sensing, modular proportional valve group. It delivers load-independent flow control — meaning the flow to each work section stays constant regardless of load pressure variations across the system. This translates directly to more precise, predictable machine behaviour, improved operator control, and reduced energy loss compared to conventional directional control valves.
Paired with a variable displacement pump, the load-sensing architecture eliminates unnecessary pressure and heat generation, helping OEMs meet modern emissions and efficiency requirements.
Key Specifications
- Max. work port flow: 125 l/min (33 US gal/min)
- Max. work port pressure: 420 bar (6,090 psi)
- Max. pump pressure: 350 bar (5,075 psi)
- Max. pump flow (standard): 150–230 l/min depending on configuration
- Flow control spools (A–F): 5 to 130 l/min pressure-compensated flow
- Port connections: G 1/2 (work ports A/B); G 1/2 or G 3/4 (pump port)
- Fixing holes: M8 × min. 15 mm deep
| Danfoss Product No. | Item Description |
| 155L3358 | DANFOSS PVG32 PVBS SPRING STANDARD ( 7*** SPOOLS) |
| 155L6168 | DANFOSS PVG32 LS RUBBER CAP |
| 155L7503 | DANFOSS PVG32 PVBS SPRING FOR PVH/PVHC (9*** SPOOLS) |
| 155U2605 | DANFOSS JOYSTICK CTRL HANDLE 1 x PROP + NEUT SW |
| 157B0001 | DANFOSS PVG32 PVMD COVER FOR PVM |
| 157B0004-1 | DANFOSS PVG32 PVMR FRICTION DETENT COVER |
| 157B0008 | DANFOSS PVG32 PVH HYDRAULIC ACTIVATION |
| 157B2000 | DANFOSS PVG32 PVS END PLATE WITHOUT CONNECTIONS |
| 157B2001 | DANFOSS PVG32 PVLA ANTI-CAVITATION VALVE A/B PORT |
| 157B2002 | DANFOSS PVG32 PVLA ANTI-CAVITATION VALVE PLUG A/B PORT |
| 157B2011 | DANFOSS PVG32 PVS END PLATE WITH LX CONNECTION |
| 157B2014 | DANFOSS PVG32 PVS END PLATE WITHOUT CONNECTIONS - CAST IRON |
| 157B2015 | DANFOSS PVG32 PVS END PLATE WITH LX CONNECTION - CAST IRON |
| 157B2050 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 50 BAR |
| 157B2063 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 63 BAR |
| 157B2080 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 80 BAR |
| 157B2100 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 100 BAR |
| 157B2125 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 125 BAR |
| 157B2140 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 140 BAR |
| 157B2150 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 150 BAR |
| 157B2160 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 160 BAR |
| 157B2175 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 175 BAR |
| 157B2190 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 190 BAR |
| 157B2210 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 210 BAR |
| 157B2230 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 230 BAR |
| 157B2240 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 240 BAR |
| 157B2250 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 250 BAR |
| 157B2265 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 265 BAR |
| 157B2280 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 280 BAR |
| 157B2300 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 300 BAR |
| 157B2320 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 320 BAR |
| 157B2350 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 350 BAR |
| 157B2365 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 365 BAR |
| 157B2380 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 380 BAR |
| 157B2400 | DANFOSS PVG32 PVLP SHOCK & ANTI-CAVITATION VALVE 400 BAR |
| 157B2920 | DANFOSS PVG32 PVSI END PLATE WITH P T LX & M CONNECTIONS BSP |
| 157B3171 | DANFOSS PVG32 PVM MECHANICAL ACTIVATION |
| 157B3173 | DANFOSS PVG32 PVM MECHANICAL ACTIVATION W/O LEVER & LEVER BASE |
| 157B3174 | DANFOSS PVG32 PVM MECHANICAL ACTIVATION WITH LEVER BASE W/O LEVER |
| 157B3999 | DANFOSS PVM/PVH/PVMR/PVMF ACTUATOR SEAL KIT |
| 157B4997 | DANFOSS PVG32 PVEO PVEM PVEP PVEA PVEH PVES ACTUATOR SEAL KIT |
| 157B5101 | DANFOSS PVG32 PVP INLET MODULE CLOSED CENTRE WITHOUT PILOT SUPPLY |
| 157B5110 | DANFOSS PVG32 PVP INLET MODULE OPEN CENTRE C/W PILOT SUPPLY FOR PVE |
| 157B5111 | DANFOSS PVG32 PVP INLET MODULE CLOSED CENTRE C/W PILOT SUPPLY FOR PVE |
| 157B5113 | DANFOSS PVG32 PVP INLET MODULE CLOSED CENTRE C/W PILOT SUPPLY FOR PVE & PVPX |
| 157B5190 | DANFOSS PVG32 PVP INLET MODULE OPEN CENTRE C/W PILOT SUPPLY FOR PVH/PVHC |
| 157B5191 | DANFOSS PVG32 PVP INLET MODULE CLOSED CENTRE C/W PILOT SUPPLY FOR PVH/PVHC |
| 157B5400 | DANFOSS PVG32 PVPC EXTERNAL PILOT PRESSURE ADAPTOR WITHOUT CHECK |
| 157B5600 | DANFOSS PVG32 PVPC EXTERNAL PILOT PRESSURE ADAPTOR WITH CHECK |
| 157B5938 | DANFOSS PVG32 PVPV INLET MODULE CLOSED CENTRE C/W PILOT SUPPLY FOR PVE NO RV |
| 157B5999 | DANFOSS PVP/PVPV/PVPVM SEAL KIT |
| 157B6200 | DANFOSS PVG32 PVB SECTION COMPENSATED 1/2 BSP |
| 157B6203 | DANFOSS PVG32 PVB SECTION COMPENSATED LS A/B RELIEFS 1/2 BSP WITHOUT T0 |
| 157B6213 | DANFOSS PVG32 PVB SECTION COMPENSATED LS A/B RELIEFS 1/2 BSP WITH T0 |
| 157B6230 | DANFOSS PVG32 PVB SECTION COMPENSATED PVLP PORT RELIEFS 1/2 BSP WITHOUT T0 |
| 157B6233 | DANFOSS PVG32 PVB SECTION COMPENSATED PVLP PORT RELIEFS & LS A/B RELIEFS 1/2 BSP |
| 157B7101 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 25 LPM PVE |
| 157B7102 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 40 LPM PVE |
| 157B7120 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 10 LPM PVE WITH SHUTTLE |
| 157B7121 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 25 LPM PVE WITH SHUTTLE |
| 157B7122 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 40 LPM PVE WITH SHUTTLE |
| 157B7123 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 65 LPM PVE WITH SHUTTLE |
| 157B7125 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 5 LPM PVE WITH SHUTTLE |
| 157B7201 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 25 LPM PVE |
| 157B8002 | DANFOSS PVG32 PVAS TIE ROD KIT 2 BANK TORQUE 28 Nm |
| 157B8003 | DANFOSS PVG32 PVAS TIE ROD KIT 3 BANK TORQUE 28 Nm |
| 157B8004 | DANFOSS PVG32 PVAS TIE ROD KIT 4 BANK TORQUE 28 Nm |
| 157B8007 | DANFOSS PVG32 PVAS TIE ROD KIT 7 BANK TORQUE 28 Nm |
| 157B8008 | DANFOSS PVG32 PVAS TIE ROD KIT 8 BANK TORQUE 28 Nm |
| 157B8009 | DANFOSS PVG32 PVAS TIE ROD KIT 9 BANK TORQUE 28 Nm |
| 157B8061 | DANFOSS PVG32 PVAS TIE ROD KIT 11 BANK TORQUE 28 Nm |
| 157B8062 | DANFOSS PVG32 PVAS TIE ROD KIT 12 BANK TORQUE 28 Nm |
| 157B8999 | DANFOSS PVG32 SEAL KIT 1 WORK SECTION |
| 157B9000 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 10 LPM PVH/PVHC |
| 157B9001 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 25 LPM PVH/PVHC |
| 157B9002 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 40 LPM PVH/PVHC |
| 157B9003 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 65 LPM PVH/PVHC |
| 157B9004 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 100 LPM PVH/PVHC |
| 157B9005 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 5 LPM PVH/PVHC |
| 157B9006 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 130 LPM PVH/PVHC |
| 157B9020 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 10 LPM PVH/PVHC WITH SHUTTLE |
| 157B9021 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 25 LPM PVH/PVHC WITH SHUTTLE |
| 157B9022 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 40 LPM PVH/PVHC WITH SHUTTLE |
| 157B9023 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 65 LPM PVH/PVHC WITH SHUTTLE |
| 157B9024 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 100 LPM PVH/PVHC WITH SHUTTLE |
| 157B9025 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 5 LPM PVH/PVHC WITH SHUTTLE |
| 157B9026 | DANFOSS PVG32 PVBS SPOOL CLOSED NEUTRAL POSITION 130 LPM PVH/PVHC WITH SHUTTLE |
| 157B9100 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 10 LPM PVH/PVHC |
| 157B9101 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 25 LPM PVH/PVHC |
| 157B9102 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 40 LPM PVH/PVHC |
| 157B9103 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 65 LPM PVH/PVHC |
| 157B9104 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 100 LPM PVH/PVHC |
| 157B9105 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 5 LPM PVH/PVHC |
| 157B9106 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 130 LPM PVH/PVHC |
| 157B9120 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 10 LPM PVH/PVHC WITH SH |
| 157B9121 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 25 LPM PVH/PVHC WITH SH |
| 157B9122 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 40 LPM PVH/PVHC WITH SH |
| 157B9123 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 65 LPM PVH/PVHC WITH SH |
| 157B9124 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 100 LPM PVH/PVHC WITH S |
| 157B9125 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 5 LPM PVH/PVHC WITH SHU |
| 157B9126 | DANFOSS PVG32 PVBS SPOOL THROTTLED OPEN NEUTRAL POSITION 130 LPM PVH/PVHC WITH S |
| 157B9200 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 10 LPM PVH/PVHC |
| 157B9201 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 25 LPM PVH/PVHC |
| 157B9202 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 40 LPM PVH/PVHC |
| 157B9203 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 65 LPM PVH/PVHC |
| 157B9204 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 100 LPM PVH/PVHC |
| 11061235 | DANFOSS PVG32 PVHC ELECTRICAL ACTUATOR SEAL KIT |
| 11066027 | DANFOSS PVG32 PVP INLET MODULE OPEN CENTRE C/W PPRV FOR PVH/PVHC & PREPARED FOR |
| 11085447 | DANFOSS PVG32 PVBS SPOOL SINGLE ACTING ON A PORT 130 LPM PVH/PVHC |
| 11107587 | DANFOSS PVG HANDLE & BASE - CLAMP TYPE |
| 11112038 | DANFOSS PVG32 PVHC ELECTRO-HYD PROPORTIONAL HIGH CURRENT PWM 12V DEUTSCH |
| 11112039 | DANFOSS PVG32 PVHC ELECTRO-HYD PROPORTIONAL HIGH CURRENT PWM 24V DEUTSCH |
| 11156335 | DANFOSS PVG32 SEAL KIT 7 WORK SECTIONS |
| 11166743 | DANFOSS PVG32 PVEO ELECTRO-HYDRAULIC ACTUATOR ON/OFF 24V DIN |
| 11166765 | DANFOSS PVG32 PVEO-HP ELECTRO-HYDRAULIC ON/OFF 12V DEUTSCH |
| 11166766 | DANFOSS PVG32 PVEO-HP ELECTRO-HYDRAULIC ON/OFF 24V DEUTSCH |
| 11166775 | DANFOSS PVEH32 ACTUATOR S7-1x4DEU-H-ACT |
| 11166829 | DANFOSS PVG32 PVEM ELECTRO-HYD ACTUATOR PROPORTIONAL MEDIUM 11-32V DIN |
| 11166836 | DANFOSS PVG32 PVEO ELECTRO-HYDRAULIC ACTUATOR ON/OFF 12V DIN |
| 11166838 | DANFOSS PVG32 PVEO ELECTRO-HYDRAULIC ACTUATOR ON/OFF 24V DEUTSCH |
| 11166843 | DANFOSS PVG32 PVEO ELECTRO-HYDRAULIC ACTUATOR ON/OFF 12V DEUTSCH |
| 11166845 | DANFOSS PVG32 PVEM-R ELECTRO-HYD ACTUATOR PROPORTIONAL MEDIUM RAMP 11-32V DIN |
| 11177347 | DANFOSS PVG32 PVEA ELECTRO-HYD ACTUATOR PROP ACT PAS FAULT MON 11-32V DEUTSCH |
| 11177353 | DANFOSS PVG32 PVEA ELECTRO-HYD ACTUATOR PROP ACT PAS FAULT MON AMP |
| 11180766 | DANFOSS PVG32 PVPX ELECTRICAL LS UNLOADER 12V DEUTSCH NORMALLY OPEN |
| 11180767 | DANFOSS PVG32 PVPX ELECTRICAL LS UNLOADER 24V DEUTSCH NORMALLY OPEN |
| 11180768 | DANFOSS PVG32 PVPX ELECTRICAL LS UNLOADER 12V DEUTSCH NORMALLY CLOSED |
| 11180769 | DANFOSS PVG32 PVPX ELECTRICAL LS UNLOADER 24V DEUSTCH NORMALLY CLOSED |
