Direct Acting Relief Valve with Aluminium Manifold (30 l/min)

Direct Acting Relief Valve with Aluminium Manifold (30 l/min)

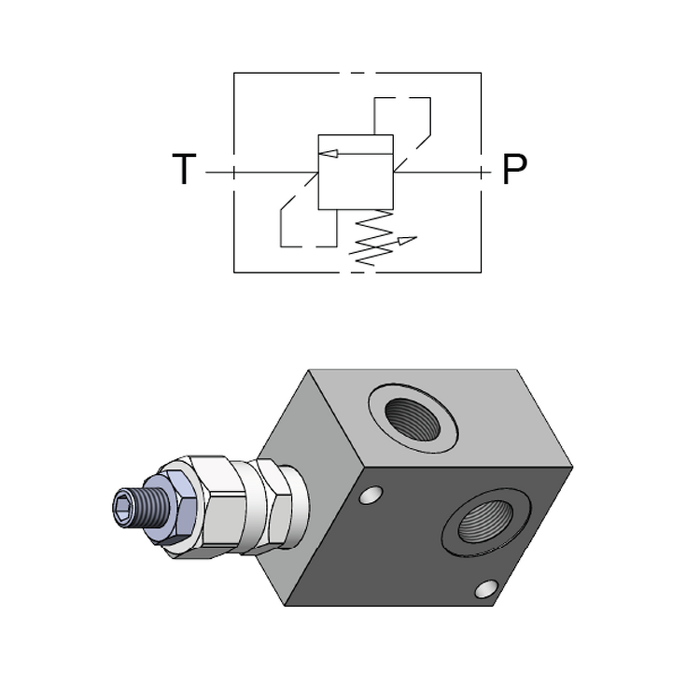

Cartridge is housed in an aluminium manifold with 3/8" or 1/2" BSPP connections, rated to 30 l/min. It is the mid-flow manifold-mounted complement to the RVD-M-20, sharing the same four setting ranges and body format.

Key Specifications

• Type: Direct acting relief valve in aluminium manifold
• Port sizes: 3/8" or 1/2" BSPP
• Max. pressure: 350 bar
• Max. flow: 30 l/min

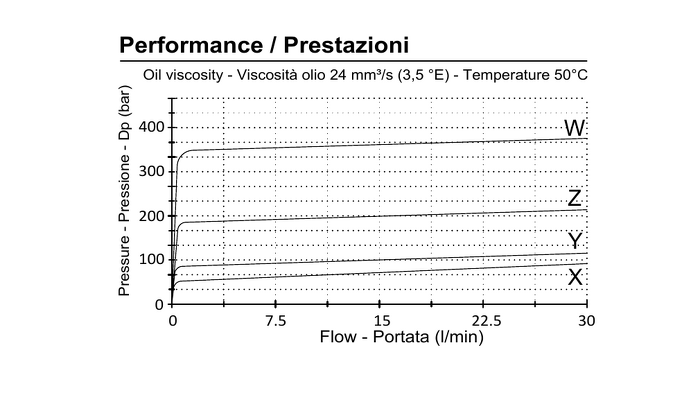

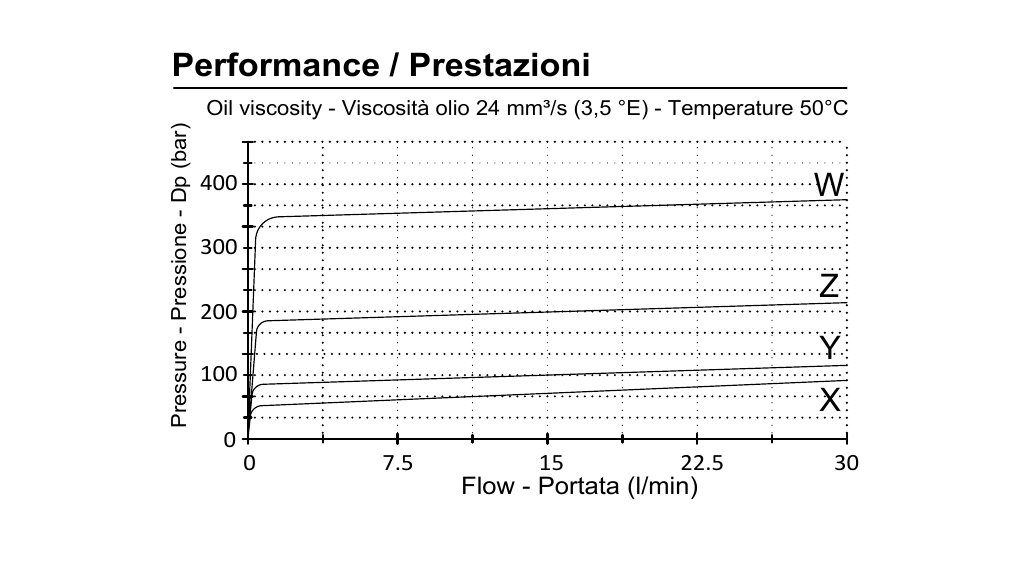

• Setting ranges: X: 5–50 bar | Y: 30–100 bar | Z: 50–210 bar | W: 100–350 bar
• Standard settings: 50 / 100 / 200 / 300 bar (at 5 l/min)
• Manifold material: Raw aluminium (standard) | Anodised aluminium on request
• Adjustment: Socket screw (standard) | Tamper cap | Handknob with locknut
• Seal options: NBR (standard) | Viton on request
• Fluid temperature: -20°C to +90°C
