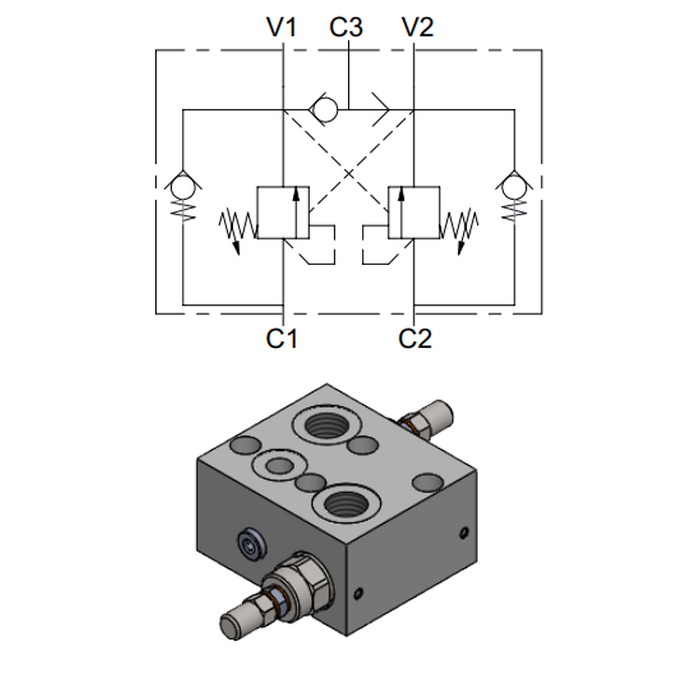

Double Effect Overcenter Valve, OMP/OMR Motor Flangeable
A double-acting counterbalance valve machined to flange directly onto Danfoss OMP and OMR series orbital motors. It provides bidirectional load holding and braking in drive, winch, and conveyor applications — available with or without an integrated brake release port.
Key Specifications:
- Valve type: Double effect overcenter — OMP/OMR motor flangeable
- Max operating pressure: 350 bar
- Port V1: 1/2" BSPP (female)
- Port V2: 1/2" BSPP (female)
- Port C3 (pilot/brake): 1/4" BSPP (female)
- Max flow: 60 l/min
- Standard pilot ratio: 4.25:1 (8:1 and 11:1 available on request)
- Setting range: X series 30–210 bar / Y series 60–350 bar
- Standard setting: 200 bar (X) / 300 bar (Y)
- Brake release option: Without (std) or with brake release
- Fluid temperature: −20 °C to +90 °C
- Ambient temperature: −20 °C to +50 °C
- Filtration standard: ISO 4406
- Standard seals: NBR 70 Shore A | Viton available on request
- Manifold material: Zinc plated steel
- Adjustment options: Steel cap (std) or tamper-proof cap
⚠ Compatibility note: Designed to interface with Danfoss OMP/OMR orbital motor mounting faces. Confirm motor interface dimensions before ordering.
| Port V1 | Port V2 | Port C3 | Max Pressure (bar) | Max Flow (l/min) | Pilot Ratio | Brake Release Option | Manifold Material |
| 1/2" BSPP | 1/2" BSPP | 1/4" BSPP | 350 | 60 | 4.25:1 | Without brake release | Zinc plated steel |
| 1/2" BSPP | 1/2" BSPP | 1/4" BSPP | 350 | 60 | 4.25:1 | With brake release | Zinc plated steel |
