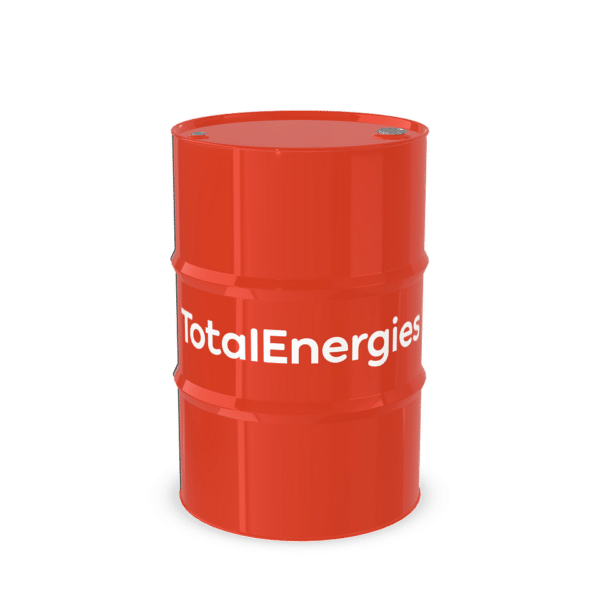

DYNATRANS ACX 10W, 30, 50
DYNATRANS ACX is a high-performance lubricant engineered for hydraulic systems and transmission components — including powershift gearboxes, axles, and final drives — equipped with specific brake friction discs. Recommended for mining, earthmoving, and construction machinery, it meets Caterpillar TO-4 and a broad range of OEM specifications. Dynatrans ACX 10W and 30 are suitable direct replacements for Caterpillar HYDO Advanced 10, 20, and 30, with drain interval extension up to 3,000 working hours and beyond (subject to regular oil analysis).
Key Advantages
- Excellent anti-wear and anti-corrosion protection — extends the life of lubricated components
- Compatible with seals and rubber hoses — no aggressiveness to system components
- Friction properties matched to Caterpillar, Komatsu, and other heavy construction and mining OEMs
- Very shear-stable viscosity — preserves hydraulic pump volumetric efficiency
- Good low-temperature fluidity — reliable flow during cold start-up
- Superior oxidation resistance at high operating temperatures
- Emulsifying properties keep water condensation in suspension — prevents pump failures in winter and oil degradation in summer
Specifications — DYNATRANS ACX 10W
(Primarily for hydraulic systems)
- Kinematic viscosity at 40°C: 41.5 mm²/s
- Kinematic viscosity at 100°C: 6.7 mm²/s
- Viscosity index: 116
- Pour point: −39°C
- Zinc content: >900 ppm
- Oxidation stability: >5,000 hrs
- FZG load stage (A/8.3/90): >12
Specifications — DYNATRANS ACX 30
(Primarily for powershift transmissions)
- Kinematic viscosity at 40°C: 101.5 mm²/s
- Kinematic viscosity at 100°C: 11.3 mm²/s
- Viscosity index: 97
- Pour point: −36°C
- Zinc content: >900 ppm
- Oxidation stability: >5,000 hrs
- FZG load stage (A/8.3/90): >12
Specifications — DYNATRANS ACX 50
(Primarily for axles and final drives)
- Kinematic viscosity at 40°C: 195 mm²/s
- Kinematic viscosity at 100°C: 18.4 mm²/s
- Viscosity index: 104
- Pour point: −21°C
- Zinc content: >900 ppm
- FZG load stage (A/8.3/90): >12
Standards & Approvals
SAE 10W
- ZF TE ML 03C / DANA-OHTM-TO-10W
- API GL-4 / CF
- Caterpillar TO-4 / HYDO Advanced 10
- Allison TES 439
- Komatsu Micro Clutch test (JCMAS)
- Suitable for: Caterpillar, Komatsu, Eaton-Fuller, Rockwell, JCB
SAE 30
- ZF TE ML 03C / ZF TE ML 07F / DANA-OHTM-TO-30
- API GL-4 / CF
- Caterpillar TO-4 / HYDO Advanced 30
- Allison TES 439
- Komatsu Micro Clutch test (JCMAS)
- Suitable for: Caterpillar, Komatsu, Eaton-Fuller, Rockwell, JCB
SAE 50
- API GL-4 / CF
- Caterpillar TO-4
- Komatsu Micro Clutch test (JCMAS)
- Suitable for: Caterpillar, Komatsu, Dana, Eaton-Fuller, Rockwell, JCB
Not sure which grade suits your application? Talk to our team — we'll help you spec the right fluid for your system. Call (07) 849 5771 or email [email protected]
