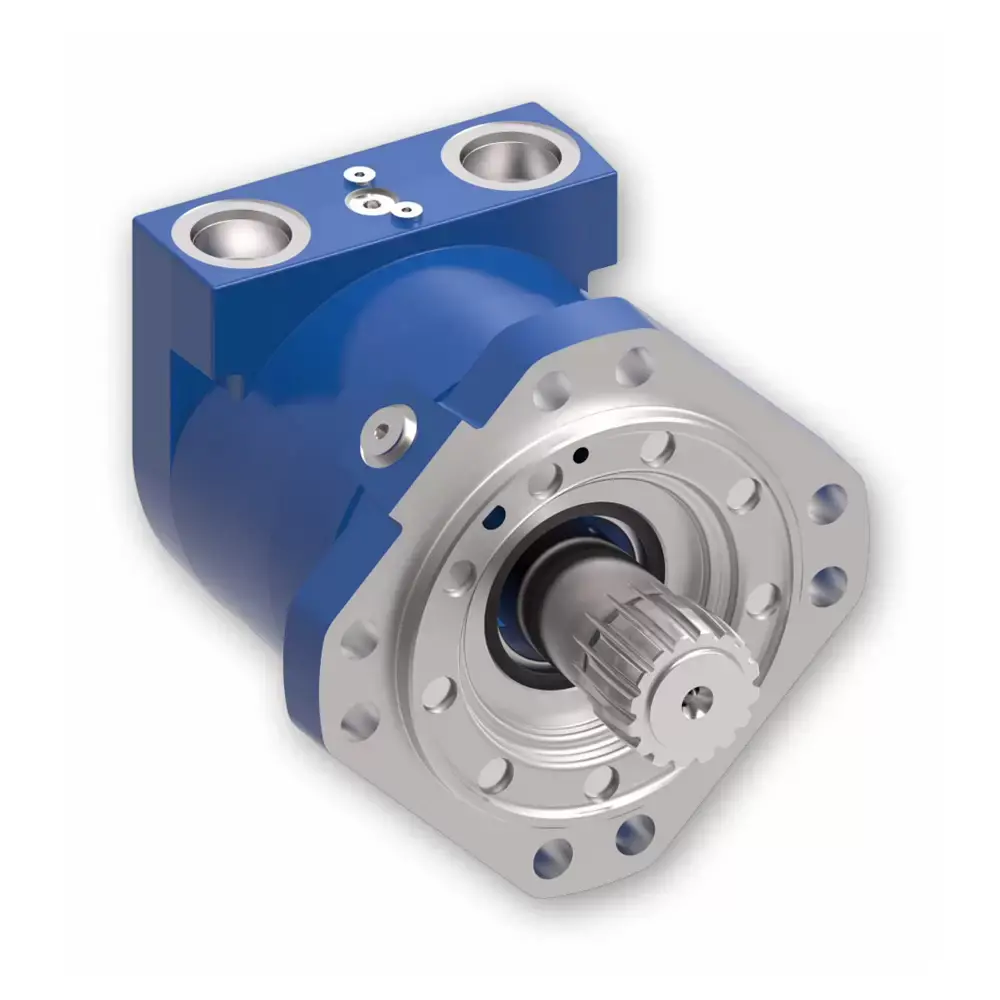

Eaton VIS45 Series Low Speed High Torque Motor

Eaton VIS45 Series Low Speed High Torque Motor

The most powerful motor in the VIS line.

The Eaton VIS45 sits at the top of the VIS range — a low speed, high torque orbital motor engineered for the most demanding drive and traction applications. When the job calls for serious continuous torque in a compact, dependable package, this is the motor.

Rated to 4520 Nm continuous torque across five displacements from 630 to 1560 cc/rev, the VIS45 runs flows up to 170 L/min continuous (189 L/min intermittent) and pressures up to 310 bar continuous (345 bar intermittent, 379 bar peak).

Patented VIS geroler technology — a high-strength geroler, optimised drive geometry and a two-piece pre-loaded balance plate — delivers stronger starting efficiency, less leakage and higher back-pressure capacity. Just three moving components mean it's built to keep working under load.

Key features

• Patented VIS geroler technology, just three moving components
• Greatest horsepower density in the VIS motor line
• Two-piece pre-loaded pressure balance plate
• Two-speed and case-flow options for open- and closed-loop circuits
• SAE and ISO mounting, multiple shaft and port configurations

Typical applications

Traction drives, skid steer loaders, grapples, excavator swing drives, marine and military winches, harvesters, snow groomers, trenchers, augers and wood processing.

Stocked and supported locally — talk to our team for the right configuration for your build. Enquire today.
