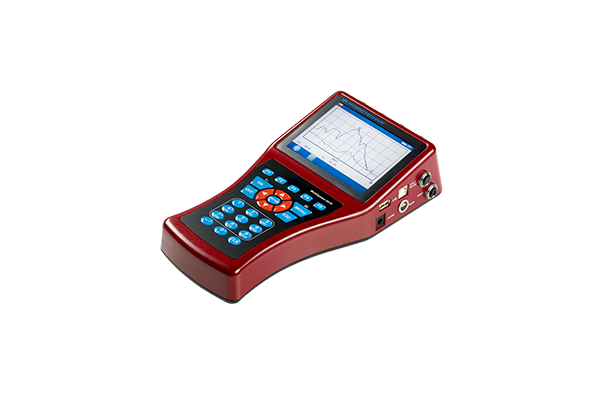

Hydrotechnik MultiSystem 5070

Hydrotechnik MultiSystem 5070

When you need more channels, more data, and faster capture — the Hydrotechnik MultiSystem 5070 is the professional's choice. Building on the MultiSystem series, the 5070 delivers 42 simultaneous measurement channels, a large 5" daylight-readable display, and dual CAN-Bus interfaces in a rugged handheld instrument designed for demanding field and workshop applications.

Indispensable for fluid system specialists who require comprehensive, high-speed data capture across complex hydraulic circuits — and the go-to diagnostic tool for senior service technicians tackling multi-circuit systems.

Key specifications:

• 8 measuring inputs: 6x analogue, 2x switchable (frequency/analogue), plus digital I/O — 42 channels total
• Signal inputs: 0/4–20 mA, 0/2–10 V, 1–5 V, 0.5–4.5 V, ±10 V
• Frequency range: 0.25 Hz – 20 kHz with direction detection
• 32 special channels for CAN data and calculated values (CAN, CANopen, SAE J1939)
• 2 separate CAN-Bus interfaces (CAN 1: J1939/CANopen + Hydrotechnik products; CAN 2: J1939/CANopen)
• Scanning rate: 0.1 ms (up to 10 kHz)
• Storage: up to 500 measurement series, 6 million values per series (4 GB microSD)
• Display: 5" colour TFT, daylight readable (QVGA 320 x 240)
• Battery: Li-Ion, ≥10 hours operating time; full charge in under 2 hours
• Connectivity: USB Device, USB Host, RS232, 2x CAN interface
• Expandable via MultiXtend (adds Bluetooth and LAN capability)
• Operating temperature: −10°C to +50°C
• IP40 rated | Weight: 1.072 kg | Dimensions: 270 × 140 × 69 mm
• Software compatible: Windows 7/8.1/10; Hydrotechnik HYDROcenter, HYDROlink 6, HYDROcom 6
• CE marked — EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS 2011/65/EU
• Part No: 3160-A0-82.00 | Supplied in a carry case with power supply and USB cable
