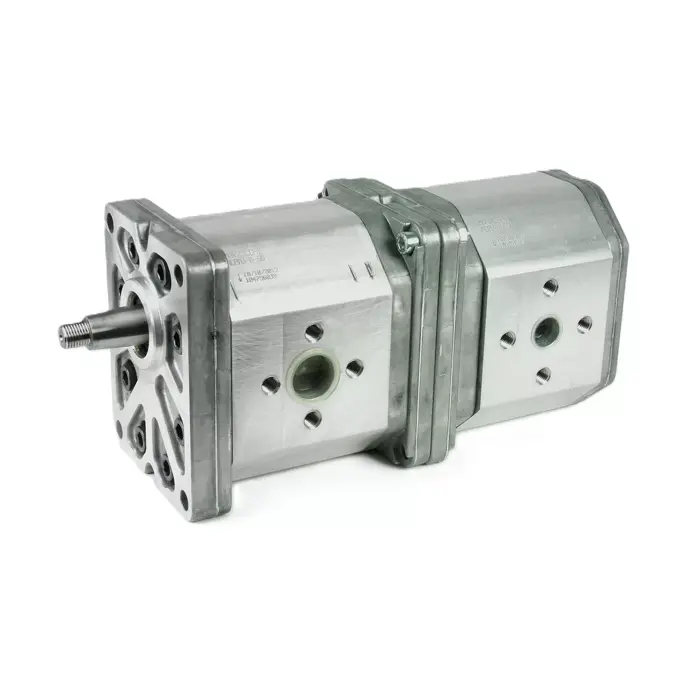

Marzocchi Aluminium Gear Pump

Marzocchi Aluminium Gear Pump

When you need reliable flow at a sensible price, the Marzocchi ALP aluminium body gear pump delivers. Built by one of the world's leading external gear pump manufacturers, the ALP series pairs a lightweight high-tensile aluminium body with hardened, ground steel gears — giving you durable, efficient performance across a wide range of mobile and industrial hydraulic applications. We hold Marzocchi stock locally, so you're not waiting on an overseas indent to get moving.

Why the ALP series

• Lightweight aluminium construction — high-tensile aluminium alloy body, flange and covers keep weight down while resisting deformation under continuous, intermittent and peak pressure.
• Hardened steel gears — case-hardened, quench-hardened, ground and fine-finished for low noise, low pulsation and long service life.
• Pressure-compensated bushings — axial and radial compensation reduces internal leakage and lifts volumetric efficiency.
• Modular and multi-stage capable — single units, or stack stages into modular multiple pumps to feed several circuits from one drive.
• Wide displacement range — covers small auxiliary functions right through to high-flow main pump duties.

Key technical specifications

The ALP range spans four main groups. Continuous (P1) ratings shown — intermittent (P2) and peak (P3) ratings are higher and available on request.

• P1 pressure tapers as displacement rises within each group — larger sizes carry lower maximum continuous pressure. Confirm the exact rating for your chosen size before ordering.
• Recommended fluid: mineral-oil-based hydraulic fluid to DIN 51525 / VDMA 24317, operating between -10°C and +80°C (high- and low-temperature special versions available).
• Filtration: keep contamination within ISO 4406 class limits appropriate to operating pressure for best pump life.
• GHP series (cast-iron flange and covers) is also available where higher pressure ratings are required — ask us if your duty sits at the top of the ALP range.

Configuration options

• Element type: front (A), intermediate (I) or rear (P) for modular builds
• Rotation: clockwise (D) or counter-clockwise (S)
• Shafts, flanges and ports: multiple standard and special options
• Special versions: high/low temperature, reinforced shaft seal (TR), separate inlets (AS) and common inlet (AC, GHP only)

Applications

The ALP series suits a broad spread of the sectors FPD supports — agriculture, construction, civil, forestry and general industrial hydraulics — wherever a robust, efficient gear pump is needed for tractors, loaders, compact machines, tippers and auxiliary power circuits.

Source it from FPD

We stock Marzocchi here in New Zealand and back every product with the technical knowledge to help you select the right group, size and configuration for your machine. Talk to our team about availability, multi-stage builds and exact pressure ratings for your application.
