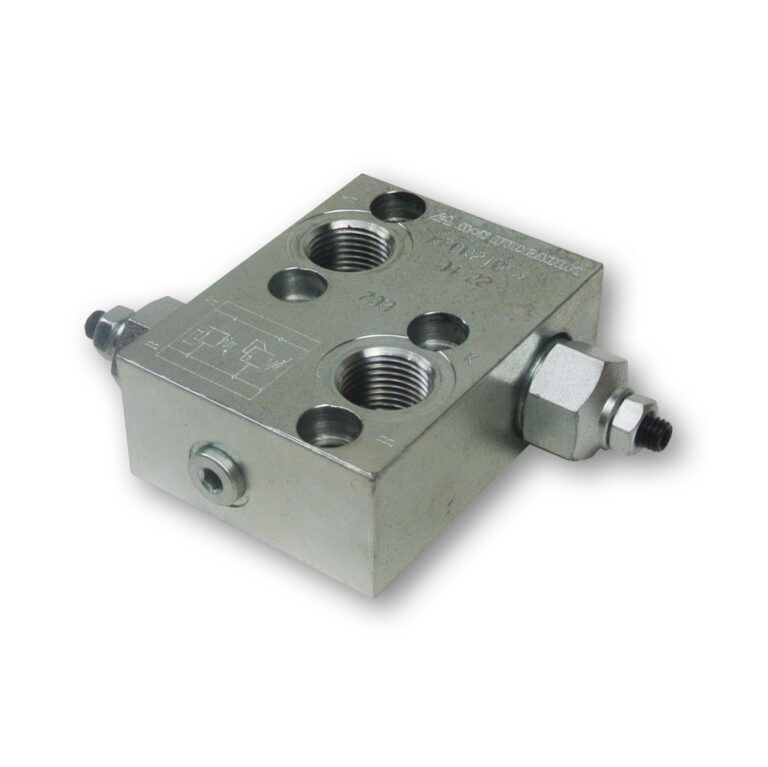

M+S Cross Line Relief Valve (KP Series)
Protect your orbital motor circuit from pressure spikes and overloads. This cross line relief valve, manufactured in Europe by M+S Hydraulic, is designed for direct fitment to MP, MR, and MSY series orbital motors. It prevents excessive pressure build-up across both working lines simultaneously, safeguarding the motor and downstream components during dynamic load conditions. Compact and purpose-built for orbital motor applications.
Key Specifications
- Max flow rate: 40 LPM
- Compatible motors: MP, MR, MSY series orbital motors
| Part | Motor Type | Cartridge | Ports | Max Cont Flow | Press Range |
| KPDR 210 | MP/MR/MH/MPYN/MRYN | Dual | 1/2” BSPP | 60 lpm | 50-210 bar |
| KPDS 210 | MS | Dual | 1/2” BSPP | 60 lpm | 50-210 bar |
| KPDT 210 | MT | Dual | 3/4” BSPP | 120 lpm | 80-210 bar |
| KPDV 250 | MV | Dual | 1” BSPP | 200 lpm | 20-250 bar |
