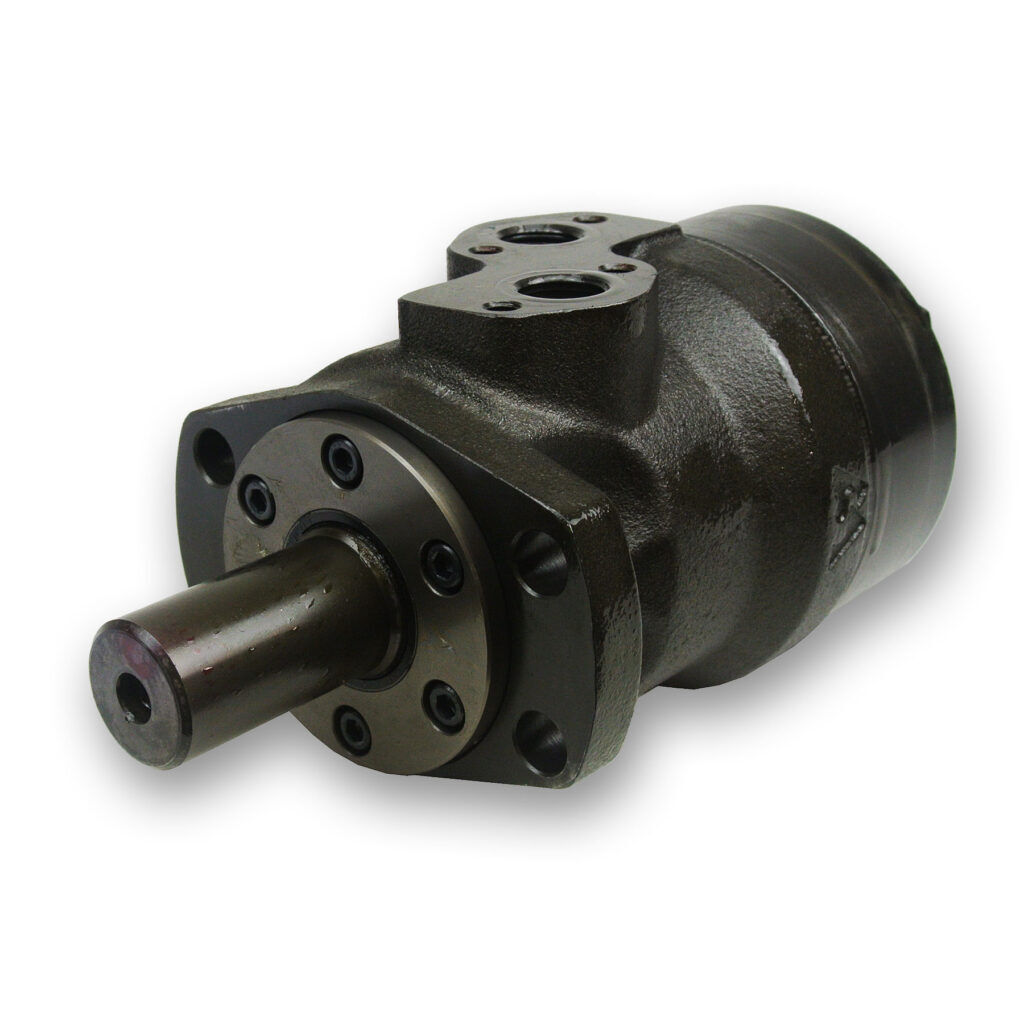

M+S MH Orbital Motor
MH Series Geroler Motor – manufactured in Europe by M+S Hydraulic. The MH Series is the heavy-hitter of the spool valve range. It is specifically engineered for high-torque, low-speed applications where reliability under pressure is required.
Standard pricing option features:
- shaft: 32mm straight keyed
- Mount: Magneto 4-bolt
- Ports: 1/2″ BSPP
- Case: 1/4″ BSPP
| Part | Displacement (cc) | Max Speed (rpm) | Max Flow (LPM) | Pressure Drop (bar) | Inlet Pressure (bar) | Torque (Nm) | Weight (kg) |
| MH 200 CU | 201.3 | 370 | 75 | 175 | 200 | 510 | 10.5 |
| MH 250 CU | 252.0 | 295 | 75 | 175 | 200 | 610 | 11.0 |
| MH 315 CU | 314.9 | 235 | 75 | 175 | 200 | 740 | 11.5 |
| MH 400 CU | 396.8 | 185 | 75 | 155 | 200 | 840 | 12.3 |
| MH 500 CU | 502.4 | 150 | 75 | 125 | 200 | 820 | 13.0 |
