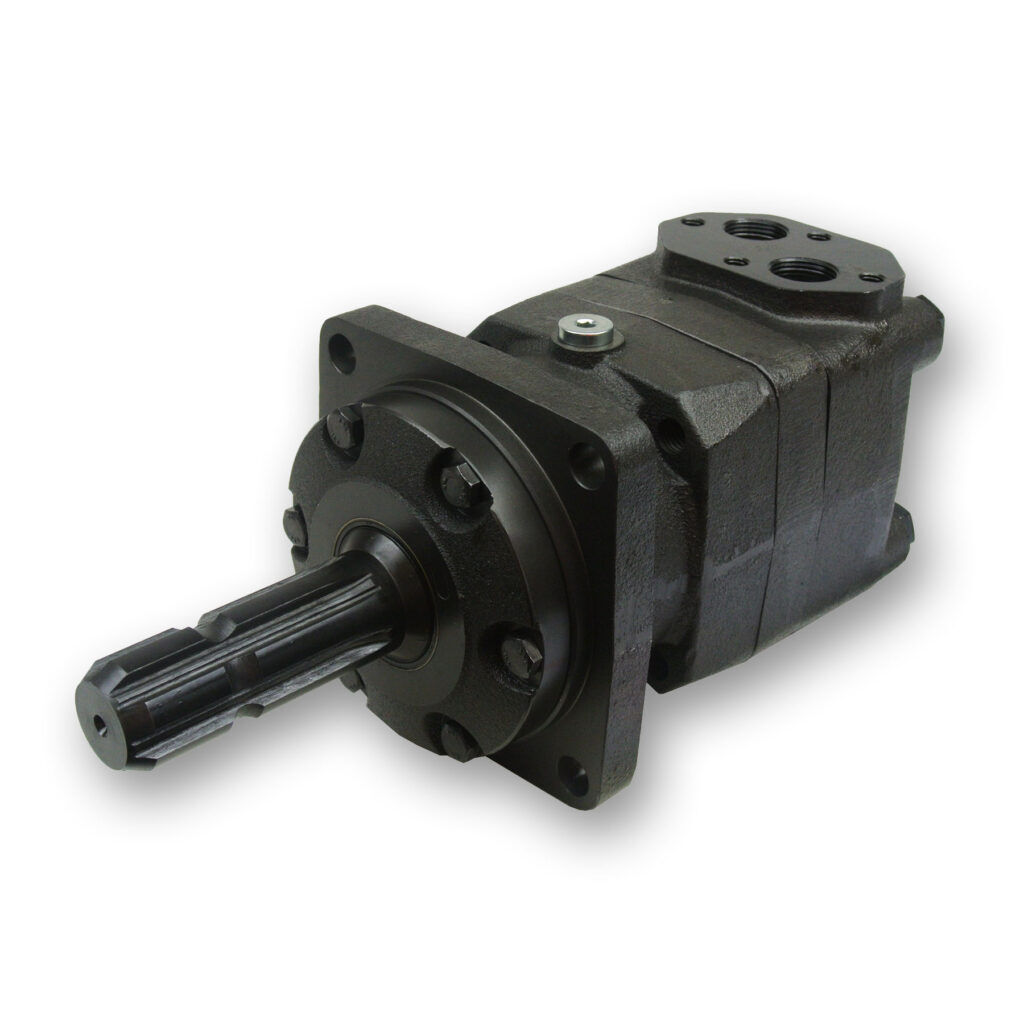

M+S MT Orbital Motor
MT Series Disc Valve Motor – manufactured in Europe by M+S Hydraulic. The MT Series stands out as the ultimate powerhouse in the M+S disc valve range. These are the standard choice for high-torque, high-load machinery that demands relentless performance, such as heavy-duty forestry winches, large agricultural harvesters, and industrial mixing plants. Offering up to 40 kW of power and the ability to withstand the most punishing operating conditions.
Standard pricing option features:
- Shaft: 40mm straight keyed
- Mount: 4-bolt
- Ports: 3/4″ BSPP
- Case: 1/4″ BSPP
| Part | Displacement (cc) | Max Speed (rpm) | Max Flow (LPM) | Pressure Drop (bar) | Inlet Pressure (bar) | Torque (Nm) | Weight (kg) |
| MT 160 CU | 161.1 | 622 | 100 | 200 | 210 | 470 | 21.0 |
| MT 200 CU | 201.4 | 620 | 125 | 200 | 210 | 590 | 21.5 |
| MT 250 CU | 251.8 | 496 | 125 | 200 | 210 | 730 | 22.0 |
| MT 315 CU | 326.3 | 382 | 125 | 200 | 210 | 950 | 23.0 |
| MT 400 CU | 410.9 | 304 | 125 | 180 | 210 | 1080 | 24.0 |
| MT 500 CU | 523.6 | 238 | 125 | 160 | 210 | 1220 | 25.0 |
| MT 630 CU | 631.2 | 197 | 125 | 140 | 210 | 1300 | 25.5 |
| MT 725 CU | 724.3 | 172 | 125 | 120 | 210 | 1270 | 26.0 |
