Ronzio Group 3 Aluminium Gear Pump
The Ronzio Z3 is the high-displacement series in the aluminium gear pump range, covering 13 sizes from 19.9 to 89.6 cm³/rev. With cast iron covers delivering continuous working pressures up to 280 bar and peak pressures up to 310 bar, it is engineered for heavy-duty mobile plant including large excavators, construction and forestry machinery, and industrial power units. Available as a pump or motor in single or tandem configurations, with cross-series assemblies possible alongside Z1 and Z2.
Key Specifications
- Displacement: 19.9–89.6 cm³/rev (13 sizes: types 20–90)
- Max continuous working pressure (P1): 280 bar (types 20–35) down to 160 bar (type 90)
- Max peak pressure (P2): 310 bar (types 20–35) down to 180 bar (type 90)
- Volumetric efficiency: 95–97% average
- Max shaft speed, no load: 3,000 rpm (types 20–35) down to 1,800 rpm (types 70–90)
- Max shaft speed at P1 pressure: 450 rpm (types 20–25); 350 rpm (types 30–90)
- Output torque: 26.9 Nm (type 20) up to 121.2 Nm (type 90)
- Weight: 10.6 kg (type 20) up to 13.1 kg (type 90)
- Operating temperature: –10°C to 80°C
- Oil viscosity: 20–120 mm²/s (cSt); max starting viscosity 700 mm²/s (cSt)
- Compatible fluid: Mineral hydraulic oil (DIN 51524)
- Clockwise, anti-clockwise, and bi-directional rotation options
- Single and tandem pump/motor configurations
- Cross-series tandem assemblies available (Z3/Z1 and Z3/Z2)
Configuration Options
- Flanges: European (A0), SAE "A" (B2), SAE "B" (B3), German (C4), European Gr. 3.5 (D5)

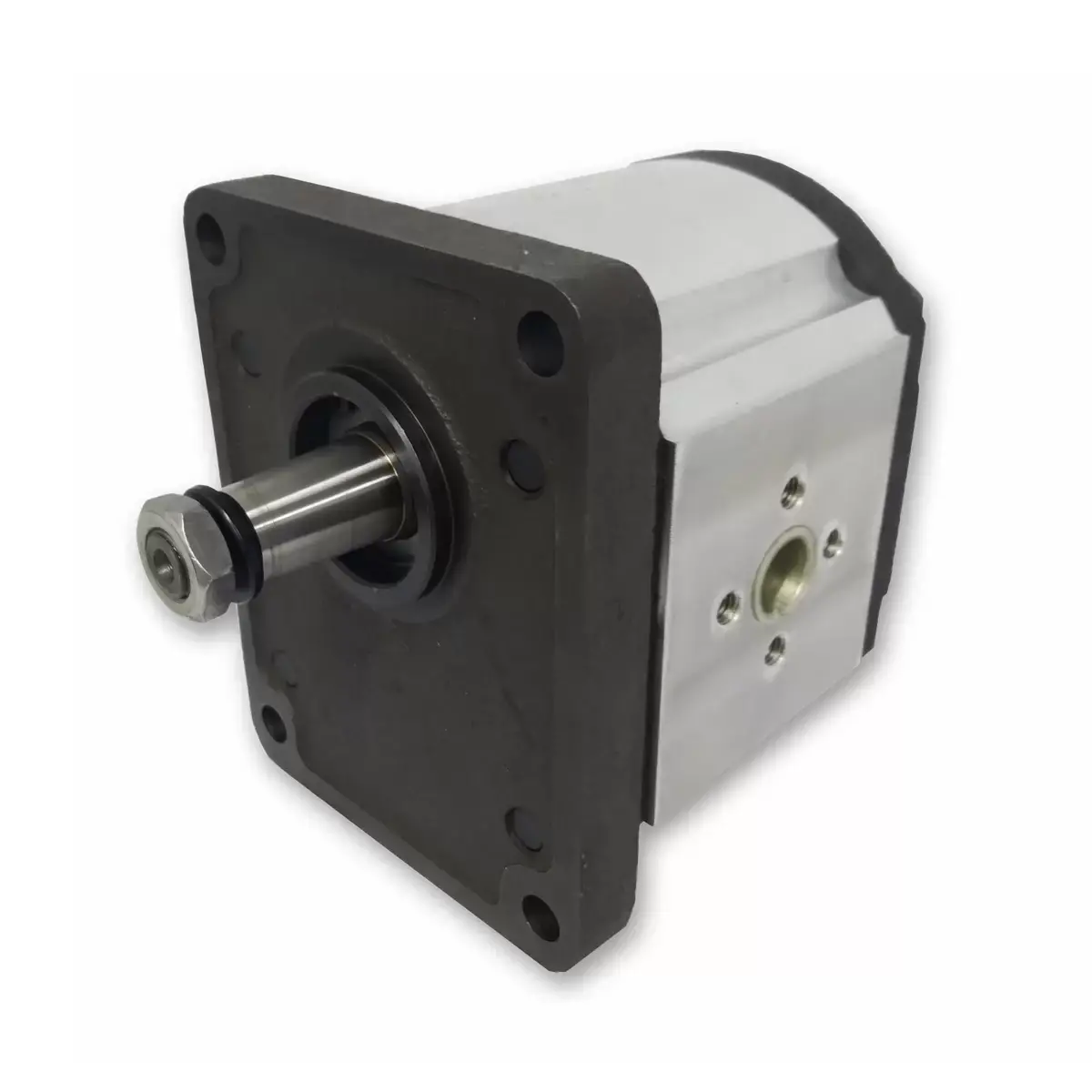

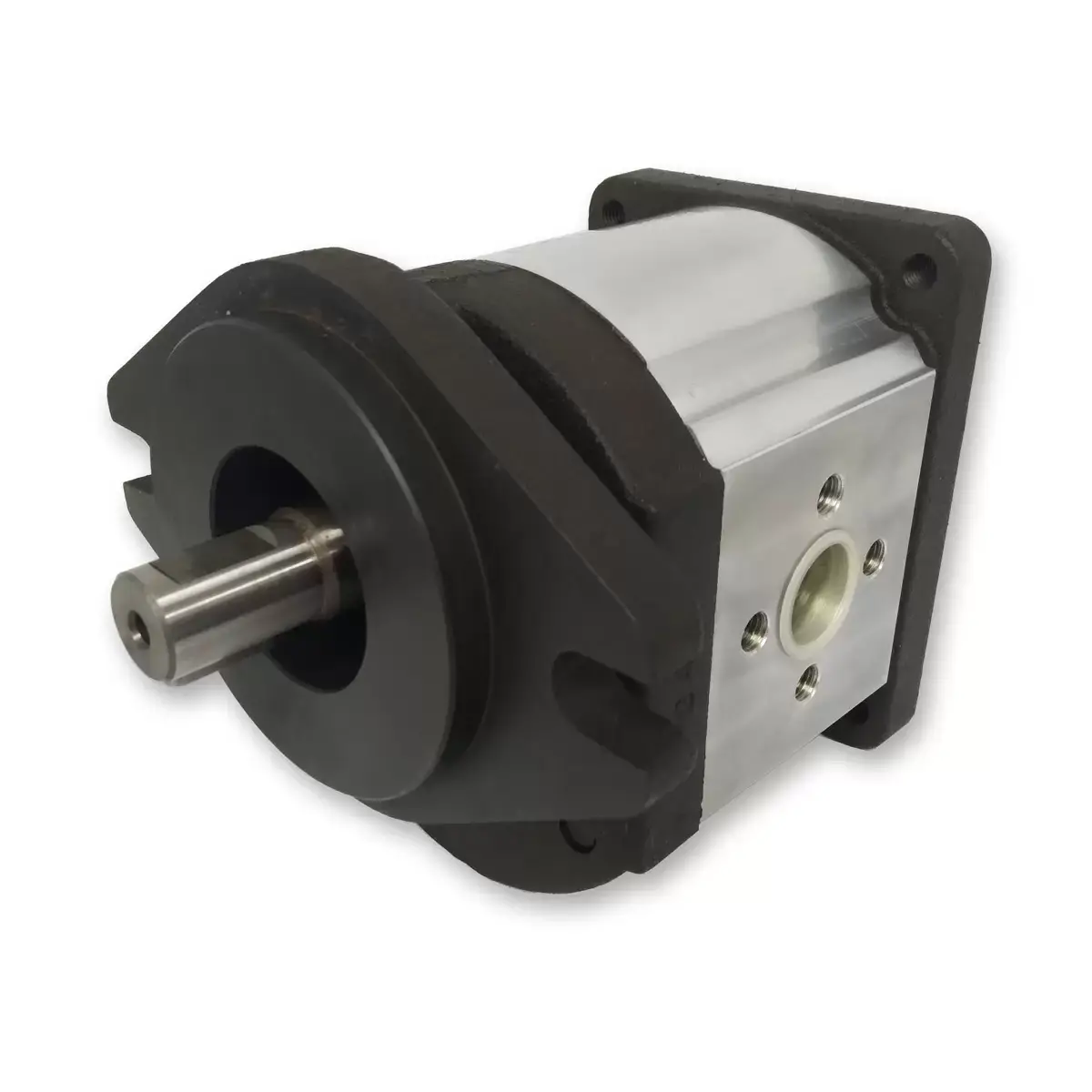

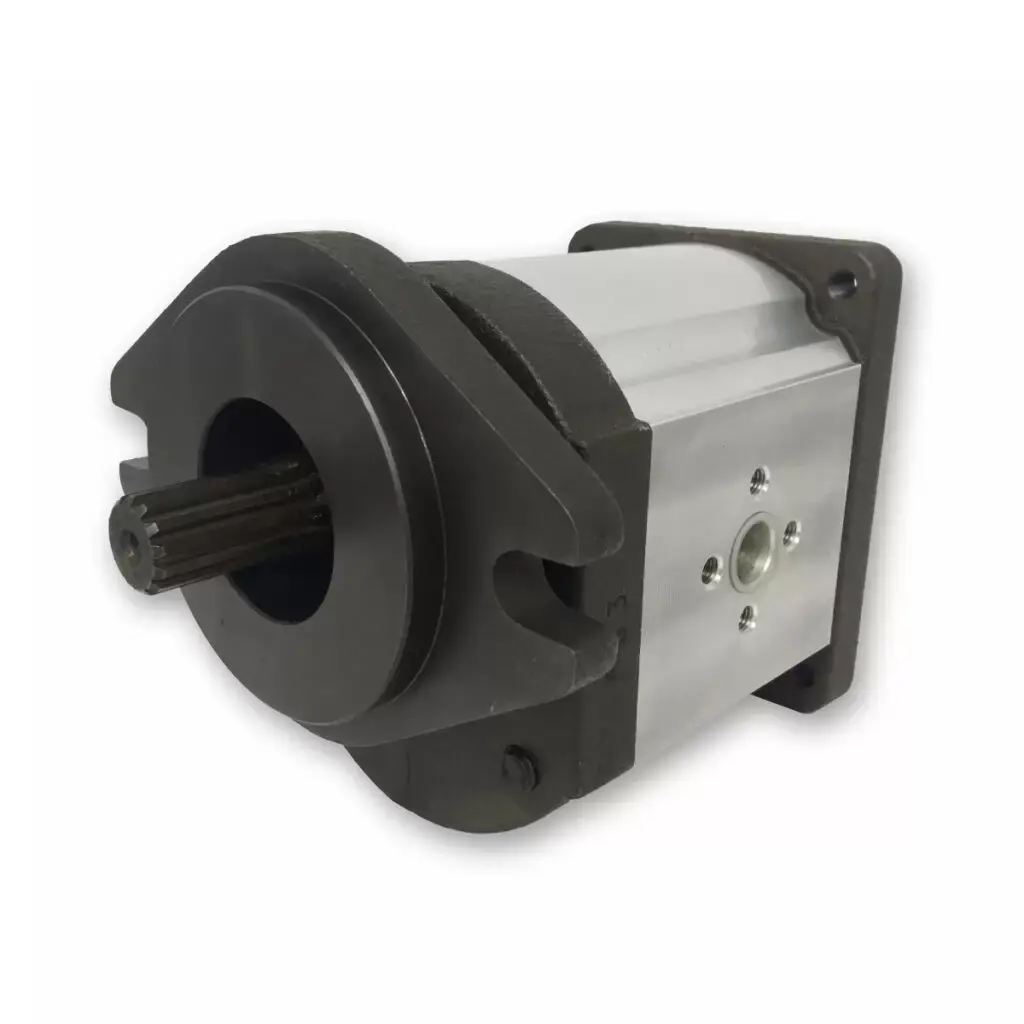

- Shafts: tapered 1:8 (C), tapered 1:5 (A), SAE "B" splined (B), SAE "B" straight 7/8" (L), cylindrical Ø22 mm (Q), SAE "B" straight 1" (M), tapered Gr. 3.5 (R), SAE 15-tooth (S)
- Ports: European, German, BSPP, O-Ring Boss, SAE 3000 psi
- Shaft seals: standard and reinforced (5 bar) NBR or Viton; 25 bar NBR, PTFE, or Viton; double-seal NBR or Viton options
- High-temperature Viton seals available
Note: The "Max shaft speed at P1 pressure" values (350–450 rpm) are the maximum operating speed permissible when running at maximum continuous working pressure — not the general no-load speed limit. No-load maximum speeds are 1,800–3,000 rpm depending on size. No intermittent pressure rating is published in the Z3 catalogue. For bi-directional pumps and motors, maximum pressure is reduced by 15%.
