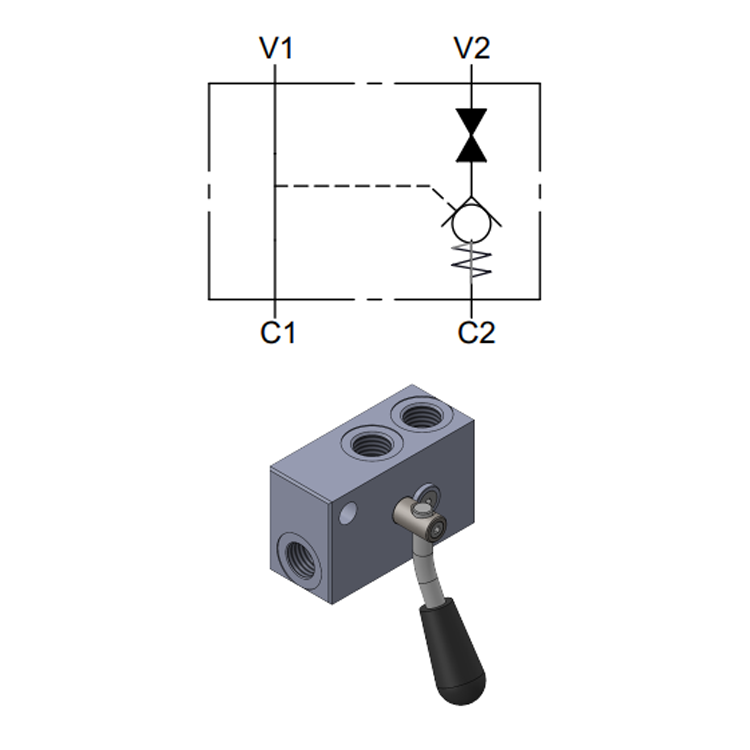

Single Pilot Operated Check Valve with Right Manual Shut-Off
Combines a single pilot operated check valve with an integrated right-hand manual shut-off cock. The lever allows the circuit to be positively isolated — for example when disconnecting an implement or performing maintenance — without removing the valve from the circuit.
The aluminium manifold body is available in raw or anodised finish. Available in 3/8" BSPP only.
Key Specifications
- Type: Single pilot operated check valve with right-hand manual shut-off
- Port size (V1-V2 / C1-C2): 3/8" BSPP
- Max. pressure: 300 bar
- Max. flow: 35 l/min
- Pilot ratio: 5.1:1
- Cracking pressure: 1 bar
- Seal options: NBR 70 Shore A (standard)
- Body material: Raw aluminium (standard) | Anodised aluminium on request
- Fluid temperature: -20°C to +90°C
| Thread V1-V2 | Thread C1-C2 | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| 3/8 BSPP | 3/8 BSPP | 300 | 35 | 5.1:1 |
