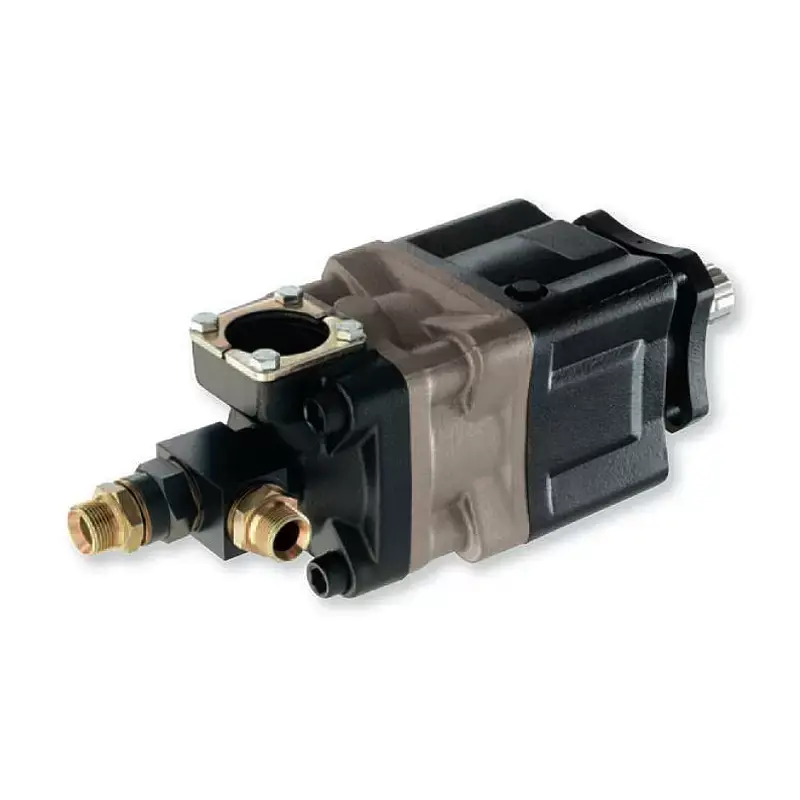

Sunfab SL Double Pump
The Sunfab SL double pump delivers exceptionally low noise levels in a slim, direct-mount housing. Available across eight sizes, with three differentiated-flow models offering small, large, and combined flow outputs for greater application flexibility — a cost-effective alternative to running two pumps with a splitter gearbox.
Key Specifications
- Available in 8 sizes: 20/20, 28/28, 40/20, 35/35, 56/28, 46/46, 53/53, 64/32
- Differentiated flow models (40/20, 56/28, 64/32) provide three flow options: small, large, and combined
- Maximum working pressure: 33–35 MPa (model dependent)
- Slim housing for direct mounting on power take-off in confined spaces
- Suitable for frame bracket installation via intermediate shaft
- Optional Savtec valve version for hydraulics use while the vehicle is moving
- O-rings on all contact surfaces plus double shaft seals to eliminate oil leakage
- Independent direction of rotation
- Spline shaft: DIN 5462 / ISO 14
- Mounting flange: ISO 7653-D
- Weight: 22.0 kg (all models)
| Model | Nominal Oil Flow @ 500 rpm (l/min) | Nominal Oil Flow @ 1000 rpm (l/min) | Nominal Oil Flow @ 1500 rpm (l/min) | Displacement (cm3/rev) | Max Pump Speed (rpm) | Max Working Pressure (MPa) |
| Pump SL 20/20 | 10 + 10 | 20 + 20 | 30 + 30 | 20.3 + 20.3 | 2200 | 35 |
| Pump SL 28/28 | 14 + 14 | 28 + 28 | 42 + 42 | 27.5 + 27.5 | 1800 | 35 |
| Pump SL 40/20 | 20 + 10 | 40 + 20 | 60 + 30 | 40.7 + 20.3 | 2200 | 35 |
| Pump SL 35/35 | 17.5 + 17.5 | 35 + 35 | 52.5 + 52.5 | 33.9 + 33.9 | 2200 | 33 |
| Pump SL 56/28 | 28 + 14 | 56 + 28 | 84 + 42 | 54.9 + 27.5 | 1800 | 35 |
| Pump SL 46/46 | 23 + 23 | 46 + 46 | 69 + 69 | 45.8 + 45.8 | 1800 | 33 |
| Pump SL 53/53 | 26.5 + 26.5 | 53 + 53 | 79.5 + 79.5 | 52.5 + 52.5 | 1600 | 33 |
| Pump SL 64/32 | 32 + 16 | 64 + 32 | 96 + 48 | 63.0 + 31.5 | 1600 | 35 |
