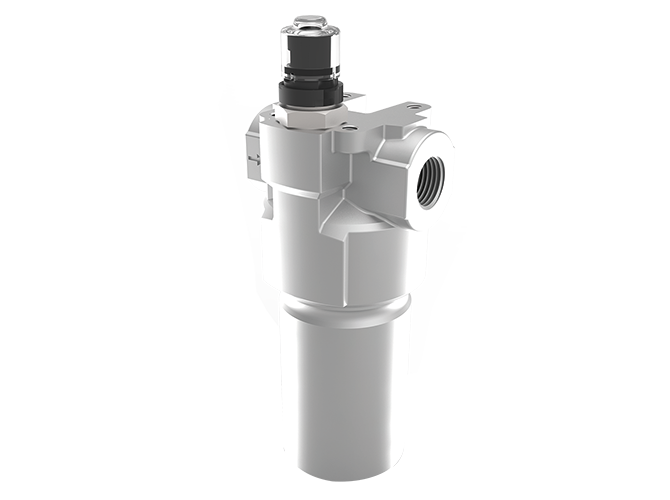

Argo-Hytos D 042 Pressure Filter (High Performance)
The Argo-Hytos D 042 is a compact in-line pressure filter designed for use in the pressure circuits of hydraulic and lubrication systems. Rated to 100 bar and a nominal flow of 44 l/min, it delivers full-flow filtration capable of meeting the most demanding oil cleanliness requirements.
Installed close to control valves or high-value components, the D 042 provides targeted contamination protection right where it matters. Its bypass valve remains closed through cold start conditions, ensuring protection during warm-up.
Key Specifications:
- Nominal flow rate: 44 l/min (11.6 GPM)
- Max. operating pressure: 100 bar (1450 PSI)
- Connection: G½ / -8 SAE
- Filter media: EXAPOR®MAX 3 inorganic multi-layer microfibre
- Housing material: Aluminium alloy
- Temperature range: -30°C to +100°C
- Compatible fluids: Mineral oil and biodegradable fluids (HEES, HETG)
- Optional electrical and/or optical clogging indicators available
| Type | Q nom. l/min (GPM) | P max. bar (PSI) | Connection |
| D 042 (High Performance) | 44 (11.6) | 100 (1450) | G½ (-8 SAE) |
