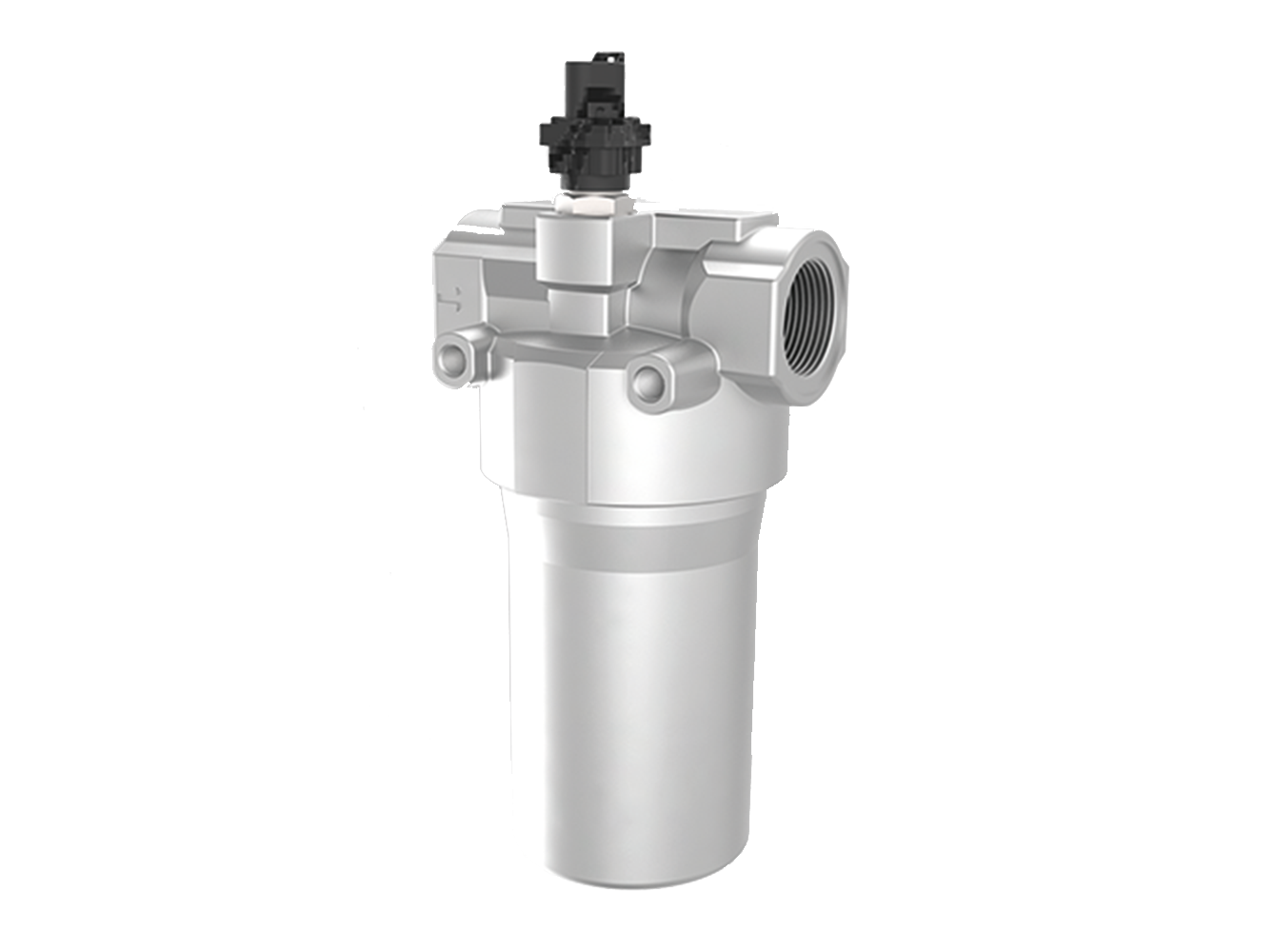

Argo-Hytos D 232 Pressure Filter (High Performance)
The Argo-Hytos D 232 steps up flow capacity within the same 63 bar rated family, handling nominal flows of 300 l/min through G1½ / -24 SAE ported connections. It's designed for medium-to-high flow hydraulic pressure circuits where reliable contamination control protects expensive downstream components.
Star-pleated EXAPOR®MAX 3 media delivers a high surface area with low pressure drop. Clogging indicators — optical or electrical — can be integrated directly into the filter head for straightforward condition monitoring.
Key Specifications:
- Nominal flow rate: 300 l/min (79.3 GPM)
- Max. operating pressure: 63 bar (914 PSI)
- Connection: G1½ / -24 SAE
- Filter media: EXAPOR®MAX 3 inorganic multi-layer microfibre
- Housing material: Aluminium alloy
- Filter fineness: 5–16 µm(c) (β-values to ISO 16889)
- Temperature range: -30°C to +100°C
- Compatible fluids: Mineral oil and biodegradable fluids (HEES, HETG)
- Mounting position: Preferably vertical, filter head on top
| Type | Q nom. l/min (GPM) | P max. bar (PSI) | Connection |
| D 232 (High Performance) | 300 (79.3) | 63 (914) | G1½ (-24 SAE) |
