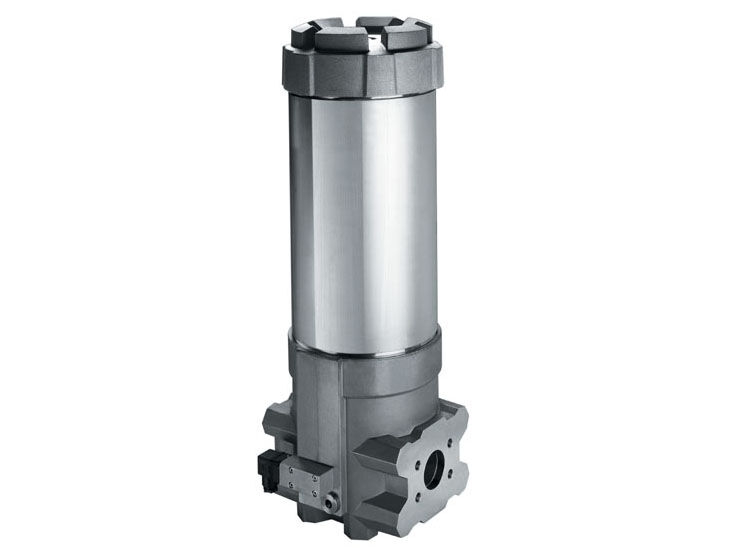

Argo-Hytos FNL 2000 Low-Pressure In-Line Filter (High Performance)
The Argo-Hytos FNL 2000 is a high-capacity low-pressure in-line filter rated to 40 bar, capable of handling nominal flows up to 1450 l/min. It's the right choice for large hydraulic and lubrication systems where high flow rates and exceptional oil cleanliness must coexist.
EXAPOR®MAX 3 microfibre media, combined with star-pleated construction, provides a large filtration surface with minimal pressure drop. Clogging indicators ensure maintenance is performed at the right time — not too early, not too late.
Key Specifications:
- Nominal flow rate: 1450 l/min (383 GPM)
- Max. operating pressure: 40 bar (580 PSI)
- Connection: SAE 4
- Filter media: EXAPOR®MAX 3 inorganic multi-layer microfibre
- Housing material: Aluminium alloy
- Filter fineness: 5–10 µm(c) (β-values to ISO 16889)
- Temperature range: -30°C to +100°C
- Compatible fluids: Mineral oil and biodegradable fluids (HEES, HETG)
- Mounting position: Preferably vertical, filter head at bottom
| Type | Q nom. l/min (GPM) | P max. bar (PSI) | Connection |
| FNL 2000 (High Performance) | 1450 (383) | 40 (580) | SAE 4 |
