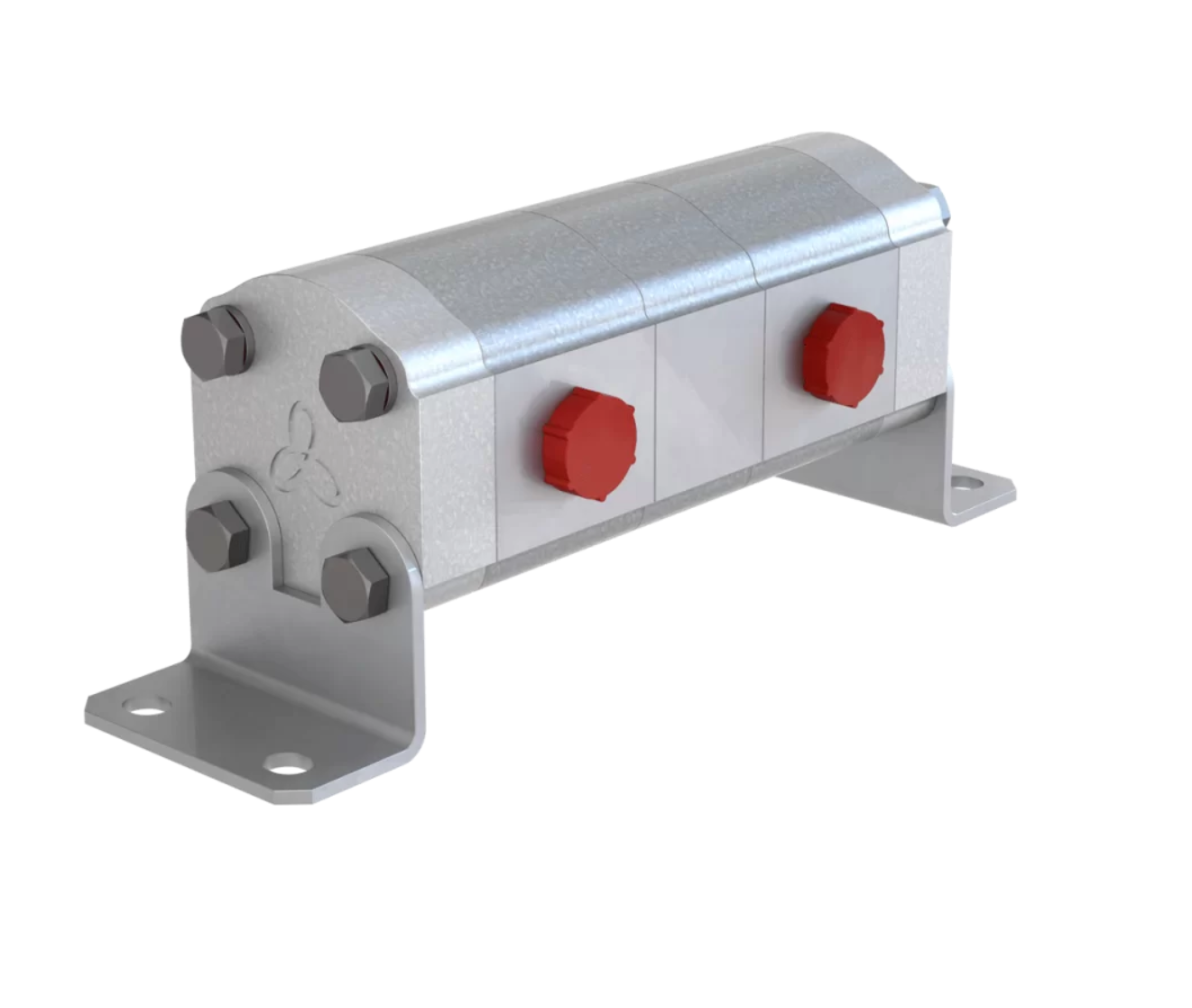

Blue Ascend AFD10 Hydraulic Gear Flow Divider — Group 10
Engineered for systems that demand equal flow distribution, the Blue Ascend AFD10 is a compact gear-type flow divider suited to light and medium-duty hydraulic circuits. Available in 11 displacement sizes from 1.2 to 9.5 cc/rev, this series covers a broad range of low-to-moderate flow applications where precise flow splitting, balancing, or pressure regulation is required.
Key Specifications:
- Displacement range: 1.2 – 9.5 cc/rev
- Maximum working pressure: 220 bar (peak 280 bar)
- Maximum speed: 3,500 rpm (smaller displacements); 3,000 rpm (larger displacements)
- Minimum speed: 1,200 rpm
- Flow range: 1.5 – 28.5 l/min depending on model
- Pressure differential (ΔP): 40 bar
Need help selecting the right model? Contact the FPD team in Hamilton on (07) 849 5771 — we're here to help you get the right part, first time.
| Flow Divider Type | Displacement (cc/rev) | Max. Pressure 1 (bar) | Max. Pressure 2 (bar) | ΔP (bar) | Max. Speed (rpm) | Min. Speed (rpm) | Min/Max Flow Rate (l/min) |
| AFD10.012 | 1.2 | 220 | 280 | 40 | 3500 | 1200 | 1.5/4.2 |
| AFD10.017 | 1.7 | 220 | 280 | 40 | 3500 | 1200 | 2.0/6.0 |
| AFD10.023 | 2.3 | 220 | 280 | 40 | 3500 | 1200 | 2.8/8.0 |
| AFD10.027 | 2.7 | 220 | 280 | 40 | 3500 | 1200 | 3.2/9.5 |
| AFD10.032 | 3.2 | 220 | 280 | 40 | 3500 | 1200 | 3.8/10.8 |
| AFD10.038 | 3.8 | 220 | 280 | 40 | 3000 | 1200 | 4.6/11.4 |
| AFD10.043 | 4.3 | 220 | 280 | 40 | 3000 | 1200 | 5.2/12.9 |
| AFD10.050 | 5 | 220 | 280 | 40 | 3000 | 1200 | 6.0/15.0 |
| AFD10.063 | 6.3 | 220 | 280 | 40 | 3000 | 1200 | 7.6/18.9 |
| AFD10.078 | 7.8 | 210 | 260 | 40 | 3000 | 1200 | 9.4/23.4 |
| AFD10.095 | 9.5 | 200 | 240 | 40 | 3000 | 1200 | 11.4/28.5 |
