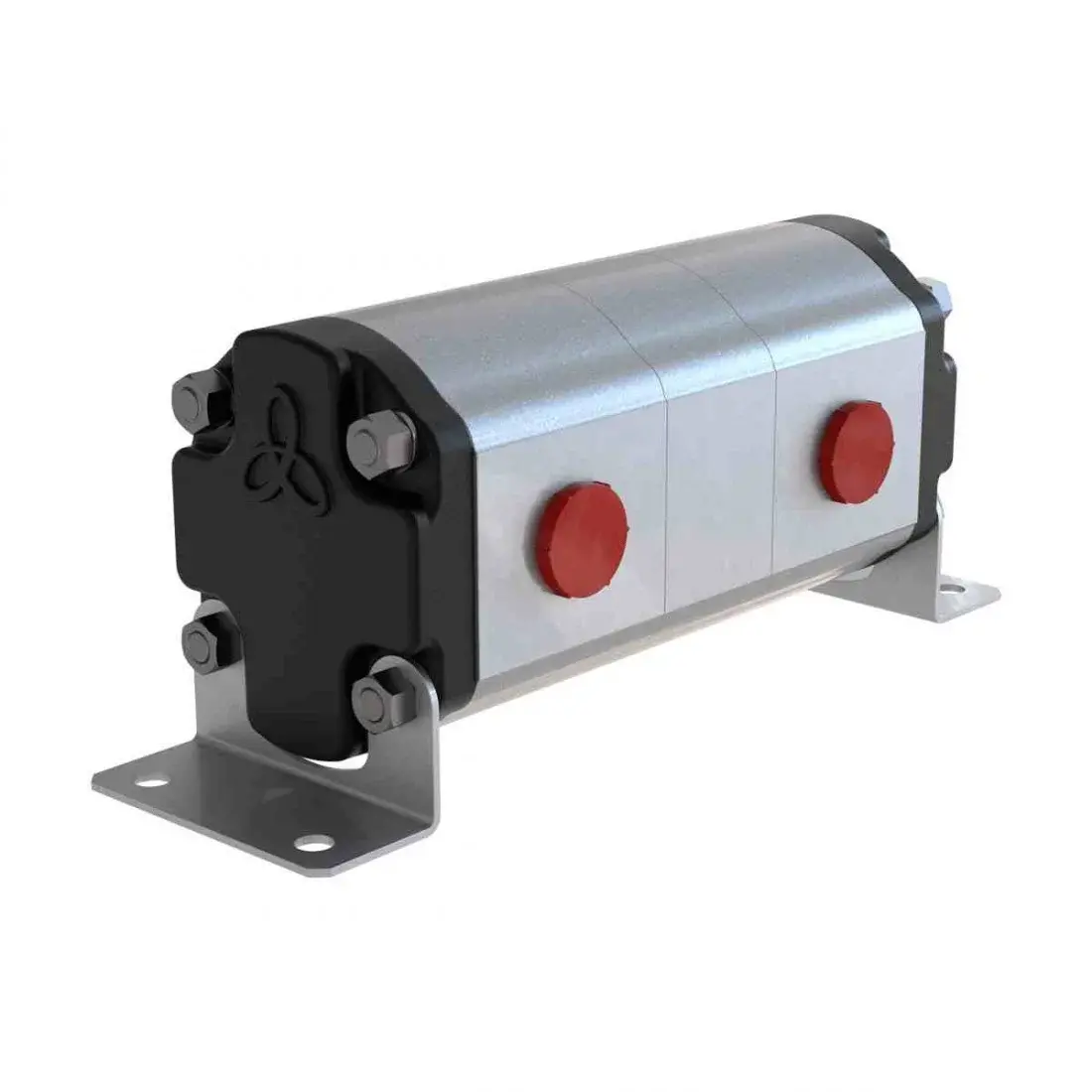

Blue Ascend AFD30 Hydraulic Gear Flow Divider — Group 30
The Blue Ascend AFD30 is a heavy-duty gear-type flow divider designed for high-flow hydraulic systems where precise load sharing and equal actuation are critical. Covering 14 displacement sizes from 17 to 100 cc/rev, the AFD30 series is the go-to choice for demanding industrial, forestry, mining, and large-scale agricultural applications.
Key Specifications:
- Displacement range: 17 – 100 cc/rev
- Maximum working pressure: 250 bar (peak 280 bar, smaller displacements); tapering to 140 bar at 100 cc/rev
- Maximum speed: 3,000 rpm (smaller displacements); 2,000 rpm (larger displacements)
- Minimum speed: 900 – 1,100 rpm depending on model
- Flow range: 18.7 – 200 l/min depending on model
- Pressure differential (ΔP): 60 bar
Need help selecting the right model? Contact the FPD team in Hamilton on (07) 849 5771 — we're here to help you get the right part, first time.
| Flow Divider Type | Displacement (cc/rev) | Max. Pressure 1 (bar) | Max. Pressure 2 (bar) | ΔP (bar) | Max. Speed (rpm) | Min. Speed (rpm) | Min/Max Flow Rate (l/min) |
| AFD30.X-17N | 17 | 250 | 280 | 60 | 3000 | 1100 | 18.7/51.0 |
| AFD30.X-22N | 22 | 250 | 280 | 60 | 3000 | 1100 | 24.2/66.0 |
| AFD30.X-27N | 27 | 250 | 280 | 60 | 3000 | 1100 | 29.7/81.0 |
| AFD30.X-34N | 34 | 240 | 270 | 60 | 3000 | 1100 | 37.4/102.0 |
| AFD30.X-38N | 38 | 240 | 270 | 60 | 3000 | 1100 | 41.8/114.0 |
| AFD30.X-43N | 43 | 230 | 260 | 60 | 3000 | 1100 | 47.3/129.0 |
| AFD30.X-47N | 47 | 230 | 260 | 60 | 2500 | 1000 | 47.0/117.5 |
| AFD30.X-51N | 51 | 210 | 240 | 60 | 2500 | 1000 | 51.0/127.5 |
| AFD30.X-56N | 56 | 200 | 230 | 60 | 2500 | 1000 | 56.0/140.0 |
| AFD30.X-61N | 61 | 180 | 210 | 60 | 2500 | 1000 | 61.0/152.5 |
| AFD30.X-73N | 73 | 170 | 200 | 60 | 2000 | 900 | 65.7/146.0 |
| AFD30.X-82N | 82 | 160 | 190 | 60 | 2000 | 900 | 73.8/164.0 |
| AFD30.X-90N | 90 | 150 | 180 | 60 | 2000 | 900 | 81.0/180.0 |
| AFD30.X-100 | 100 | 140 | 170 | 60 | 2000 | 900 | 90.0/200.0 |
