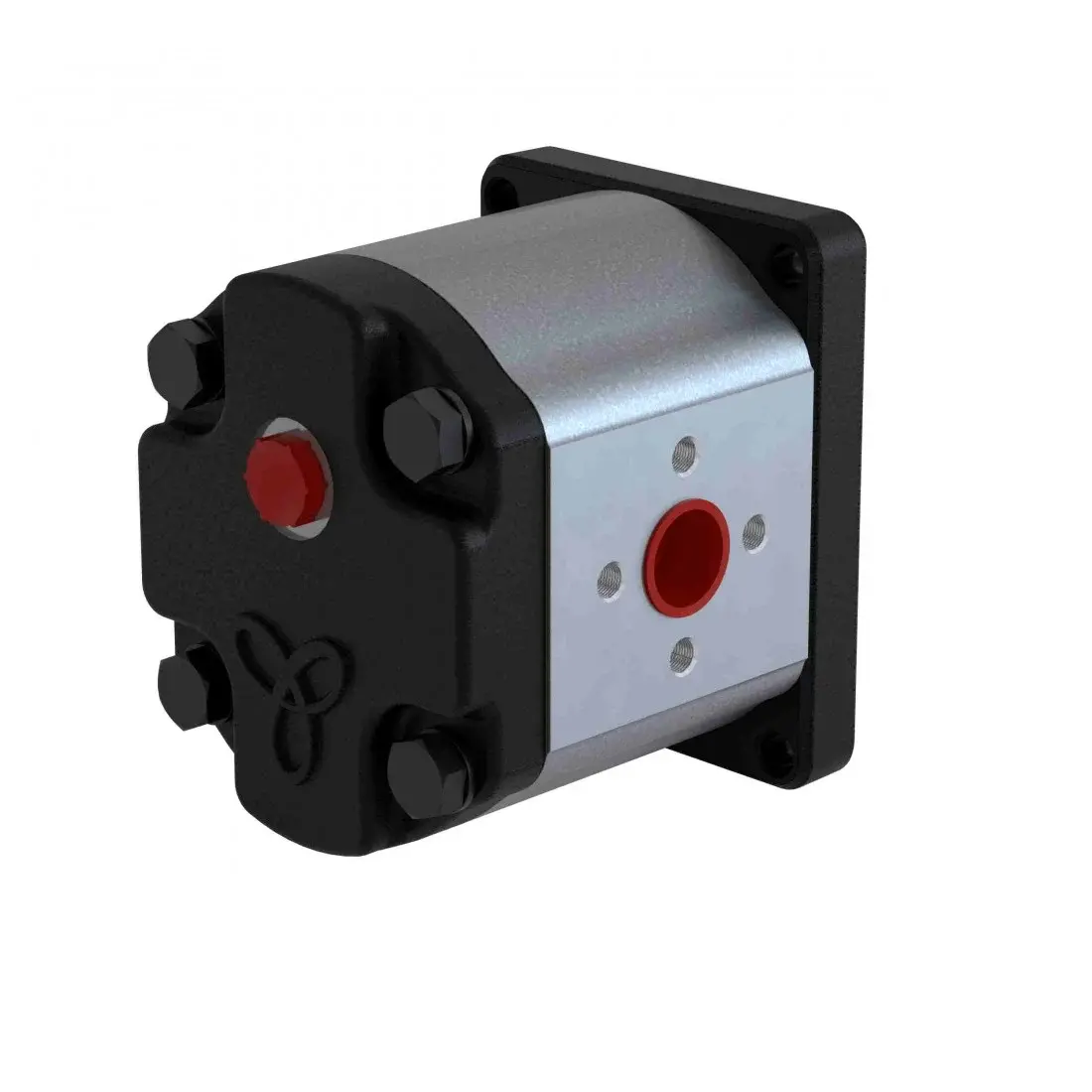

Blue Ascend Group 30 — More Displacement, More Torque, Same Compact Thinking

The Blue Ascend APM30 steps up from the Group 20 frame for applications that need higher displacement and greater output without moving to a cast-iron unit. The aluminium body keeps weight in check, while a broad displacement range and extensive mounting, shaft and port options let you spec it precisely to your machine — and we hold the brand in stock.

Why the APM30

• Aluminium body — strong output without cast-iron weight
• Bi-rotational: counter-clockwise, clockwise or reversible
• Larger Group 30 displacement range for higher-demand drives
• Wide choice of front covers, shafts and ports for direct fit
• NBR or Viton seals to match your fluid and operating temperature

Key specifications

• Displacement range: 17.0 – 100.0 cm³/rev
• Max pressure: up to 250 bar (tapering on larger displacements — e.g. 140 bar at 100.0 cm³/rev)
• Max speed: up to 3,000 rev/min (lower on higher displacements, down to 1,500 rev/min)
• Outboard bearing option for higher radial-load applications
• Drain line options: G1/4, 7/16-20 UNF, or M12x1.5

Configure to fit

• Front covers: square flange, SAE A/B, 2-bolt and 4-bolt centring, 3-bolt UNI
• Shafts: tapered key, parallel, SAE splined, and DIN 5463 options
• Ports: rectangular, diamond, SAE metric and UNC square flange, BSP, and SAE UNF O-ring
• Rear cover options including relief valves, flow divider, check and load-sensing valves

Typical applications

Larger-displacement aluminium gear motors like the APM30 suit higher-torque rotary drives — conveyors, augers, drum and reel drives, fan and cooler drives, and ancillary power across agriculture, construction, materials handling, forestry and transport.

Source it from FPD

We stock Blue Ascend hydraulics and know how to spec them. Give us your displacement, rotation, mounting and port requirements and we'll confirm the right APM30 build for your application — backed by nearly 40 years of NZ hydraulic expertise.

Get a price and availability — call (07) 849 5771 or request a quote today.
