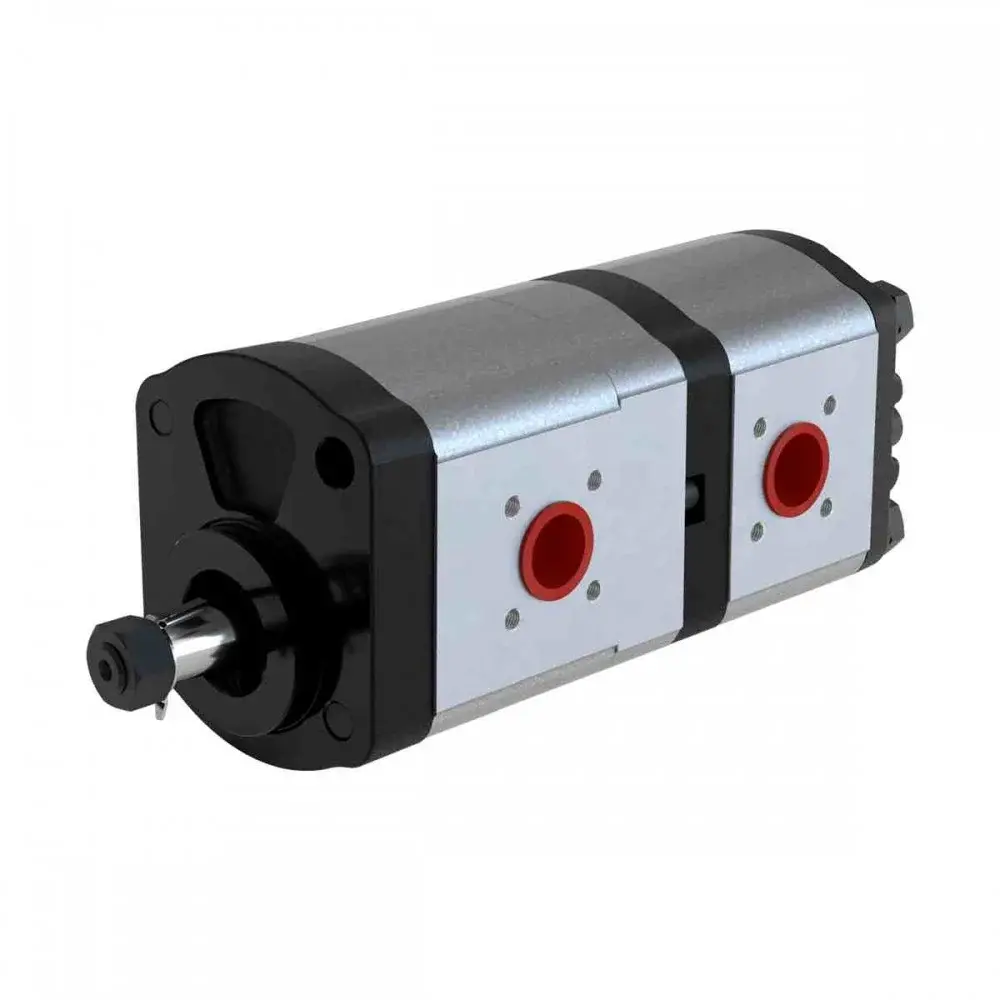

Blue Ascend Aluminium Body Modular Pump – Group 20-20
Model: AP20 FAB / RAB
A dual-section modular pump pairing a Group 20 front section with a Group 20 rear section. Provides two independent flow outputs with isolated oil compartments, enabling each circuit to run different fluids if required. Part of the same modular assembly system as the single-section Group 20 FAB/MAB/RAP.
Key Specifications:
- Gear type: Normal gear
- Displacement range: 3.9 – 40.0 cc/rev per section
- Maximum pressure: up to 250 bar
- Maximum speed: up to 3,500 rpm
- Body: Aluminium
- Note: Compartment isolation — no oil transfer between sections
| Pump Type | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| AP20.040 | 3,9 | 250 | 3500 | 650 |
| AP20.060 | 5,9 | 250 | 3500 | 650 |
| AP20.080 | 8,0 | 250 | 3500 | 650 |
| AP20.095 | 9,4 | 250 | 3500 | 600 |
| AP20.115 | 11,4 | 250 | 3000 | 600 |
| AP20.140 | 13,9 | 250 | 3000 | 600 |
| AP20.160 | 16,0 | 250 | 3000 | 600 |
| AP20.190 | 19,2 | 250 | 3000 | 600 |
| AP20.220 | 21,9 | 210 | 2500 | 600 |
| AP20.250 | 24,8 | 190 | 2500 | 600 |
| AP20.280 | 27,9 | 170 | 2200 | 600 |
| AP20.320 | 32,0 | 160 | 2000 | 500 |
| AP20.340 | 34,0 | 150 | 2000 | 500 |
| AP20.380 | 38,0 | 140 | 1750 | 500 |
| AP20.400 | 40,0 | 130 | 1750 | 500 |
