Blue Ascend Fan Motor – Group 20

Blue Ascend Fan Motor – Group 20

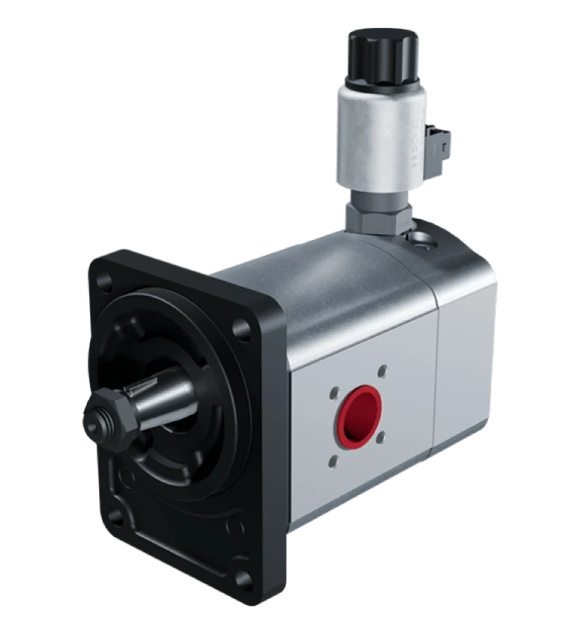

Model: APM20

Compact Hydraulic Fan Motor for Demanding Cooling Applications

The Blue Ascend APM20 is a compact aluminium-body gear motor purpose-built for hydraulic cooling fan drives. With 15 displacement options from 3.9 cc to 40.0 cc, it covers a wide range of vehicle and machine cooling requirements in a robust, lightweight package.

Key Specifications:

• Displacement range: 3.9 – 40.0 cc/rev
• Maximum pressure: 250 bar (smaller displacements); 140 bar (larger displacements)
• Maximum speed: up to 3,500 rpm
• Minimum speed: 500 – 650 rpm depending on displacement
• Body type: aluminium

Typical Applications:

Hydraulic cooling fan circuits in construction machinery, agricultural equipment, mining vehicles, and industrial plant. Check with the FPD team to confirm suitability for your application.

Why FPD?

FPD carries Blue Ascend fan motors and pumps to give NZ customers access to a well-proven, cost-effective cooling solution. Our team can help you match the right displacement to your system's flow and pressure requirements. Call us on (07) 849 5771 for availability and pricing.
