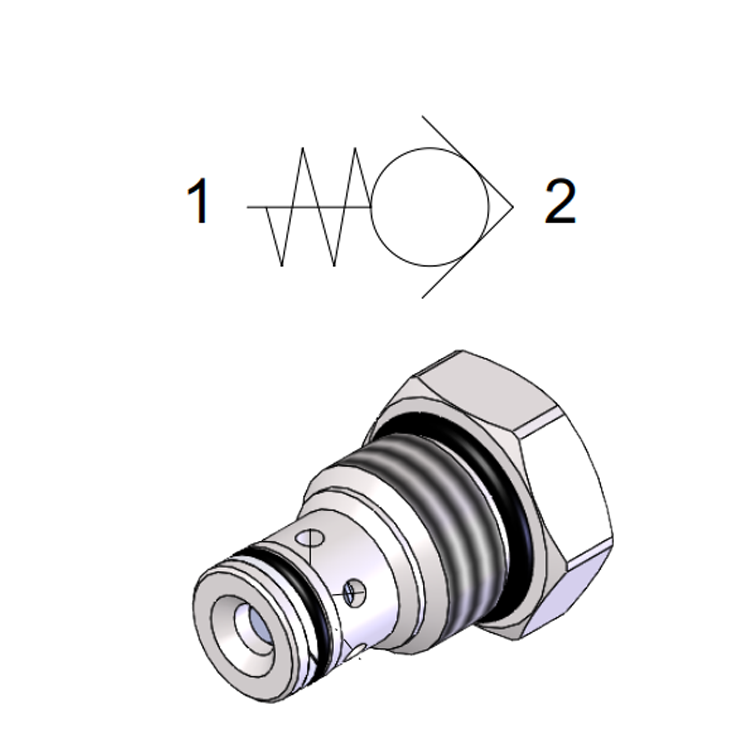

Cartridge Check Valve 7/8-14 UNF-2A (60l/min)
Rated for a higher max flow of 60 l/min, making it the right choice when higher circuit throughput is needed within the same cavity format.
Dual cracking pressure options give flexibility for circuits requiring either low-resistance free-flow or a firmer check.
Key Specifications
- Type: Cartridge check valve
- Thread: 7/8-14 UNF-2A | Tightening torque: 35–50 Nm (HEX 27)
- Max. pressure: 350 bar
- Max. flow: 60 l/min
- Cracking pressure options: 1 bar (standard), 3 bar
- Cavity code: DO-590.007.52.2S
- Seal options: NBR 70 Shore A (standard) | Viton (on request)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
- Filtration standard: ISO 4406
| Thread | Max. Pressure (bar) | Max. Flow (l/min) |
| 7/8-14 UNF-2A | 350 | 60 |
