Cross-Over Relief Valve, OMS Motor Flangeable
Designed to bolt directly onto the Danfoss OMS orbital motor face. The smaller OMS motor port pattern results in a marginally smaller manifold body and a 50 l/min max flow rating, but the same four variants (single/dual, with/without brake release) and setting range options apply.
Key Specifications
- Type: Cross-over direct acting relief valve, OMS motor flange mount
- Port size (C1-C2): 1/2" BSPP
- Brake release port (SF): 1/4" BSPP (SF variants only)
- Max. pressure: 350 bar
- Max. flow: 50 l/min

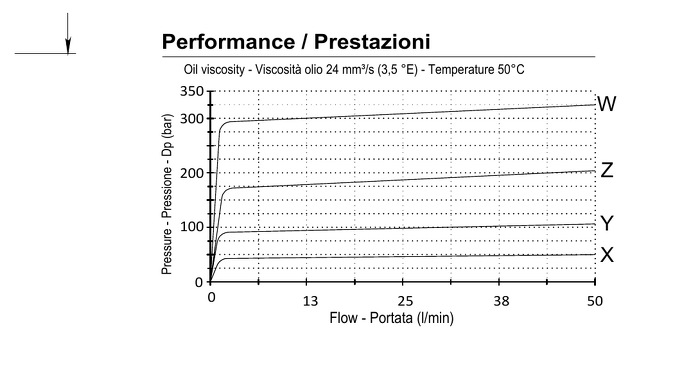

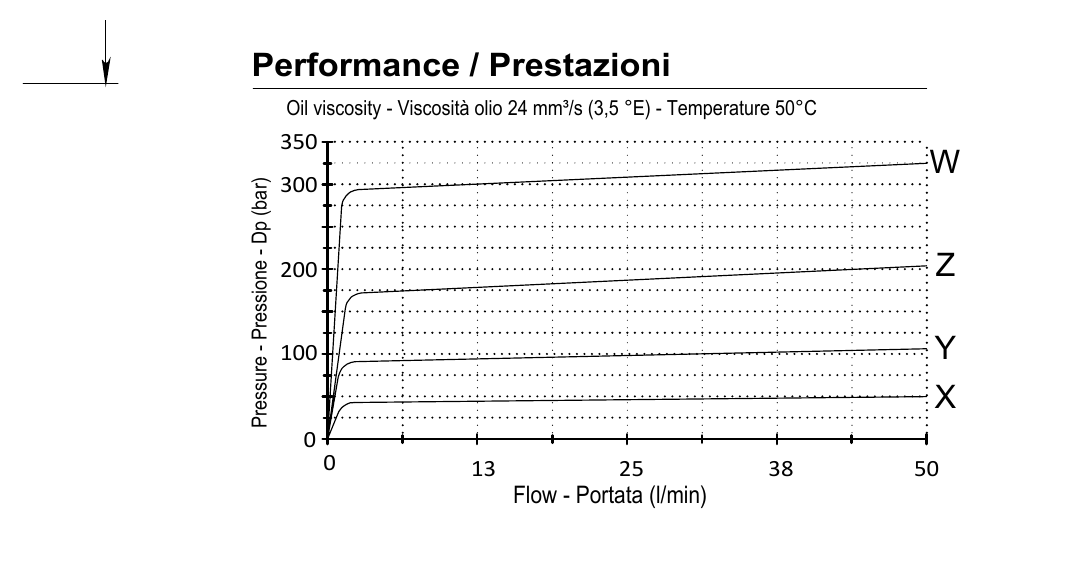

- Setting ranges: X: 10–50 bar | Z: 10–180 bar (std, 90 bar) | W: 80–300 bar (std 150 bar)

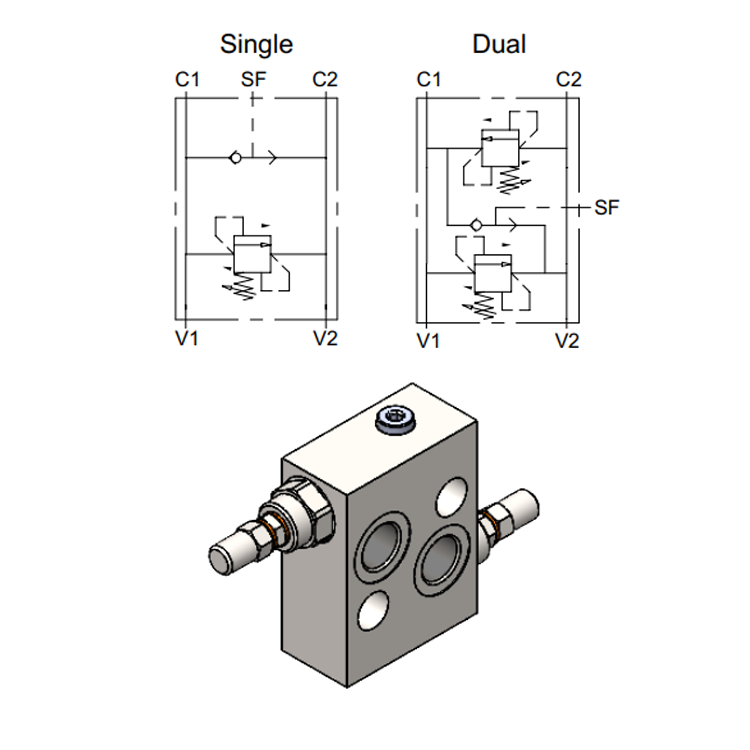

- Variants: RVD-OMS-2 (dual) | RVD-OMS-2-SF (dual + brake release) | RVD-OMS-1 (single) | RVD-OMS-1-SF (single + brake release)
- Manifold material: Zinc plated steel
- Seal options: NBR (standard) | Viton on request
- Fluid temperature: -20°C to +90°C
| Thread C1-C2 | SF Port | Denomination | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 1/2 BSPP | - | RVD-OMS-2 (Dual) | 350 | 50 | X: 10-50 bar | 30 |
| 1/2 BSPP | 1/4 BSPP | RVD-OMS-2-SF (Dual + brake release) | 350 | 50 | Z: 10-180 bar (Std) | 90 |
| 1/2 BSPP | - | RVD-OMS-1 (Single) | 350 | 50 | W: 80-300 bar | 150 |
| 1/2 BSPP | 1/4 BSPP | RVD-OMS-1-SF (Single + brake release) | 350 | 50 | W: 80-300 bar | 150 |
