Dual Cross-Over Direct Acting Relief Valve (180° Ports)

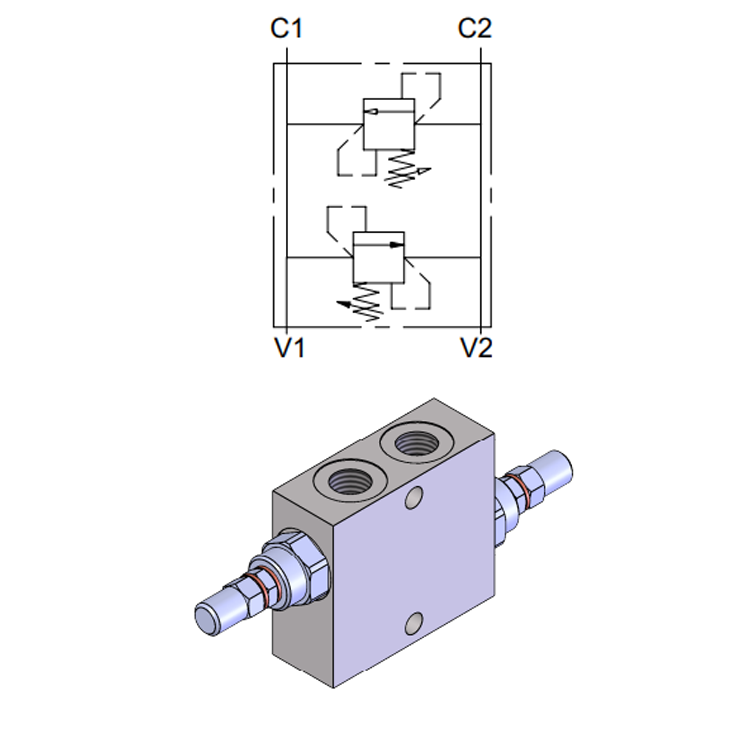

Dual cross-over relief function in a 180° (in-line) port configuration, with work ports and cylinder ports on opposing faces of the manifold body. This layout is widely used for overload and shock protection on hydraulic orbital and piston motors across the 1/4" to 3/4" BSPP port range.
Four port sizes are available, each with a different max flow rating.
Key Specifications
- Type: Dual cross-over direct acting relief valve, 180° (in-line) port orientation
- Port sizes: 1/4", 3/8", 1/2", 3/4" BSPP
- Max. pressure: 350 bar
- Max. flow: 30 l/min (1/4") up to 110 l/min (3/4")

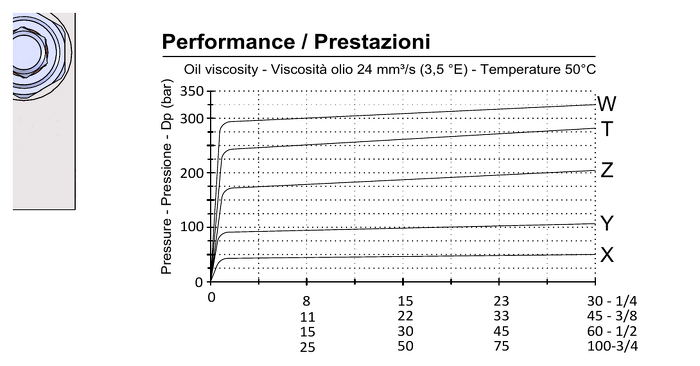

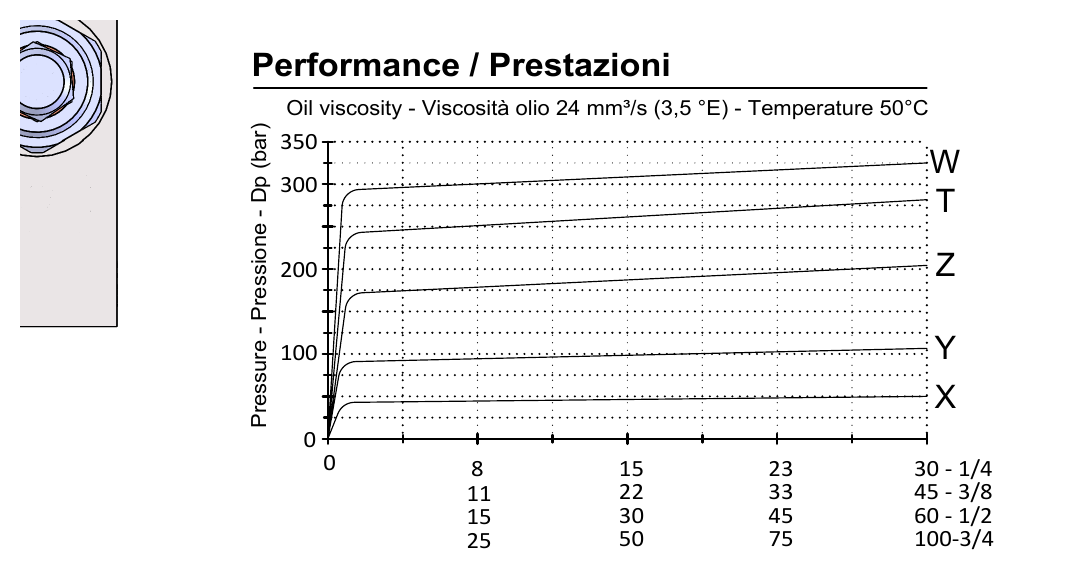

- Setting ranges: X: 10–50 bar | Y: 20–100 bar | Z: 10–180 bar (std, 90 bar) | T: 50–250 bar | W: 80–300 bar
- Manifold material: Zinc plated steel
- Adjustment: Screw with steel cap (standard) | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) | Viton on request
- Fluid temperature: -20°C to +90°C
| Thread (P) | Thread (T) | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 1/4 BSPP | 1/4 BSPP | 350 | 30 | X: 10-50 bar | 30 |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | Z: 10-180 bar (Std) | 90 |
| 1/2 BSPP | 1/2 BSPP | 350 | 70 | W: 80-300 bar | 150 |
| 3/4 BSPP | 3/4 BSPP | 350 | 110 | T: 50-250 bar | 130 |
