Differential Relief Valve in Manifold with Manometer Port

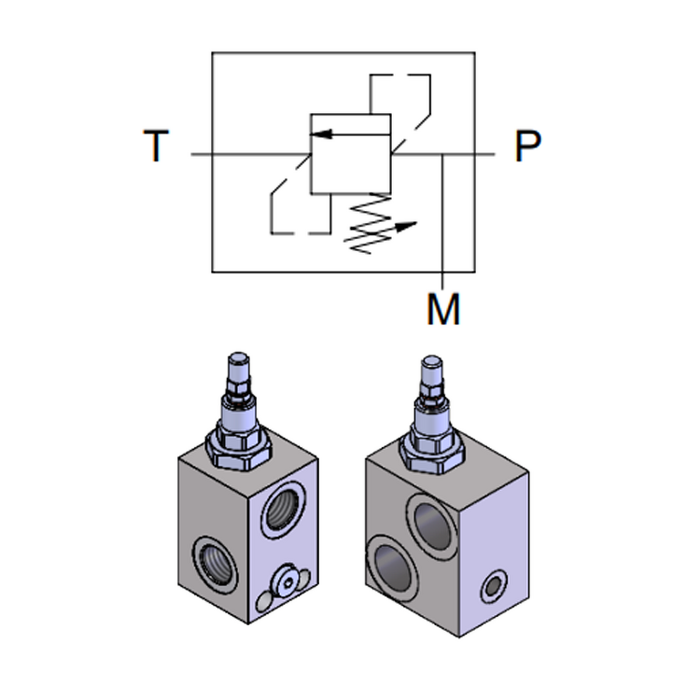

Differential relief cartridge in a zinc plated steel manifold body with an integral 1/4" BSPP gauge port — allowing a pressure gauge or transducer to be connected directly at the relief valve without additional fittings. Available in 3/4" and 1" BSPP port sizes, it is rated to 400 bar and 160 l/min.
The gauge port makes the RVDD-M-160 particularly useful during commissioning, fault-finding, and performance verification of high-pressure circuits.
Key Specifications
- Type: Differential relief valve in manifold with gauge port
- Port sizes: 3/4" or 1" BSPP
- Gauge (manometer) port: 1/4" BSPP
- Max. pressure: 400 bar
- Max. flow: 160 l/min

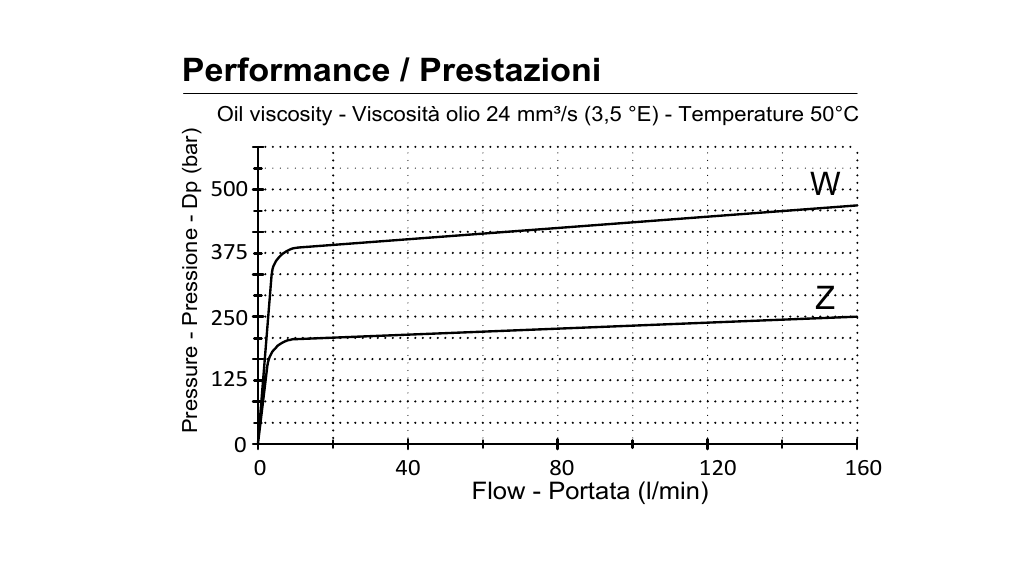

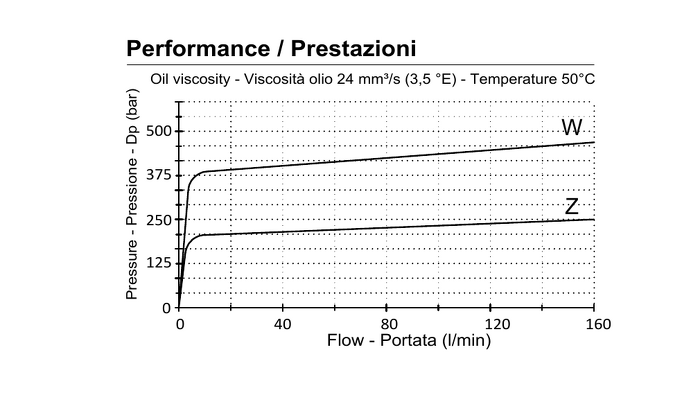

- Setting ranges: Z: 20–200 bar (std 160 bar) | W: 50–400 bar (std 180 bar)
- Manifold material: Zinc plated steel
- Adjustment: Screw with steel cap (standard) | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) | Viton on request
- Fluid temperature: -20°C to +90°C
| Thread (P-T) | Manometer Port | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 3/4 BSPP | 1/4 BSPP | 400 | 160 | Z: 20-200 bar | 160 |
| 3/4 BSPP | 1/4 BSPP | 400 | 160 | W: 50-400 bar (Std) | 180 |
| 1" BSPP | 1/4 BSPP | 400 | 160 | Z: 20-200 bar | 160 |
| 1" BSPP | 1/4 BSPP | 400 | 160 | W: 50-400 bar (Std) | 180 |
