Double Direct Acting Relief Valve with Manifold

Double Direct Acting Relief Valve with Manifold

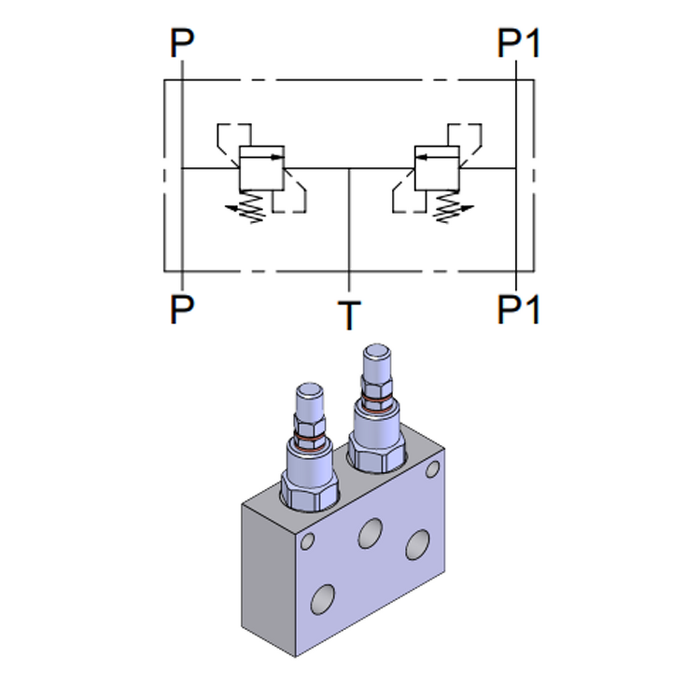

Integrates two fully independent direct acting relief cartridges in a single manifold body, each independently settable. The P and P1 ports are separate inlet connections, both relieving to the shared tank port T — allowing two different circuit pressures to be independently protected with a single compact valve assembly.

Available in 3/8" and 1/2" BSPP port sizes, with max flow of 45 l/min (3/8") and 70 l/min (1/2").

Key Specifications

• Type: Double direct acting relief valve in manifold (two independent circuits)
• Port sizes: 3/8" or 1/2" BSPP (P, P1, T)
• Max. pressure: 350 bar
• Max. flow: 45 l/min (3/8") | 70 l/min (1/2")

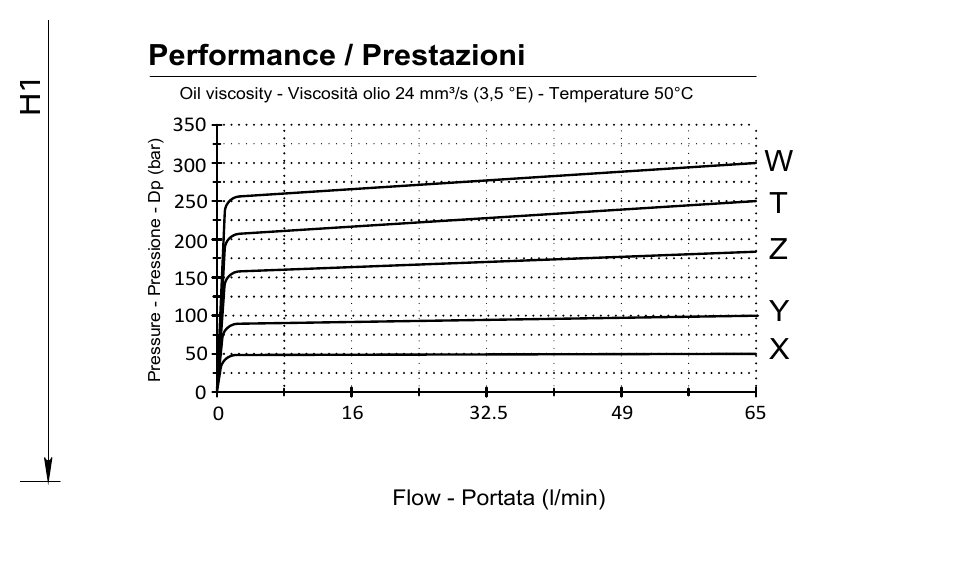

• Setting ranges: X: 10–50 bar | Y: 20–100 bar | Z: 10–180 bar (std, 90 bar) | T: 50–250 bar | W: 80–300 bar
• Each cartridge independently settable
• Manifold material: Zinc plated steel
• Adjustment: Screw with steel cap (standard) | Tamper cap | Handknob with locknut
• Seal options: NBR (standard) | Viton on request
• Fluid temperature: -20°C to +90°C
