Dual Pilot Operated Check Valve with Adjustable Banjo Union

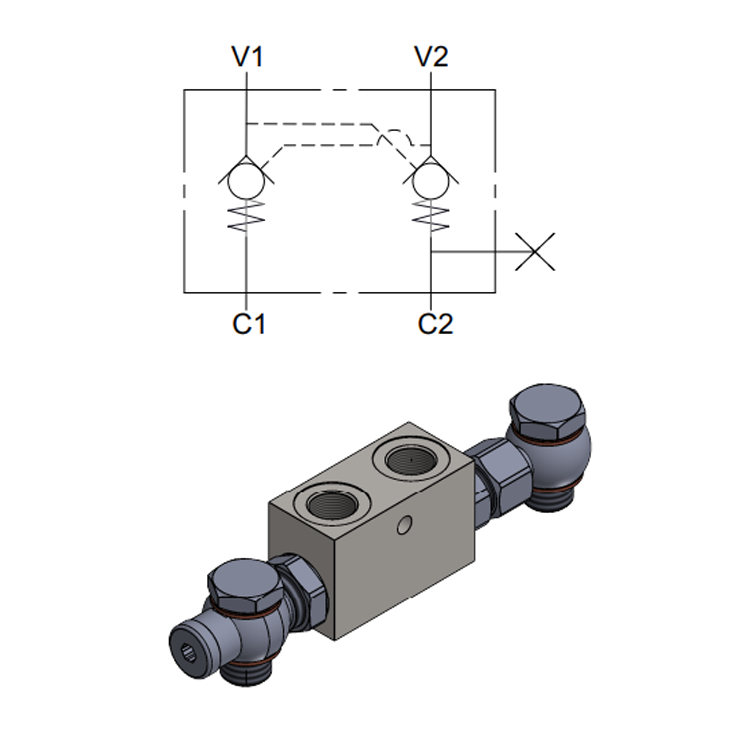

The Dual Pilot Operated Check Valve with Adjustable Banjo Union adds an adjustable (orientable) banjo union to the pilot connections of the dual POC-2-DIN body. The banjo can be rotated to align the pilot tubing with the available routing path in the installation, removing the need to bend or reform the pilot line to reach a fixed port orientation.
Available in 3/8" BSPP work ports only as a single standard configuration.
Key Specifications
- Type: Dual pilot operated check valve with adjustable banjo pilot union
- Work port size (V1-V2): 3/8" BSPP
- Pilot connection (C1-C2): Ø12 mm / 3/8" BSPP banjo (orientable)
- Max. pressure: 350 bar
- Max. flow: 30 l/min
- Pilot ratio: 5.5:1
- Cracking pressure: 3 bar (standard) | 1 bar or 8 bar on request
- Seal options: NBR 70 Shore A (standard)
- External finish: Zinc plated, steel body
- Fluid temperature: -20°C to +90°C
| Thread V1-V2 | Thread C1-C2 | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| 3/8 BSPP | Ø12 / 3/8 BSPP | 350 | 30 | 5.5:1 |
