Flangiable Dual Pilot Operated Check Valve

Flangiable Dual Pilot Operated Check Valve

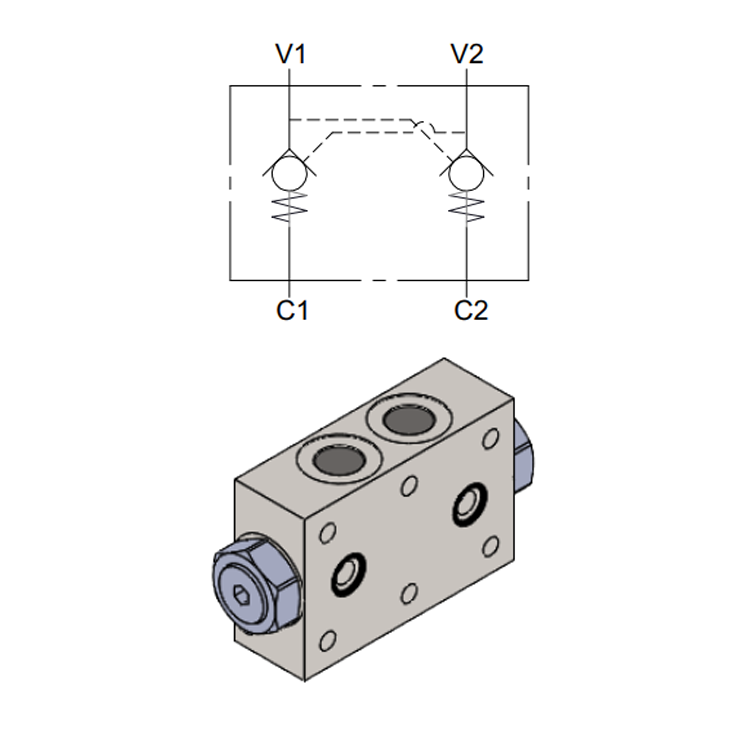

Dual-circuit flange-mount variant providing both A and B line pilot-released load-holding in a single flange-mount body. Like the POC-1-FL, it eliminates hose connections at the valve-to-cylinder interface.

Available in 3/8" and 1/2" BSPP work port sizes in zinc plated steel as standard, with aluminium available on request.

Key Specifications

• Type: Dual pilot operated check valve, flange mount
• Work port sizes (V1-V2 / C1-C2): 3/8" BSPP | 1/2" BSPP
• Pilot port (ØF): Ø6 mm (3/8") | Ø9 mm (1/2")
• Max. pressure: 350 bar

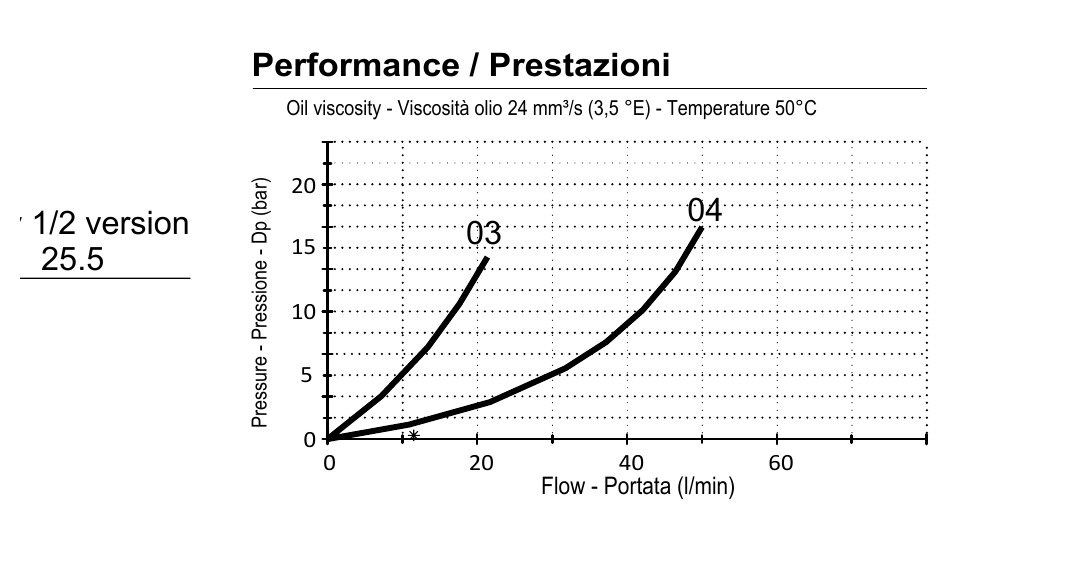

• Max. flow: 30 l/min (3/8") | 60 l/min (1/2")
• Pilot ratio: 6.25:1 (3/8") | 4:1 (1/2")
• Cracking pressure: 3 bar (standard) | 1 bar or 8 bar on request
• Seal options: NBR 70 Shore A (standard)
• Body material: Zinc plated steel (standard); aluminium on request
• Fluid temperature: -20°C to +90°C
