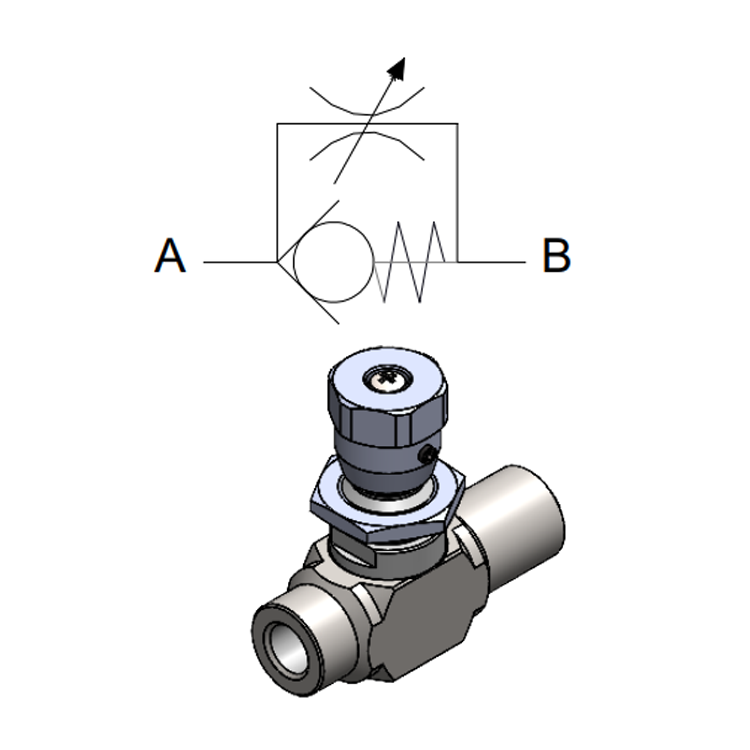

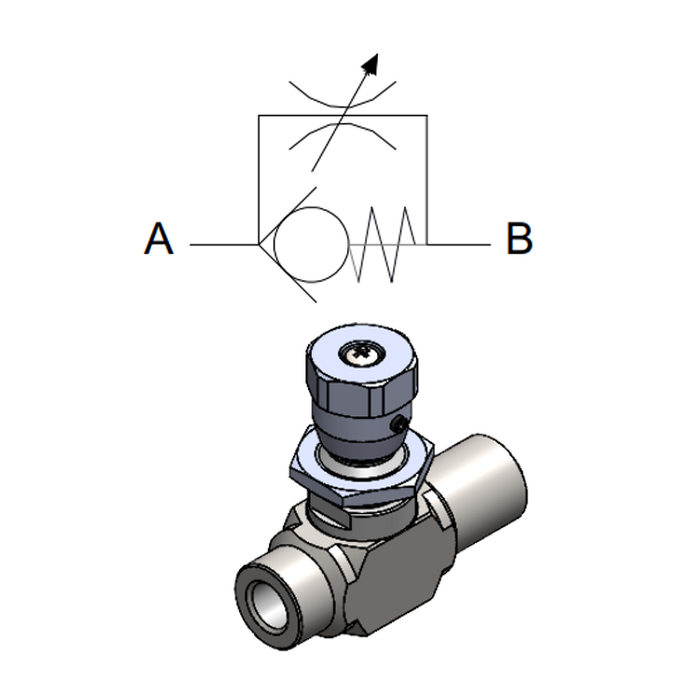

Inline Unidirectional flow regulator (90°)
unidirectional in-line flow regulator with a 90° port orientation, allowing controlled flow from A to B while allowing free-flow in the return direction. The adjustable needle with locking screw makes it easy to set and hold your required flow rate in the field.
A robust zinc-plated body, high-pressure rating across all port sizes, and a choice of seal materials make this valve suitable for a wide range of hydraulic circuits in mobile plant, agricultural, and industrial applications.
Key Specifications
- Type: Unidirectional flow regulator, 90° port orientation
- Port sizes: 1/4", 3/8", 1/2", 3/4", 1" BSPP
- Max. pressure: 400 bar (all port sizes)
- Max. flow: 15 l/min (1/4") up to 150 l/min (1")
- Seal options: NBR (standard) or Viton (on request)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
- Filtration standard: ISO 4406
| Thread (A-B) | Max. Pressure (bar) | Max. Flow (l/min) |
| 1/4 BSPP | 400 | 15 |
| 3/8 BSPP | 400 | 30 |
| 1/2 BSPP | 400 | 50 |
| 3/4 BSPP | 400 | 80 |
| 1" BSPP | 400 | 150 |
