Kawasaki K3VL Pump

Kawasaki K3VL Pump

Genuine KPM, Authorised NZ Support

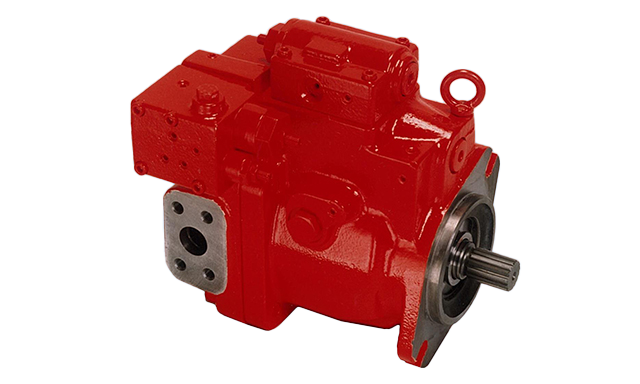

As New Zealand's authorised distributor for Kawasaki (KPM) hydraulic components, FPD supplies and supports the K3VL series — variable-displacement axial piston pumps of swash-plate design, purpose-built for construction, off-highway and general industrial machinery that need precise, medium-to-high pressure control rather than just raw output. A refined internal design significantly reduces pressure pulsation, giving smoother, more consistent operation than older-generation pumps.

Why K3VL

• Advanced control flexibility — load-sensing, remote unload, variable pressure, torque-limiting and horsepower control are all available, so the pump can be matched precisely to your machine's hydraulic system rather than forcing a compromise
• Reduced pressure pulsation, contributing to smoother operation and lower stress on downstream hydraulic components
• High pump efficiency and low noise output, supporting better fuel economy and a more comfortable operating environment
• Wide displacement coverage from compact 28cc units up to high-flow 200cc, including an impeller-equipped 200cc variant for higher self-priming speeds
• Proven across a broad range of equipment types, not just excavators — making it a practical choice if you're standardising pump selection across a mixed fleet

Displacement range: 28–200cc, rated to 320 bar continuous pressure.

Common applications: excavators, wheel loaders, crawler drills and pile drivers, cranes (crawler, rough terrain and truck-mounted), concrete pumps, crushers, asphalt pavers, forklifts, manlifts and fire engines, plus a range of agricultural, forestry and industrial machinery.

Need help selecting the right K3VL model or control configuration for your machine? Get in touch and our team will confirm fitment and controls, or source genuine parts if you're rebuilding an existing unit.
