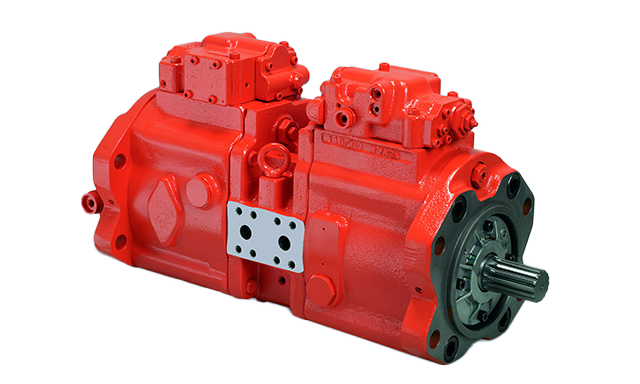

Kawasaki K5V Pump
Genuine KPM, Authorised NZ Support
As New Zealand's authorised distributor for Kawasaki (KPM) hydraulic components, FPD supplies and supports the K5V range — variable-displacement axial piston pumps of swash-plate design, engineered for hydraulic excavators and other mobile machinery. K5V shares its proven design lineage with the K3V series but is rated for higher operating speeds across comparable displacements, making it a common fit for excavator models specified with faster-running engines and pump drives.
Why K5V
- High power density — strong output from a compact frame size, simplifying installation in tight engine bays
- Higher rated speeds than equivalent K3V frame sizes (e.g. K5V80 running to 3,000 min⁻¹), suited to machines with faster pump drive requirements
- Strong self-priming/suction performance, supporting stable flow and reduced cavitation risk under hard, cyclical loads
- Decades of proven reliability across excavators, cranes, drills and crushers worldwide
- Broad control options — power, pressure and displacement controls available to match your machine's existing system
- Flexible configuration — single, tandem and parallel versions for straightforward fitment across a range of machines
Displacement range: 80–214cc, rated to 350 bar continuous pressure — spanning mid-size through heavy-duty excavator classes.
Common applications: excavators, wheel loaders, crawler drills and pile drivers, cranes (crawler and rough terrain), crushers, and concrete pumps.
Need help matching a K5V pump to your machine, or sourcing genuine parts for a rebuild? Get in touch and our team will confirm the right model, controls and fitment for your application.
| Pump Type | Displacement (cm3) | Pressure Rating (MPa) | Max Speed (min-1) | Max Input Torque of Tandem Pump (Nm) | Mass (Single) (kg) |
| K5V80 | 80 | 34.3 | 3000 | 529 | 48 |
| K5V140 | 140 | 34.3 | 2500 | 843 | 68 |
| K5V160 | 160 | 34.3 | 2350 | 1120 | 86 |
| K5V200 | 200 | 34.3 | 2200 | 1120 | 86 |
| K5V212 | 214 | 34.3 | 2000 |
