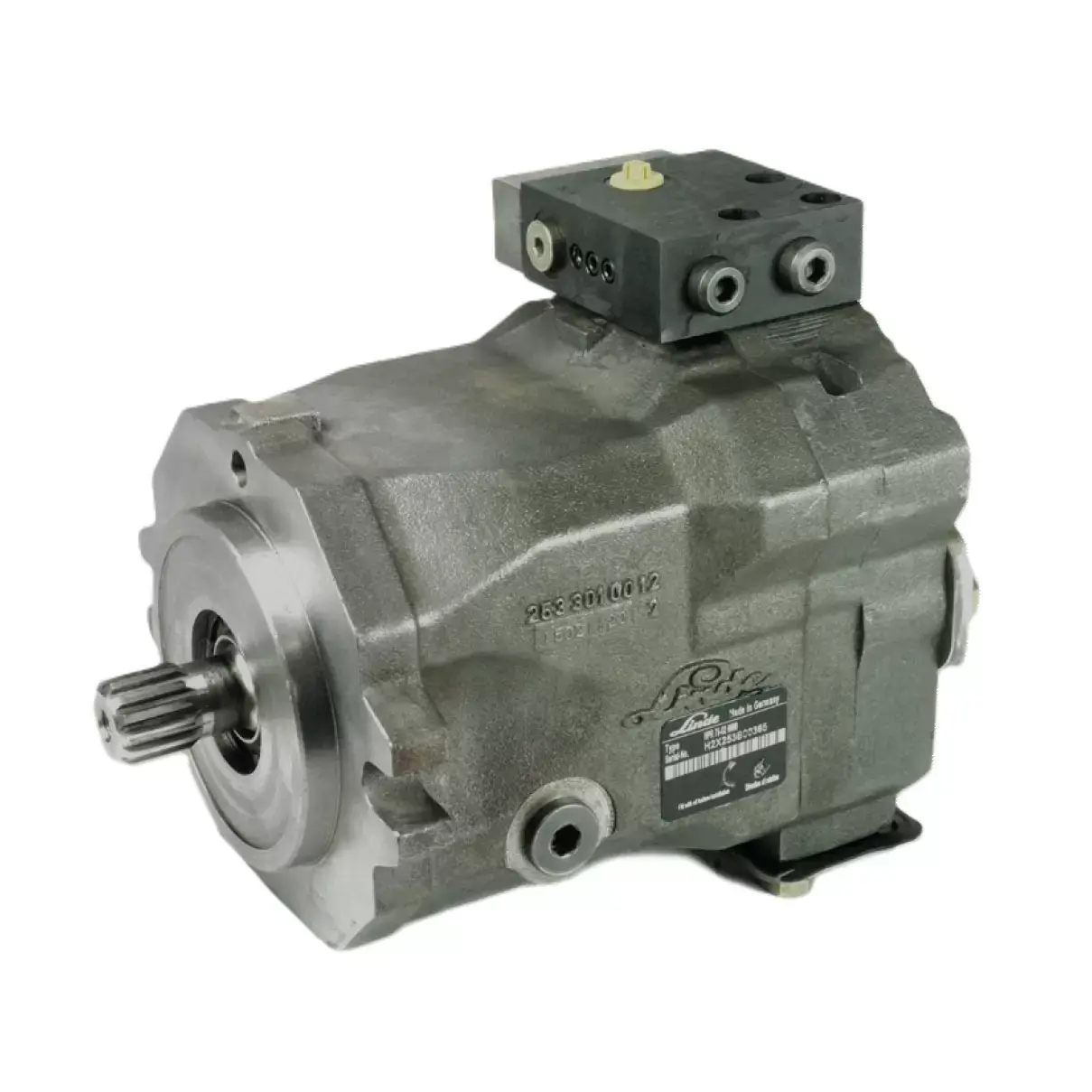

Linde HPR-02 Piston Pump

Linde HPR-02 Piston Pump

The Linde HPR-02 is a high-pressure axial piston pump engineered for open loop hydraulic systems, built for demanding mobile and industrial applications. Featuring Linde's load-sensing technology and a robust swash plate design, the HPR-02 delivers precise, energy-efficient "flow on demand" control with excellent suction performance and long service life. Available across ten rated sizes, it's suited to construction, agricultural, and industrial machinery requiring reliable, high-power hydraulic drive.

Key Specifications

• Rated sizes: 55, 75, 105, 135, 165, 210, 280, 105D, 125D, 165D
• Max. displacement: 55–331.2 cc/rev (across rated size range)
• Max. operating speed: 2,000–2,700 rpm (without tank pressurisation)
• Max. oil flow: 148.5–695.5 l/min
• Nominal pressure: 380–420 bar
• Max. pressure: 420–500 bar
• Max. input torque: 368–1,964 Nm
• Corner power (theoretical): 104.0–431.8 kW
• Weight (without oil): 39–177 kg
• Clockwise or counter-clockwise rotation available
• SAE high pressure ports; SAE mounting flange with ANSI or SAE spline shaft
• Optional tandem and multiple pump configurations
• Compatible with Linde LSC-directional control valves and LinTronic
• Adaptive SPU noise optimisation reduces pressure pulsation by up to 70%
• Available controllers: LS, LP, E1L, H1L, TL2, LEP, ETP
