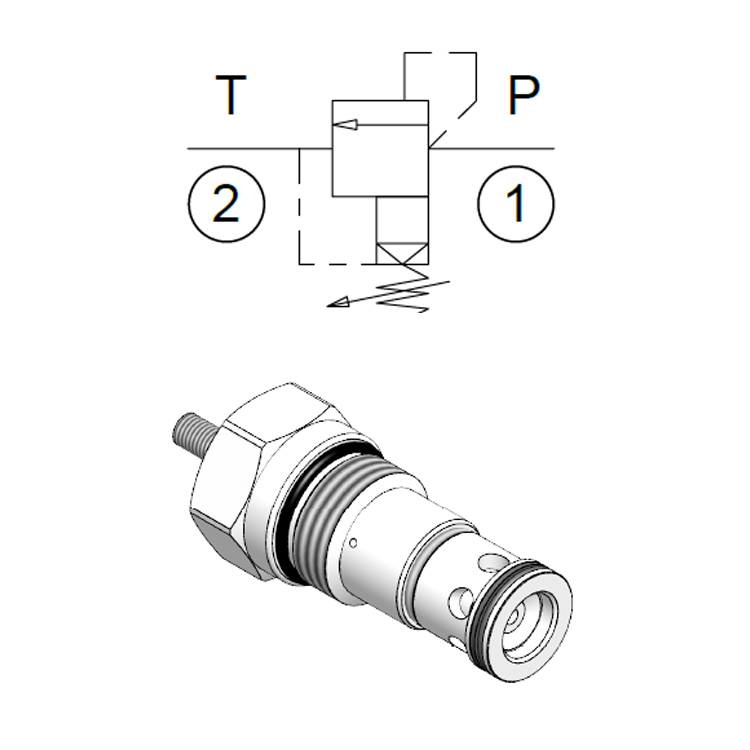

Pilot Operated Relief Valve (Cartridge)

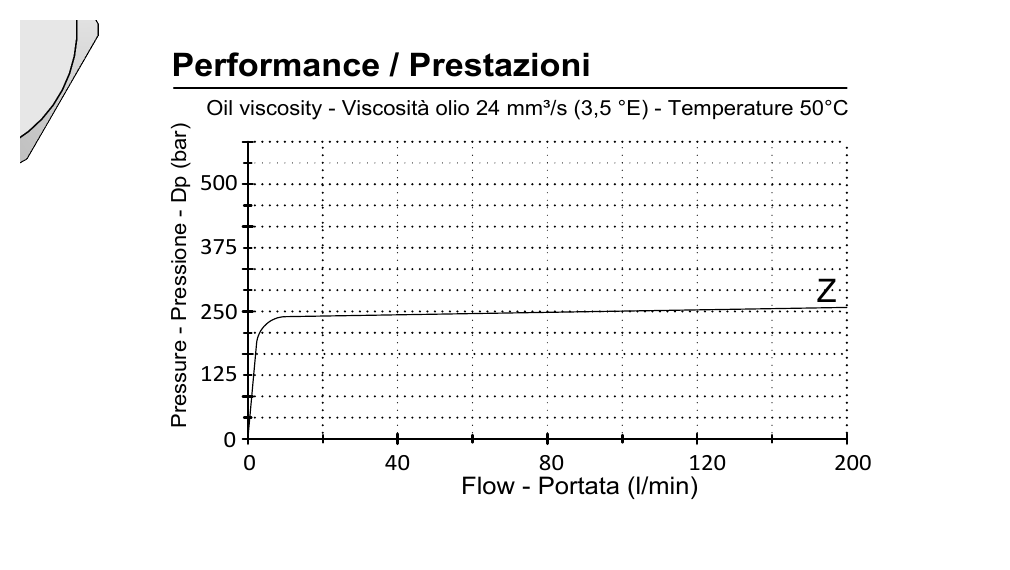

Pilot operated (indirect acting) cartridge relief valve rated to 200 l/min — by far the highest flow capacity in the Renman relief valve range. The pilot operating principle delivers a much flatter pressure-versus-flow characteristic than a direct acting valve, keeping cracking pressure overshoot low and maintaining consistent set-pressure accuracy even at high flow rates.
It installs into a standard M33x2 cavity in a manifold block, and is the natural choice for main-line system relief in high-capacity power units and mobile plant hydraulic circuits.
Key Specifications
- Type: Pilot operated (indirect acting) cartridge relief valve
- Thread: M33x2
- Max. pressure: 250 bar
- Max. flow: 200 l/min
- Setting range: Z: 40–250 bar (std 150 bar)
- Cavity code: DO-590.200.00.33
- Adjustment: Socket screw (standard) | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) — no Viton listed
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
| Thread (P) | Cavity Code | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| M33x2 | DO-590.200.00.33 | 250 | 200 | Z: 40-250 bar | 150 |
