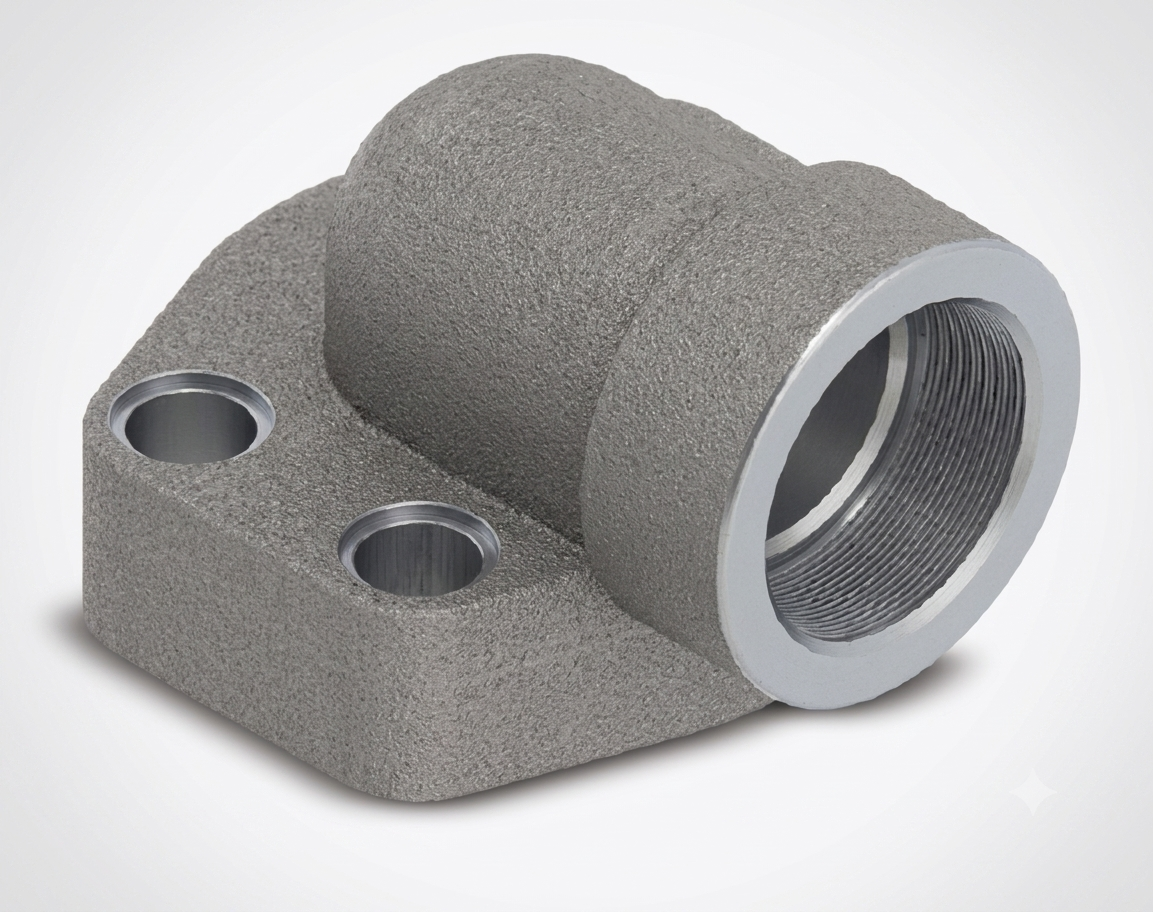

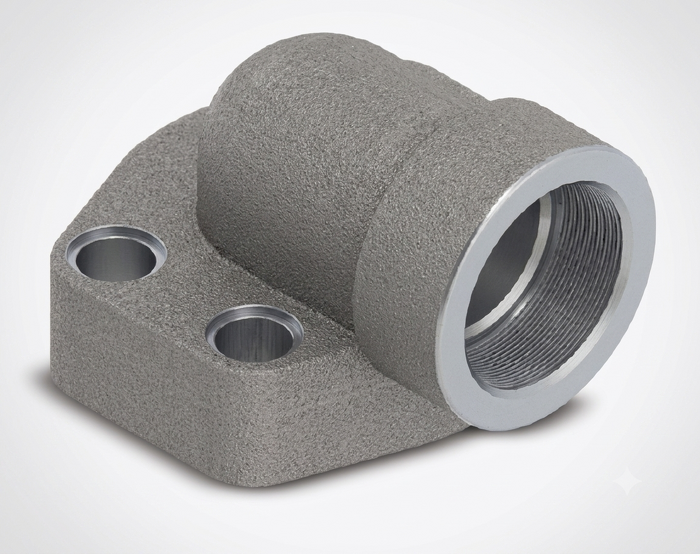

Port Adaptor SAE Pipe Threaded 90° Flange Mounting
A 90° SAE elbow adaptor for applications where line routing demands a right-angle turn at the pump port. The SAED series uses BSP external pipe thread with an O-ring seal, and is available in both 3000 PSI and 6000 PSI pressure ratings. Compact construction suits mobile plant and tight-clearance installations.
- SAE Code 61 (3000 PSI) series and SAE 62 (6000 PSI) series
- 90° elbow, BSP pipe thread with O-ring seal
- Thread sizes: R 1/2" to R 2"
- Bolt thread: M8 to M12 (3000 PSI) | M8 to M20 (6000 PSI)
- Suited to pumps, motors, and manifolds in space-constrained installations
| SAE_SERIES | A | B | C | D | E | M | O-RING |
| SAE 3000 PSI | R 1/2" | 13 | 38.1 | 54 | 17.48 | M 8x30 | 18.66X3.53 |
| SAE 3000 PSI | R 3/4" | 19 | 47.63 | 65 | 22.23 | M 10x35 | 25X3.53 |
| SAE 3000 PSI | R 1" | 25 | 52.37 | 70 | 26.19 | M 10x35 | 32.92X3.53 |
| SAE 3000 PSI | R 1-1/4" | 32 | 58.72 | 79 | 30.18 | M 10x40 | 37.7X3.53 |
| SAE 3000 PSI | R 1-1/2" | 38 | 69.85 | 93 | 35.71 | M 12x45 | 47.22X3.53 |
| SAE 3000 PSI | R 2" | 51 | 77.77 | 110 | 42.88 | M 12x45 | 56.75X3.53 |
| SAE 6000 PSI | R 1/2" | 13 | 40.49 | 54 | 18.24 | M 8x30 | 18.66X3.53 |
| SAE 6000 PSI | R 3/4" | 19 | 50.8 | 70 | 23.8 | M 10x35 | 25X3.53 |
| SAE 6000 PSI | R 1" | 25 | 57.15 | 79 | 27.76 | M 12x45 | 32.92X3.53 |
| SAE 6000 PSI | R 1-1/4" | 32 | 66.68 | 93 | 31.75 | M 14x50 | 37.7X3.53 |
| SAE 6000 PSI | R 1-1/2" | 38 | 79.38 | 110 | 36.5 | M 16x50 | 47.22X3.53 |
| SAE 6000 PSI | R 2" | 51 | 96.82 | 134 | 44.5 | M 20x110 | 56.75X3.53 |
