Port Adaptor Straight Flange Mounting Pipe Threaded Steel

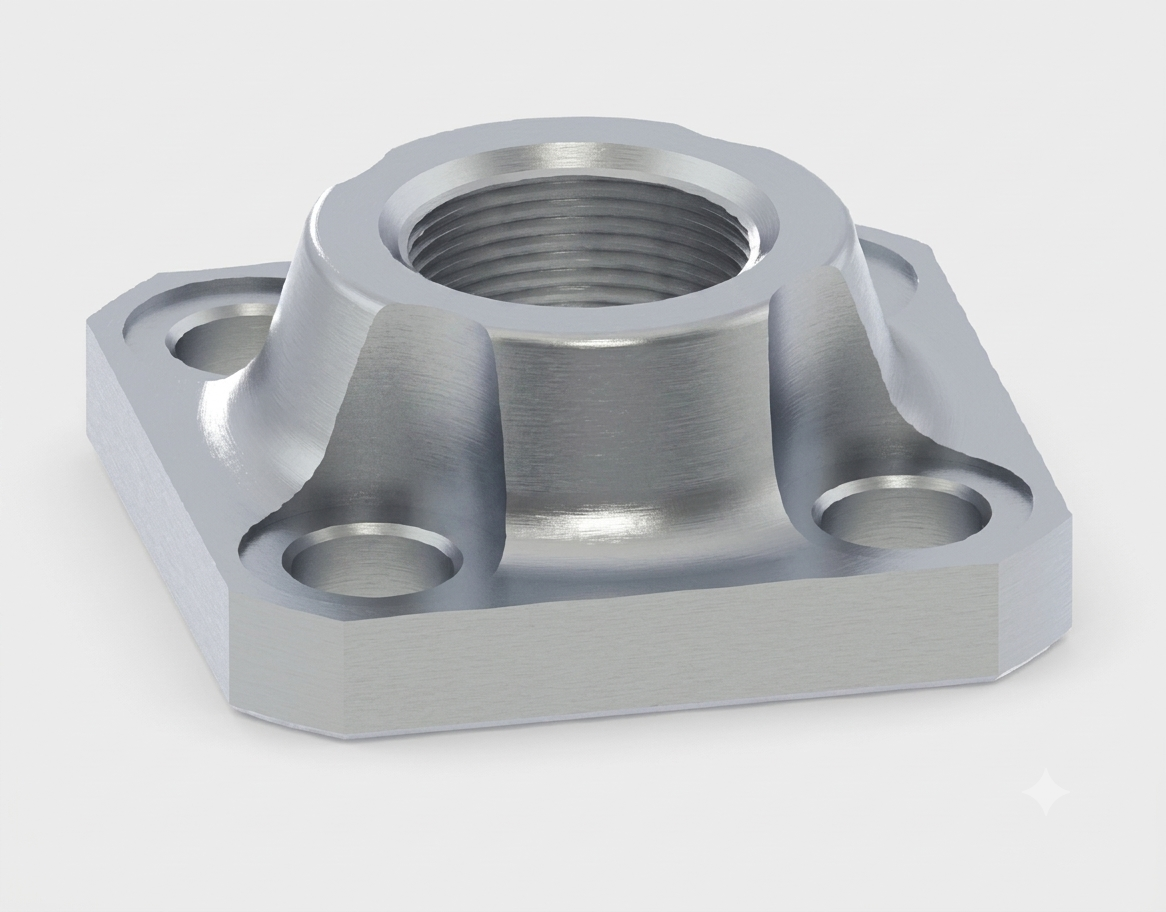

A solid, reliable connection point for hydraulic pump ports. The EDZA straight flange adaptor mounts flush to SAE-pattern pump ports with BSP (R) pipe thread inlet, sealing via a precision O-ring to eliminate leaks under pressure. Machined from steel and Design-registered, these are the go-to adaptors for clean, space-efficient straight-through plumbing.
- Thread sizes: R 1/4" to R 1"
- Mounting bolt thread: M6 to M12
- O-ring sealed for reliable, leak-free installation
- Euro & German Standard PCD mounting

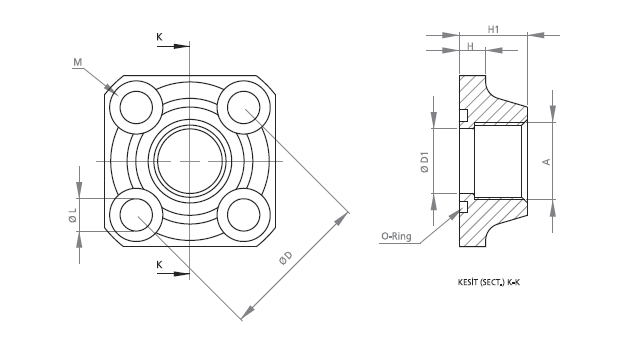

| A | D | D1 | H | H1 | L | M | O-RING |
| R 1/4" | 26 | 10 | 7 | 18 | 6.5 | M 6X16 | 13.1X2.62 |
| R 1/4" | 28 | 10 | 7 | 18 | 6.5 | M 6X16 | 13.1X2.62 |
| R 3/8" | 30 | 12 | 7 | 18 | 6.5 | M 6X16 | 15.88X2.62 |
| R 3/8" | 35 | 13 | 7 | 18 | 6.5 | M 6X16 | 18.72X2.62 |
| R 1/2" | 40 | 17 | 7 | 18 | 6.5 | M 6X20 | 22X3 |
| R 1/2" | 40 | 17 | 7 | 18 | 8.5 | M 8X20 | 22X3 |
| R 3/4" | 48 | 22 | 7 | 22 | 8.5 | M 8X20 | 29X3 |
| R 3/4" | 51 | 22 | 7 | 22 | 10.5 | M 10X25 | 29X3 |
| R 1" | 56 | 28 | 7 | 22 | 10.5 | M 10X25 | 34X3 |
| R 1" | 62.5 | 28 | 10 | 28 | 13 | M 12X25 | 38X3 |
| R 1" | 72.5 | 28 | 10 | 28 | 13 | M 12X25 | 38X3 |
