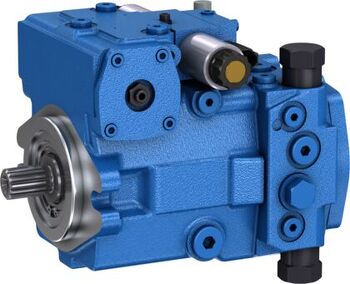

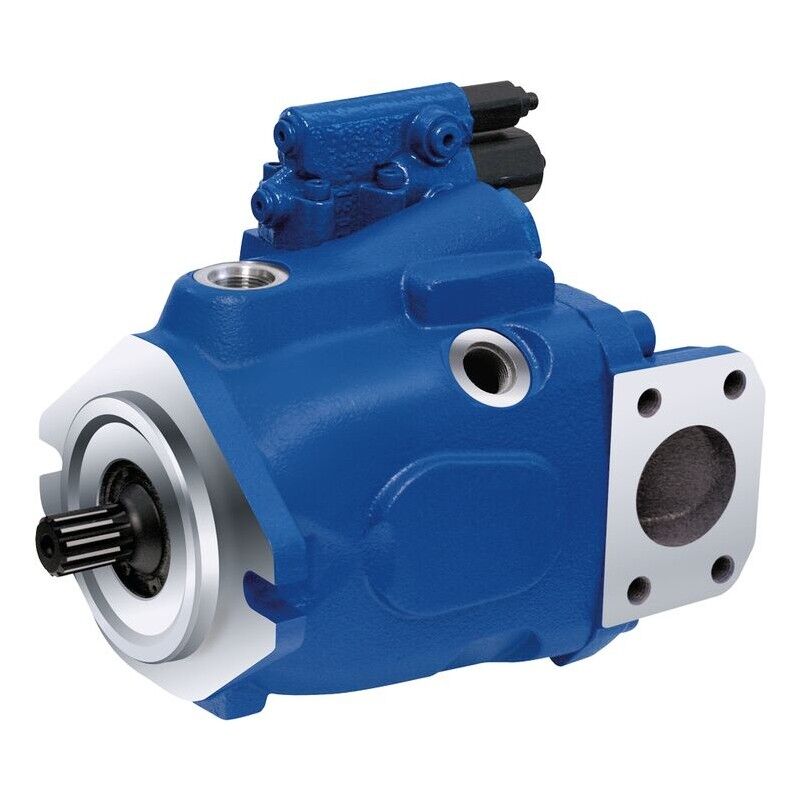

Rexroth A10V Pump
The A10V is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.
- Approved for high speeds
- Low operating noise - Engineered for quiet operation, even at high speeds and pressures
- Controls with short response times
- High power density
- Variable Displacement: Infinitely variable flow via swashplate adjustment—only provide the oil your system actually needs
The A10V series is designed for medium-pressure duty cycles. While specific series variations exist, the standard ratings are:
- Nominal Pressure: 280 bar (4000 psi)
- Maximum Pressure: 350 bar (5100 psi)
- Minimum Inlet Pressure: 0.8 bar absolute (to prevent cavitation)
- Versatile Controls: Available with DR (Pressure Control), DFR/DFR1 (Load Sensing), and ED (Electro-hydraulic) modules to fit any automation setup
Our range includes all standard frame sizes to meet your specific torque and flow requirements. From the compact Size 10 to the high-output Size 180, these pumps deliver consistent power under pressure.
We supply: A10VG, A10VNO, A10VO, A10VSO, and A10VZ
| Displacement (cm3) | Max Speed (rpm) | Max. Flow (l/min) | Max. Power (KW) | Weight (kg) |
| 10.5 | 3600 | 38 | 18 | 8 |
| 18 | 3300 | 59 | 28 | 12 |
| 28 | 3000 | 84 | 40 | 15 |
| 45 | 2600 | 117 | 55 | 21 |
| 60 | 2700 | 162 | 76 | 28 |
| 71 | 2550 | 181 | 85 | 33 |
| 85 | 2500 | 213 | 100 | 45 |
| 100 | 2000 | 200 | 94 | 45 |
| 140 | 1800 | 252 | 119 | 60 |
| 180 | 1800 | 324 | 153 | 77 |
