Stauff SF Series - High Pressure 420 Bar

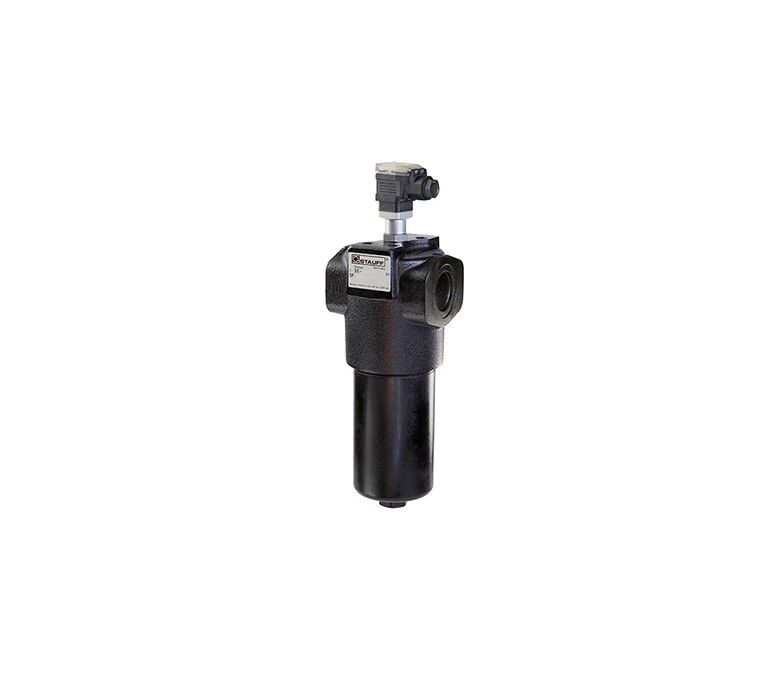

STAUFF High Pressure Filters type SF are designed for in-line hydraulic and lubrication applications, with a maximum operating pressure of 420 bar / 6.000 PSI and nominal flow rates up to 1,135 l/min.. Used together with STAUFF SE series Filter Elements, a high efficiency of contaminant removal is assured. The high dirt-hold capacity of the elements ensures long service life and, as a result, reduced maintenance costs.
| Item Designation | STAUFF Item No. | Item description |
| Bowl-SBA-014-ASSY | 1020016297 | 60L Filter Bowl Med. Pressure |
| Bowl-SBA-030-ASSY | 1020016298 | 110L Filter Bowl Med. Pressure |
| Bowl-SBA-045-ASSY | 1020016299 | 160L Filter Bowl Med. Pressure |
| Bowl-SBA-070-ASSY | 1020016300 | 240L Filter Bowl Med. Pressure |
| Head-SH-014/030-T-U12-U/4 | 6100149016 | Filter Head 1 1/16" Unc |
| Head-SH-045/070-T-C320U-W2/2-M02 | 1010001016 | Filter Head 1.1/4" Sae Flange Code 61 |
| Head-SH-045/070-T-U20-U/4 | 6100163034 | Filter Head |
| Head-SHA-014/030-T-G12-M-ASSY | 1030016270 | Filter Head Med. Pressure 3/4" Bsp (Bgr) |
| Seal-kit-SF-014/030-B | 1020004544 | Seal Kit |
| Seal-kit-SF-014/030-V | 1020004545 | Seal Kit |
| Seal-kit-SF-045/070-B | 1020004546 | Seal Kit |
| Seal-kit-SF-090/160-B | 1020004548 | Filter Bowl Seal Kit |
| SF-014-G-05-B-T-G12-IB-P024/4 | 6100148890 | High Pressure Filter Housing 60l/min Inorganic Glass Fibre 25 Bar Micron Rating: 5um NBR T Style Connection Thread: 3/4 BSP Bypass Valve w/ Visual-electrical Clogging indicator |
| SF-014-G-10-B-T-G12-IB-A/4 | 6100148874 | High Pressure Filter Housing 60l/min Inorganic Glass Fibre 25 Bar Micron Rating: 10um NBR T Style Connection Thread: 3/4 BSP Bypass Valve w/ Visual Clogging indicator |
| SF-014-G-10-B-T-G12-IB-P024/4 | 6100148872 | High Pressure Filter Housing 60l/min Inorganic Glass Fibre 25 Bar Micron Rating: 10um NBR T Style Connection Thread: 3/4 BSP Bypass Valve w/ Visual-electrical Clogging indicator |
| SF-014-O-O-B-T-G12-B-A | 1010000405 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-014-O-O-B-T-G12-IB-E/4 | 6100148819 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-014-O-O-B-T-G12-IB-V/4 | 6100148821 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-014-O-O-B-T-G12-IB/4 | 6100148817 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-014-O-O-B-T-G12-IO/4 | 6100148899 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-014-O-O-B-T-G12-R-V | 1010021519 | 60L Press. Filter-Reverse Flow Valve |
| SF-014-O-O-V-T-G12-IB/4 | 6100148834 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-030-G-03-B-T-G12-B-V | 1010021523 | Filter, Press. Assy. 110L Incl. G03B Element |
| SF-030-G-10-B-T-G12-IB-A/4 | 6100148878 | High Pressure Filter Housing 110l/min Inorganic Glass Fibre 25 Bar Micron Rating: 10um NBR T Style Connection Thread: 3/4 BSP Bypass Valve w/ Visua Clogging indicator |
| SF-030-G-10-B-T-G12-IB-P024/4 | 6100148882 | High Pressure Filter Housing 110l/min Inorganic Glass Fibre 25 Bar Micron Rating: 10um NBR T Style Connection Thread: 3/4 BSP Bypass Valve w/ Visual-electrical Clogging indicator |
| SF-030-G-10-B-T-G12-IB-V/4 | 6100148868 | High Pressure Filter Housing 110 l/min / 30 US GPM Inorganic Glass Fibre 25 Bar Micron Rating: 10 NBR T Style Connection Thread: 3/4 Integrated Bypass Valve w/ Visual Manual Rest Clogging |
| SF-030-G-10-B-T-G12-IB/4 | 6100148873 | High Pressure Filter Housing 110l/min Inorganic Glass Fibre 25 Bar Micron Rating: 10um NBR T Style Connection Thread: 3/4 BSP with Bypass Valve |
| SF-030-G-10-B-T-G12-M-V | 1010021527 | Filter, Press. Assy. 110L Incl. G10B Element |
| SF-030-H-10-B-T-G12-R-V | 1010021530 | Filter, Press. Assy. 110L Incl. H10B Element |
| SF-030-O-O-B-T-G12-IB-A/4 | 6100148826 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-030-O-O-B-T-G12-IB/4 | 6100148824 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-030-O-O-B-T-G12-IO/4 | 6100148901 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-030-O-O-B-T-G12-M-O | 1010021532 | Filter, Press. Assy. 110L Excl. Element |
| SF-030-O-O-B-T-G12-R/4 | 6100148915 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-030-O-O-V-T-G12-IB/4 | 6100148870 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-030-O-O-V-T-G12-IO/4 | 6100148904 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-045-H-20-B-TH-G20-O-V | 1010002826 | 160L Press. Filter Incl.H20B Element,No Bypass,Visual Ind. |
| SF-045-O-O-B-T-G20-IB/4 | 6100162950 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-045-O-O-B-T-G20-IO/4 | 6100162997 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-045-O-O-B-TH-G20-B-PT024 | 1010002871 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-070-G-10-B-T-G20-B-O | 1010000726 | 240L Press. Filter Incl. G10B Element |
| SF-070-G-10-B-T-U20-B-VT | 1010021549 | 240L Press. Filter Incl. G10B Element |
| SF-070-O-O-B-T-G20-IB/4 | 6100162951 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-070-O-O-B-T-U20 | 1010000519 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-G-10-B-T-G24-B-V | 1010002543 | 330L Press. Filter Including Element |
| SF-090-O-O-B-T-G24 | 1010000650 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-B-T-G24-B-A | 1010000651 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-B-T-G24-B-E | 1010000652 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-B-T-G24-IB/4 | 6100169000 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-B-T-G24-M-V | 1010002705 | 330L Press. Filter-Multi Function Valve |
| SF-090-O-O-B-T-G24-O-E | 1010000458 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-B-T-G24-O-V | 1010000463 | 330L Press. Filter-No Valve |
| SF-090-O-O-B-T-G24-R-O | 1010000402 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-B-T-G24-R-V | 1010000418 | 330L Press. Filter-Reverse Flow Valve |
| SF-090-O-O-V-T-G24 | 1010000659 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-090-O-O-V-TH-G24-B-V | 1010002576 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-G-10-B-T-G24 | 1010000679 | 660L Press.Filter Incl. G10B Element |
| SF-160-G-10-B-T-G24-B-V | 1010002570 | 660L Press. Filter Incl. G10B Element |
| SF-160-H-10-B-T-G24-O-A | 1010000971 | Filter,Press. Assy. 660L Incl. Element |
| SF-160-O-O-B-T-C624M-B | 1010021707 | 660L Press. Filter Excluding Element |
| SF-160-O-O-B-T-C624U-B | 1010001072 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-C624U-B-E | 1010000792 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-C624U-B-V | 1010000465 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-G24-B | 1010000532 | 660L Press. Filter Excluding Element |
| SF-160-O-O-B-T-G24-B-E | 1010000660 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-G24-B-ET | 1010000661 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-G24-B-P024 | 1010000734 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-G24-B-V | 1010000480 | 660L Press. Filter-Bypass Valve |
| SF-160-O-O-B-T-G24-M-A | 1010000775 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-G24-O-A | 1010000457 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-B-T-G24-O-V | 1010000666 | 660L Press. Filter-No Valve |
| SF-160-O-O-B-T-G24-R-A | 1010000445 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-160-O-O-V-T-G24-B-P024 | 1010002427 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-250-O-O-B-T-G24-B-V-TL | 1010002305 | 1000L Press. Filter-Bypass Valve |
| SF-300-O-O-B-T-C624M-B-V-TL | 1010020766 | 1200L Press. Filter-Bypass Valve |
| SF-300-O-O-B-T-G24-B-O-TL | 1010003002 | High Pressure Filter Housing Working Pressure <420 bar |
| SF-300-O-O-B-T-G24-B-V-TL | 1010002306 | 1200L Press. Filter-Bypass Valve |
| SF-TM-070-O-O-B-B | 1010002730 | 240L Press. Filter Excl. Element |
| SFZ-008-O-O-B-B-O-L | 1010002796 | 30L Sandwich Press Filter Excluding Element |
| SFZ-008-O-O-B-B-O-R | 1010002644 | 30L Sandwich Press Filter Excluding Element |
| Valve-HVB-014/030/2 | 1020008811 | Filter Bypass Valve,Threaded |
| Valve-HVB-045/070/2 | 1020008812 | Filter Bypass Valve,Threaded |
| Valve-HVB-090/160/2 | 1020008813 | Filter Bypass Valve,Threaded |
| Valve-HVM-014/030/2 | 1020008816 | Filter Multi Function Valve,Threaded |
| Valve-HVM-045/070/2 | 1020008817 | Filter Multi Function Valve,Threaded |
| Valve-HVM-090/160/2 | 1020008818 | Filter Multi Function Valve,Threaded |
| Valve-HVR-014/030/2 | 1020008822 | Filter Reverse Flow Valve,Threaded |
| Valve-HVR-045/070/2 | 1020008823 | Filter Reverse Flow Valve,Threaded |
| Valve-HVR-090/160/2 | 1020008807 | Filter Reverse Flow Valve,Threaded |
