Stauff SFA Series - Medium Pressure 160 Bar
Contamination in a hydraulic pressure line doesn't give you warning — it just destroys pumps, valves, and actuators. The STAUFF SFA series puts high-efficiency inline filtration exactly where it's needed: on the pressure line, ahead of sensitive components, at up to 160 bar / 2320 PSI.

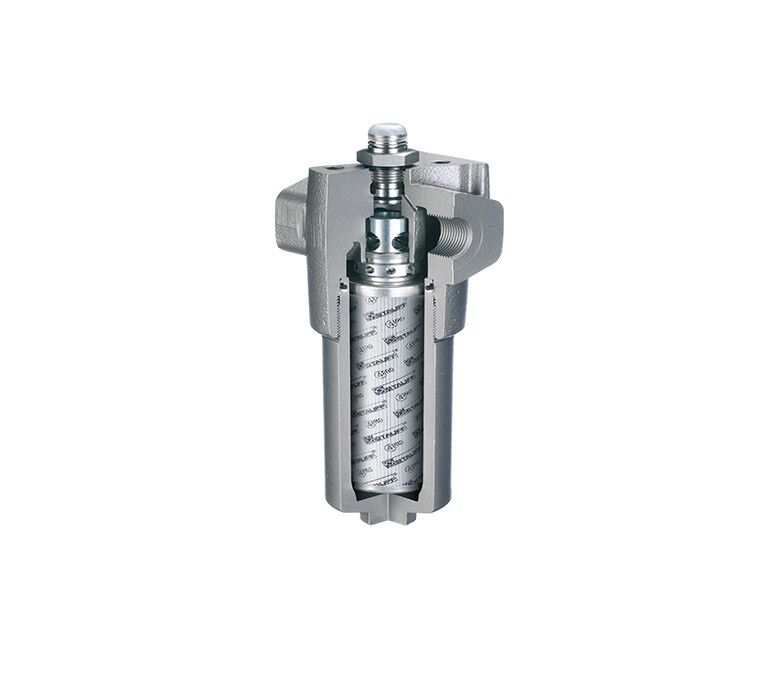

The SFA is an aluminium-bodied inline filter housing designed for straightforward line installation. Four housing sizes cover nominal flow rates from 60 to 240 l/min, with BSP, NPT, SAE O-ring, and SAE 3000 PSI flange port options to suit your circuit. Paired with STAUFF SE series filter elements — available in 3, 5, 10, 20, and 25 micron ratings — the SFA delivers consistent, high-efficiency particulate removal with a dirt-holding capacity that keeps service intervals long and maintenance costs down.
The head accepts optional integrated valves (bypass, reverse flow, check, or multifunction) as well as optical, electrical, or combined optical-electrical clogging indicators, so you can configure the housing for your monitoring requirements without adding external components.
| Item Designation | Stauff Item No. | Item Description |
| SFA-014-O-O-B-T-G12-B | 1010002549 | Medium Pressure Filter Housing Working Pressure <150 bar |
| SFA-014-O-O-B-T-G12-B-A | 1010002550 | Medium Pressure Filter Housing Working Pressure <160 bar |
| SFA-014-O-O-B-T-G12-B-P024 | 1010002955 | Medium Pressure Filter Housing Working Pressure <150 bar |
| SFA-014-O-O-B-T-G12-B-V | 1010003014 | 60L Med. Press. Filter |
| SFA-014-O-O-B-T-G12-O-V | 1010021487 | 60L Med. Press. Filter |
| SFA-030-O-O-B-T-G12-B | 1010002553 | 110L Med. Press. Filter |
| SFA-030-O-O-B-T-G12-B-A | 1010002554 | Medium Pressure Filter Housing Working Pressure <150 bar |
| SFA-030-O-O-B-T-G12-B-E | 1010002710 | Medium Pressure Filter Housing Working Pressure <150 bar |
| SFA-030-O-O-B-T-G12-B-V | 1010021489 | 110L Med. Press. Filter |
| SFA-030-O-O-B-T-G12-O-V | 1010021491 | 110L Med. Press. Filter |
| SFA-045-O-O-B-T-G20-B | 1010002557 | Med. Press. Filter |
| SFA-045-O-O-B-T-G20-B-V | 1010021493 | 160L Med. Press. Filter |
| SFA-045-O-O-B-T-G20-O-V | 1010021495 | 160L Med. Press. Filter |
| SFA-070-O-O-B-T-G20-B-O | 1010002561 | 240L Med. Press. Filter |
| SFA-070-O-O-B-T-G20-B-V | 1010002986 | 240L Med. Press. Filter |
| SMPF-015-O-O-B-T-G08-B | 1010001428 | Medium Pressure Filter Housing Working Pressure <110 bar |
| SMPF-015-O-O-B-T-G08-B-VE | 1010002821 | Medium Pressure Filter Housing Working Pressure <110 bar |
| SMPF-025-O-O-B-T-G08-B | 1010001429 | Medium Pressure Filter Housing Working Pressure <110 bar |
| SMPF-025-O-O-B-T-G08-B-VE | 1010002711 | Medium Pressure Filter Housing Working Pressure <110 bar |
