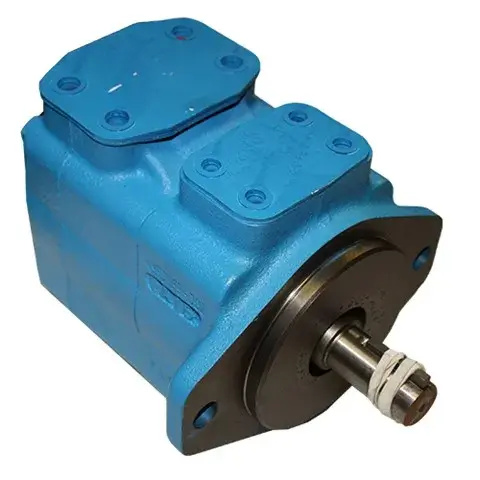

Vickers 35VQ Single Vane Pump
Vickers VQ pumps are designed to excel in the most demanding environments. By optimizing axial and radial clearances and maintaining a consistent lubricating oil film, these pumps offer:
- Superior Cold-Start Capability: Reliable performance even in low-temperature conditions.
- Seizure Resistance: Enhanced protection against internal wear for a longer service life.
- Maximum Efficiency: Optimized fluid dynamics that reduce energy loss and heat generation.
- Single or double pumps
- Through drive option
| Model | Displacement (cc/rev) | Max Pressure (bar) | Max Speed (rpm) | Pressure Port (Code 61) | Suction Port (Code 61) | Mount |
| 35VQ | 68 | 210 | 2500 | 1 1/4" | 2" | SAE C |
| 35VQ | 82 | 210 | 2500 | 1 1/4" | 2" | SAE C |
| 35VQ | 98 | 210 | 2500 | 1 1/4" | 2" | SAE C |
| 35VQ | 113 | 210 | 2400 | 1 1/4" | 2" | SAE C |
| 35VQ | 122 | 210 | 2400 | 1 1/4" | 2" | SAE C |
