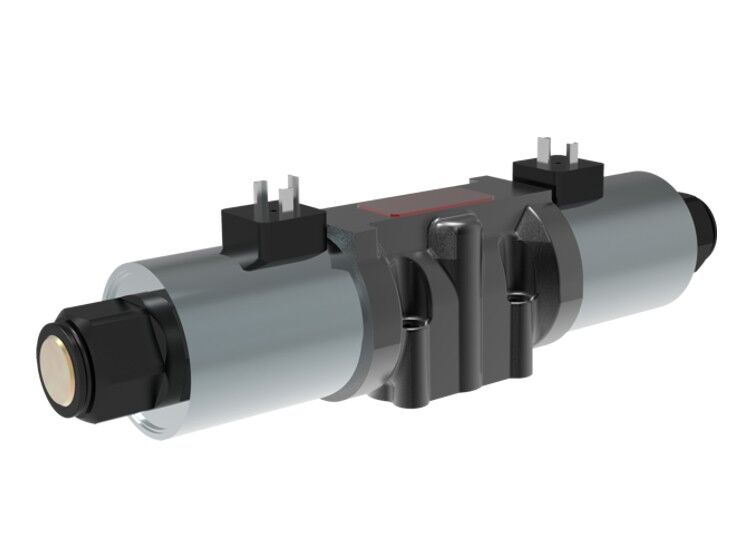

Argo-Hytos CETOP 5 Solenoid Operated Directional Control Valve
The RPE4-10 is a robust, direct-acting 4/2 and 4/3 directional control valve built for demanding hydraulic applications. Rated to 350 bar and 140 l/min, it handles high-power systems without sacrificing precision — making it a reliable choice for construction equipment, agricultural machinery, industrial plant, and mobile hydraulics.
Mounting to the ISO 4401 / CETOP 5 (D05) subplate interface keeps installation straightforward, and the five-chamber housing design minimises pressure drop while reducing sensitivity to fluid viscosity variation. DC solenoids are standard, with AC operation available via built-in rectifier. The coil rotates 360° for flexible installation in tight spaces.
A wide selection of interchangeable spools, manual overrides, and electrical terminal options make the RPE4-10 adaptable across a broad range of system configurations. Optional inductive spool position sensing and soft-shift speed control are available for applications requiring finer control or reduced switching shock.
Key specifications:
- Valve type: 4/2 and 4/3 directional control, solenoid operated
- Size: DN10 (CETOP 5 / D05)
- Max. flow: 140 l/min
- Max. pressure: 350 bar
- Mounting: Subplate to ISO 4401 / DIN 24340 (CETOP 05)
- Solenoid supply: DC standard; AC with integrated rectifier
- Corrosion protection: Zinc-coated steel, 240 h salt spray (enhanced 520 h mobile-grade option available)
