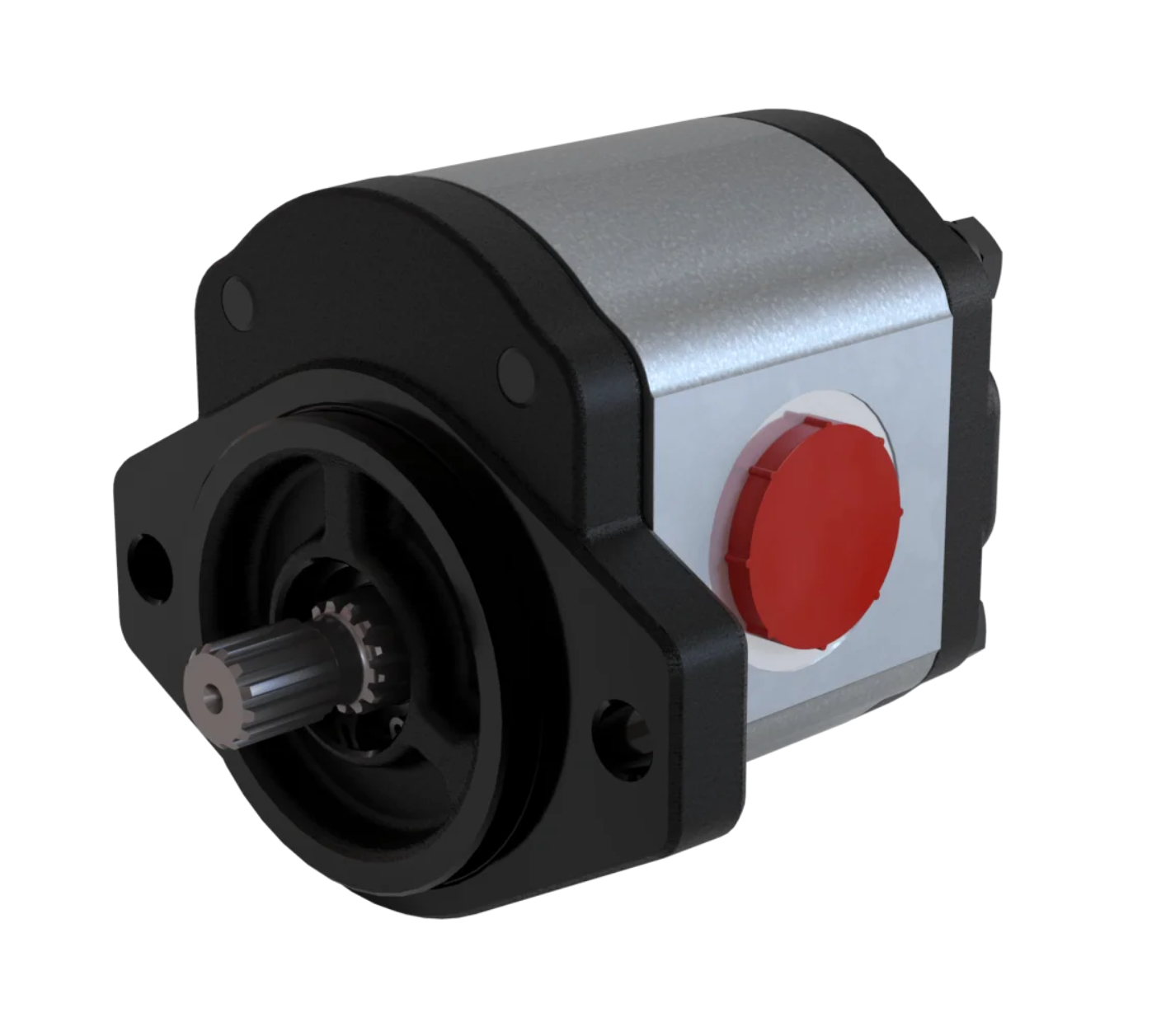

Blue Ascend Aluminium Body Helical Pump – Group 30
Model: APH30
The largest model in the silent series. Group 30 helical pumps cover 19.0 to 61.0 cc/rev, offering high-flow output with substantially reduced operating noise compared to standard gear designs. Suited to larger mobile plant, forestry equipment, and industrial applications where noise levels are a consideration.
Key Specifications:
- Gear type: Helical gear (silent series)
- Displacement range: 19.0 – 61.0 cc/rev
- Maximum pressure: up to 230 bar
- Maximum speed: up to 3,000 rpm
- Body: Aluminium
| Pump Type | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) |
| APH30.190 | 19,0 | 230 | 3000 |
| APH30.220 | 22,0 | 230 | 3000 |
| APH30.250 | 25,0 | 230 | 3000 |
| APH30.280 | 28,0 | 230 | 3000 |
| APH30.320 | 32,0 | 230 | 2750 |
| APH30.350 | 35,0 | 210 | 2750 |
| APH30.380 | 38,0 | 210 | 2750 |
| APH30.420 | 42,0 | 210 | 2750 |
| APH30.450 | 45,0 | 210 | 2500 |
| APH30.510 | 51,0 | 200 | 2250 |
| APH30.560 | 56,0 | 180 | 2000 |
| APH30.610 | 61,0 | 170 | 1750 |
